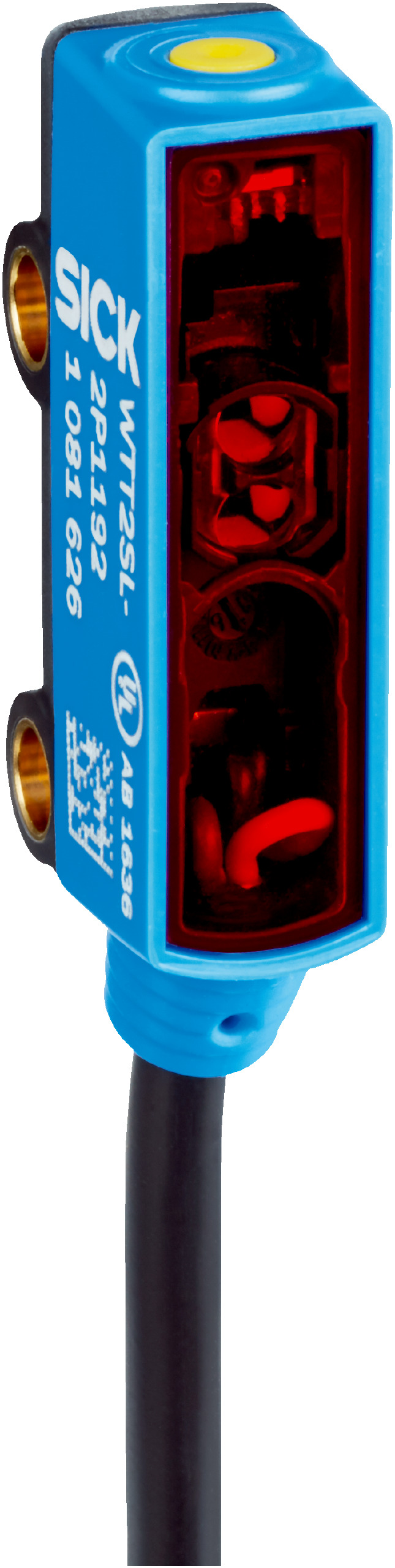

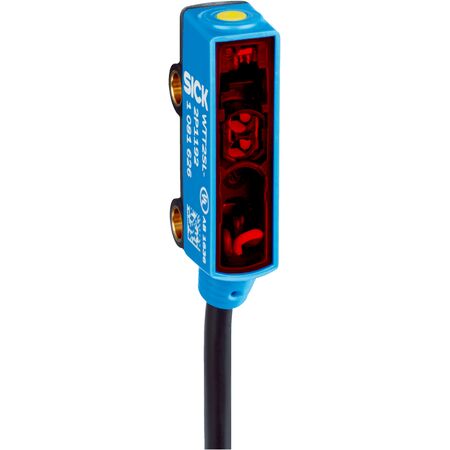

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | IP67 Rated | by SICK
The photoelectric proximity sensor WTT2SLC-2P3092B03 features advanced background suppression and optical time-of-flight technology, making it ideal for precise object detection in industrial automation. With a sensing range of 50 mm to 800 mm and a robust IP67 enclosure, it ensures reliable performance in challenging environments. Designed for easy installation, this sensor is perfect for applications requiring accurate distance measurement and low current consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 800 mm
- Repeatability: 2 mm to 5 mm
- Accuracy: ±20 mm
- Light source: Infrared laser, wavelength 940 nm, laser class 1
- Adjustment: Single teach-in button, IO-Link V1.1 communication interface
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching mode
- Output current max: ≤ 50 mA
- Response time: Typical 95 ms
- Switching frequency: 5 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS), Optics material: Plastic (PMMA)
- Connection type: Cable with JST connector, 300 mm length, cable diameter 3 mm, PVC material
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm to 800 mm
- Distance repeatability between 2 mm and 5 mm with ±20 mm accuracy
- Laser class 1 safety rating
- Single teach-in button and IO-Link communication interface
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +50°C
- Cable connection with JST connector and 300 mm cable length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor wiring and IO-Link communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Use in environments requiring precise distance measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption of 20 mA
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT2SLC-2P3092B03 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
