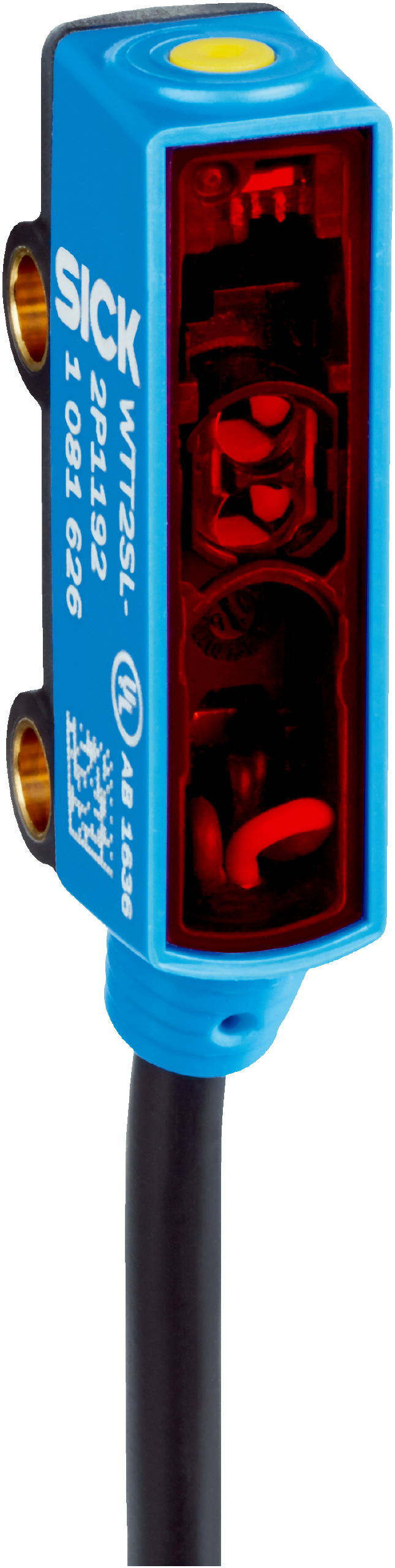

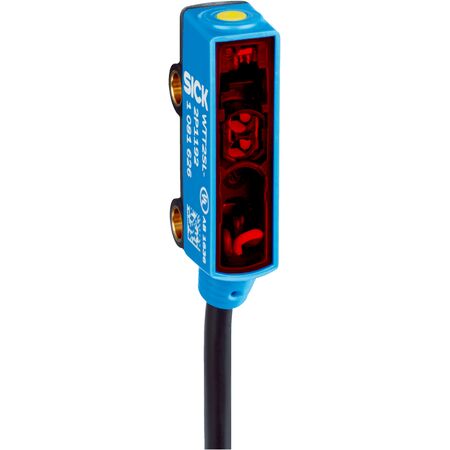

Photoelectric Proximity Sensor WTT2SL-2N3492S02 | Background Suppression | Optical Time-of-Flight | IP67 Rated | by SICK
The WTT2SL-2N3492S02 photoelectric proximity sensor is designed for precision in industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 800 mm and an IP67 rated enclosure, it excels in detecting small objects and ensuring reliable performance in challenging environments. Ideal for manufacturing processes, this sensor offers low power consumption and durable construction for extended lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 800 mm
- Light source: Infrared laser, wavelength 940 nm, laser class 1
- Light spot size: Ø 10 mm at 300 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, light/dark switching mode
- Output current max: ≤ 50 mA
- Response time: Typical 90 ms
- Switching frequency: 5 Hz
- Circuit protection: Types A, B, D
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS)
- Optics material: Plastic (PMMA)
- Connection: Cable with M12 male connector, 4-pin, cable diameter Ø 3 mm, PVC
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight principle
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm to 800 mm
- Laser class 1 with 940 nm wavelength
- Single teach-in button for easy adjustment
- Extended supply voltage range from 10 to 31.5 V DC with overvoltage protection up to 36 V DC for 5 seconds
- Pre-adjusted sensing range at 340 mm
- IP67 rated enclosure for dust and water protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Detecting small objects in industrial automation
- Background suppression sensing in manufacturing processes
- Optical time-of-flight measurement applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient infrared laser technology
- Durable IP67 housing reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT2SL-2N3492S02 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
