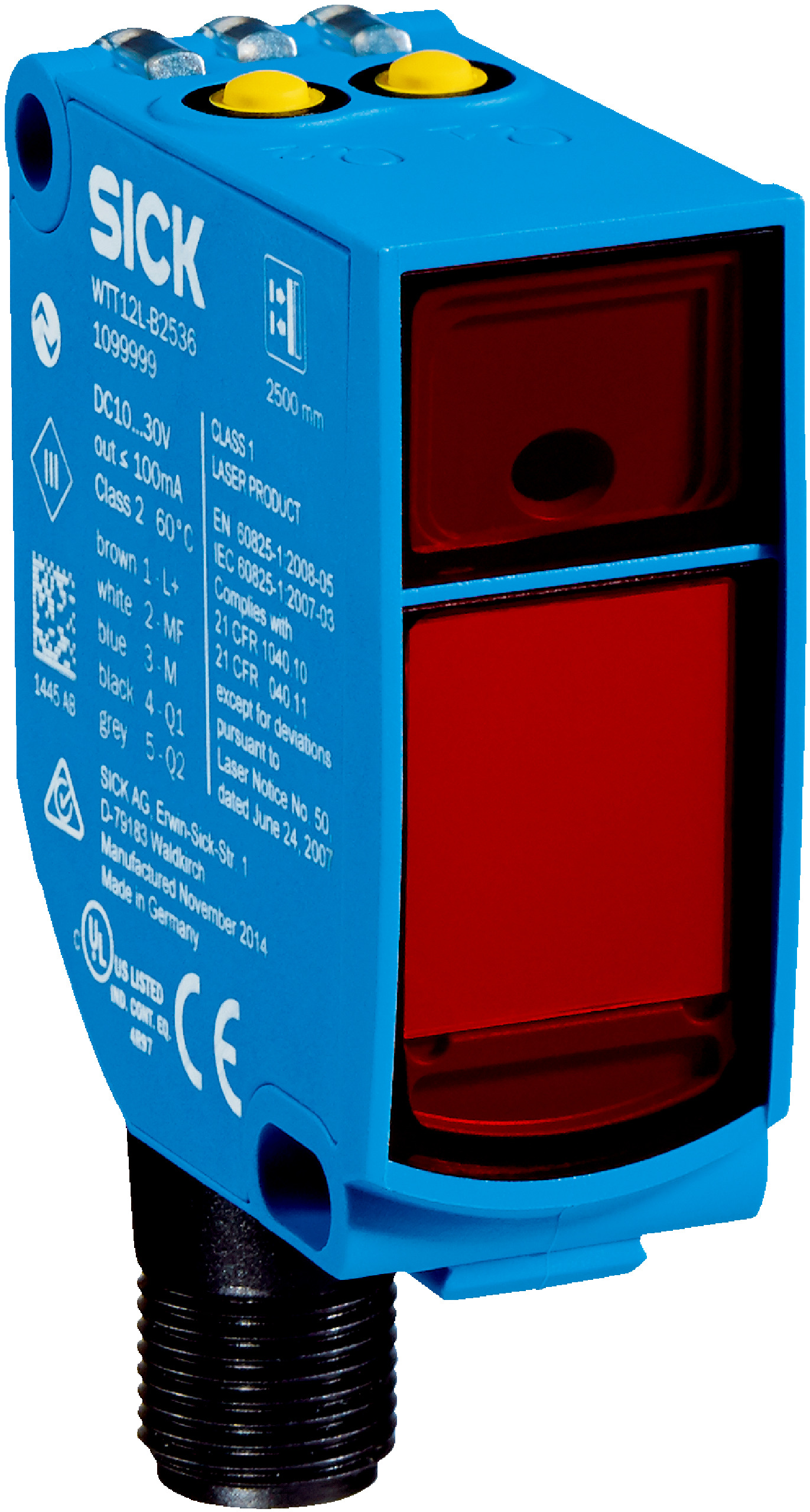

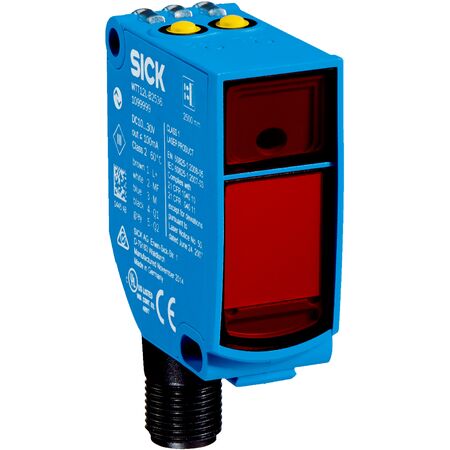

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTT12LC-B2593 features advanced background suppression and optical time-of-flight technology, making it ideal for industrial automation and safety applications. With a sensing range of 50 mm to 3,800 mm and a fast response time of ≤ 5 ms, this sensor ensures precise object detection and distance measurement. Its robust IP67 rated housing guarantees durability in harsh environments, making it a reliable choice for manufacturing processes and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 3,800 mm
- Light source: Infrared laser, wavelength 827 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching outputs: 2 push-pull (PNP/NPN), max output current ≤ 100 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Connection type: Plug, M12, 5-pin
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm up to 3,800 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button and IO-Link communication interface
- Two switching outputs with push-pull PNP/NPN configuration
- High protection rating of IP67 for harsh environments
- Fast response time of ≤ 5 ms and switching frequency of 100 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage range of 10 V DC to 30 V DC
- Durable IP67 rated housing reduces waste by extending product lifespan
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK WTT12LC-B2593 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
