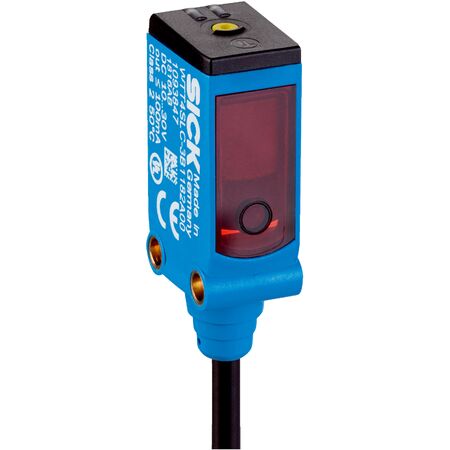

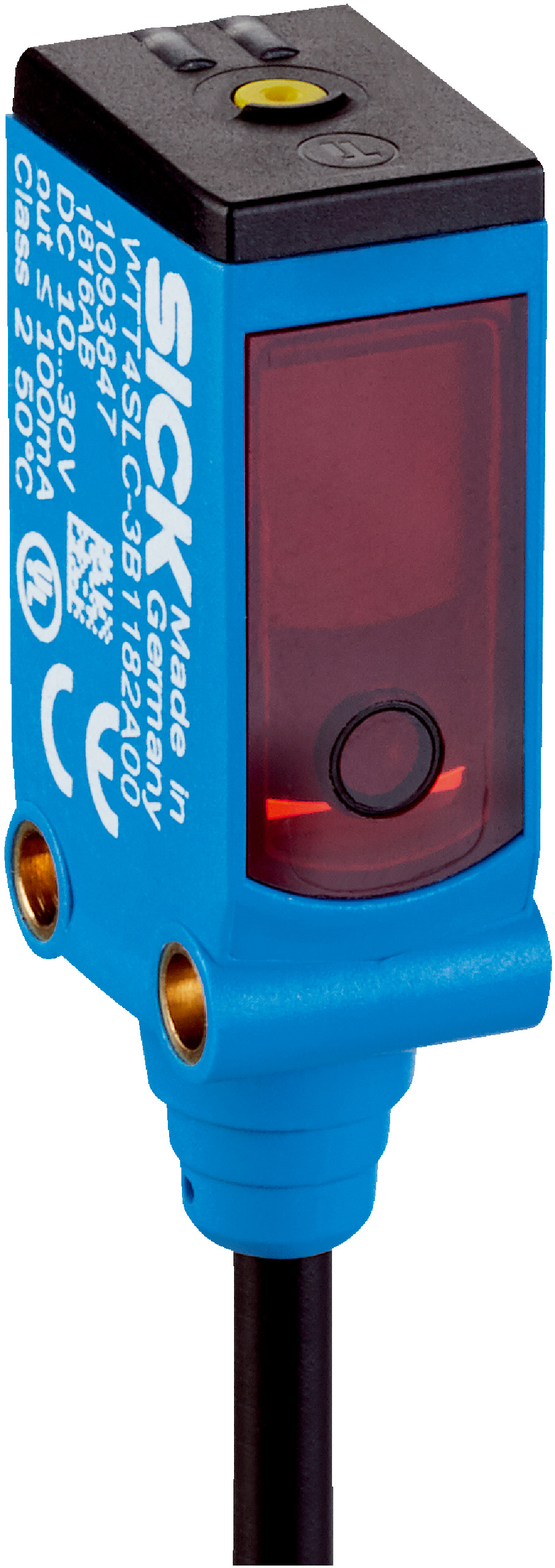

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | IP67 Rated | by SICK
The WTT4SLC-3B3432A00 photoelectric proximity sensor excels in industrial automation with its background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 1000 mm and a rapid 0.8 ms update rate via IO-Link, it ensures precise distance measurement. Ideal for robotics and quality control, this sensor operates in extreme temperatures from -40 °C to +50 °C, making it a reliable choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1000 mm
- Measuring range: 90 mm to 1000 mm
- Resolution: 1 mm
- Repeatability: 7.5 mm to 13 mm
- Accuracy: -10 mm to +80 mm
- Distance value output: Via IO-Link
- Update rate: 0.8 ms
- Light source: Visible red laser, 658 nm wavelength, Laser class 1
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Switching output: Push-pull PNP/NPN
- Output current max: ≤ 50 mA
- Response time: 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Housing material: Plastic (MABS, ABS)
- Connection type: Cable with M12 male connector, 4-pin, 197 mm length
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight principle
- Sensing range from 50 mm up to 1000 mm
- Distance value output via IO-Link with 0.8 ms update rate
- Visible red laser light source with 658 nm wavelength and laser class 1 safety
- High repeatability between 7.5 mm and 13 mm
- Push-pull PNP/NPN switching output with light/dark switching modes
- IP67 rated enclosure for robust protection
- Operating temperature range from -40 °C to +50 °C
- Compact rectangular housing design with plastic MABS and ABS materials
- Cable connection with M12 male connector, 4-pin
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection and distance measurement
- Factory automation requiring precise background suppression
- Robotics and material handling systems
- Quality control and process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 25 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Non-hazardous laser class 1 safety compliant light source
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT4SLC-3B3432A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise distance sensing applications.
