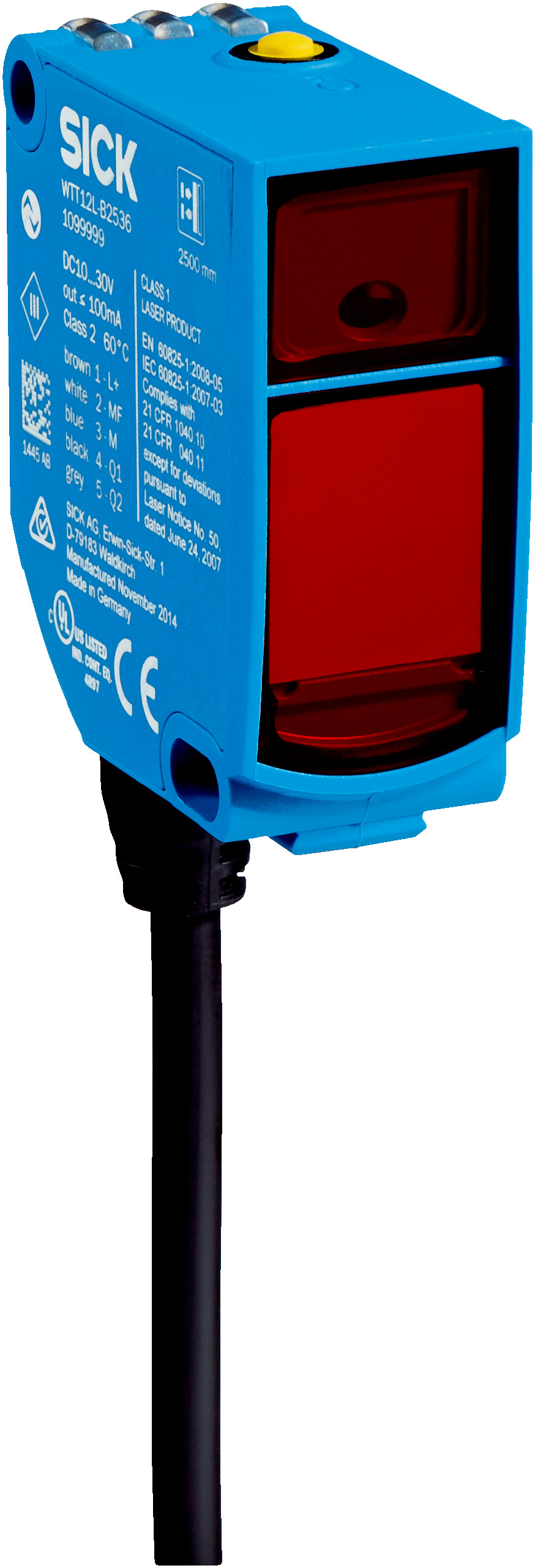

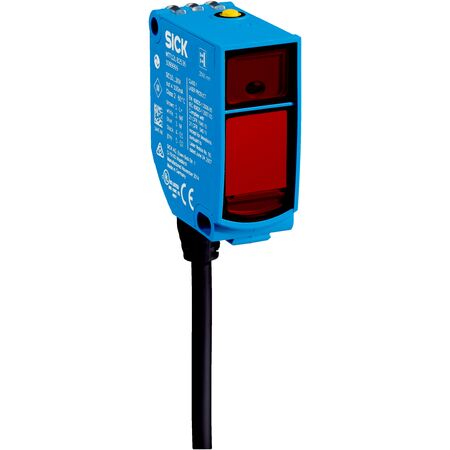

Photoelectric Proximity Sensor WTT12L-B1562S26 | Background Suppression | Optical Time-of-Flight | IP67 Rated | by SICK
The WTT12L-B1562S26 Photoelectric Proximity Sensor is designed for precision in industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 3,800 mm and a visible red laser light source, it ensures reliable object detection in various applications, including material handling and safety detection. Its IP67 rated enclosure provides dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 3,800 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs (Q, /Q)
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Connection type: Cable, 5-wire, 2 m length
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.111 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 3,800 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button for easy adjustment
- Dual switching outputs (PNP/NPN) with light/dark switching mode
- High switching frequency of 100 Hz and response time ≤ 5 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -35 °C to +50 °C
- Cable connection with 5-wire, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Robotics and process control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP67 rated housing reduces replacement frequency and waste
- Long service life with MTTFD of 138 years enhances sustainability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT12L-B1562S26 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
