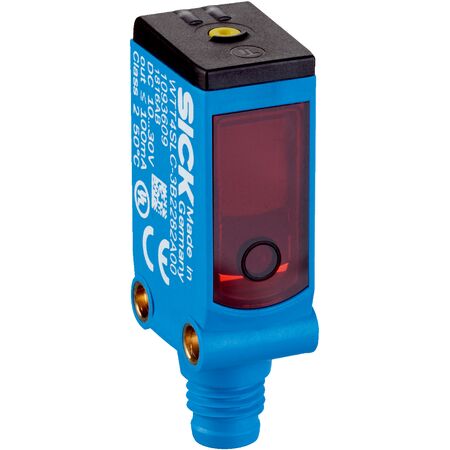

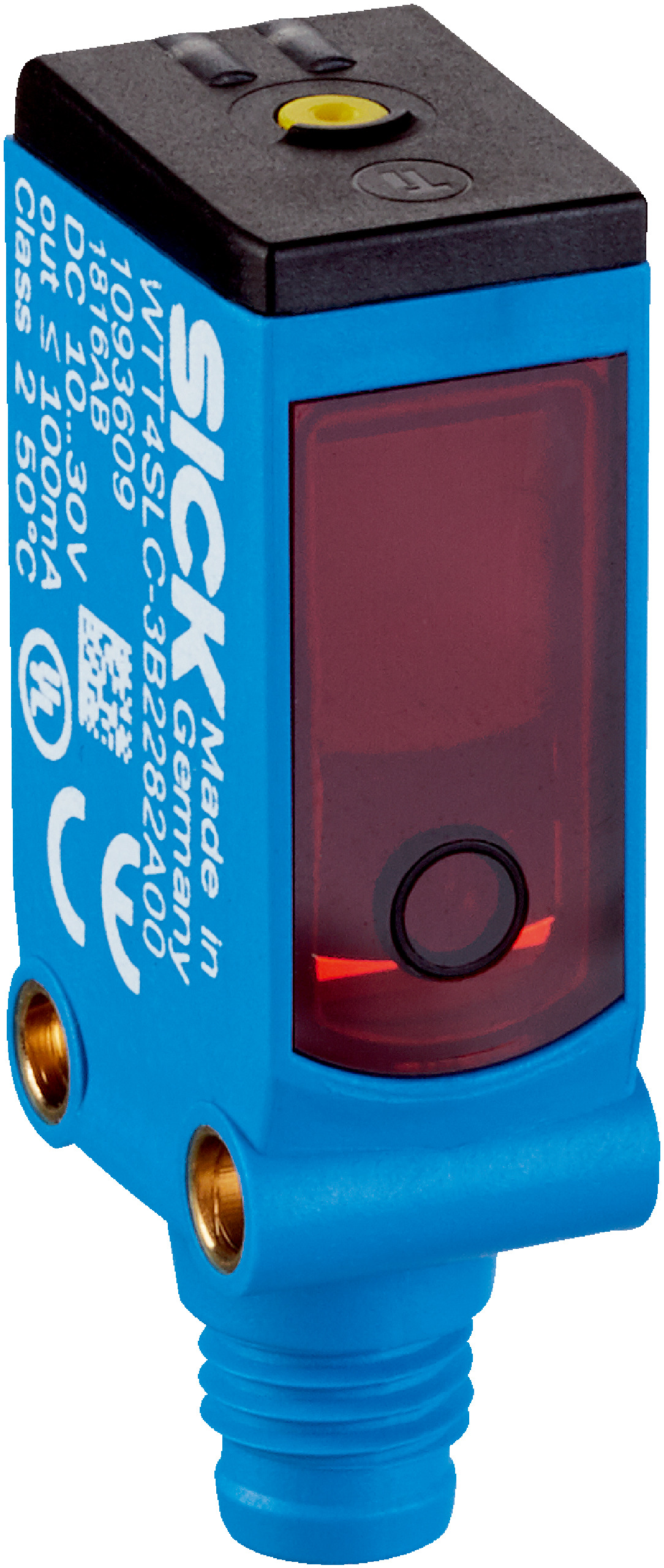

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTT4SLC-3B2232B07 features advanced background suppression and optical time-of-flight technology, making it ideal for industrial automation and precise object detection. With a sensing range of 50 mm to 1000 mm and a resolution of 1 mm, this sensor ensures accurate distance measurement. Its robust IP67 enclosure protects against dust and water, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1000 mm
- Resolution: 1 mm
- Repeatability: 7.5 mm to 13 mm
- Accuracy: -10 mm to +80 mm
- Distance value output: Via IO-Link
- Update rate: 0.8 ms
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Switching output: Push-pull PNP/NPN with light/dark switching
- Switching frequency: 1000 Hz
- Response time: 0.5 ms
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Connection type: Male M8, 4-pin connector
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 1000 mm with 1 mm resolution
- Distance value output via IO-Link with update rate of 0.8 ms
- Laser class 1 safety compliant with IEC 60825-1
- Push-pull PNP/NPN switching output with light/dark switching modes
- High switching frequency of 1000 Hz and fast response time of 0.5 ms
- IP67 rated enclosure for robust protection in industrial environments
- Operating temperature range from -40 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Factory automation systems requiring precise background suppression
- Robotics and material handling for proximity sensing
- Quality control and process monitoring in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes waste by extending product lifespan
- Supports smart automation to optimize resource use and reduce operational waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT4SLC-3B2232B07 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
