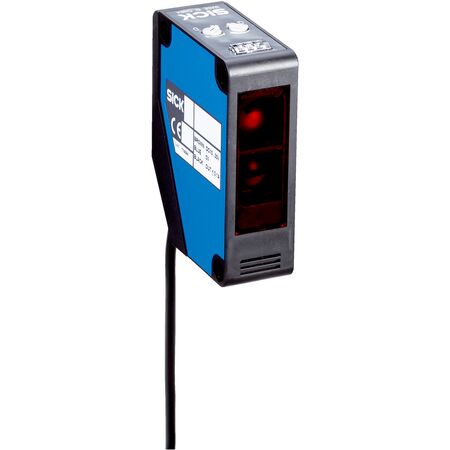

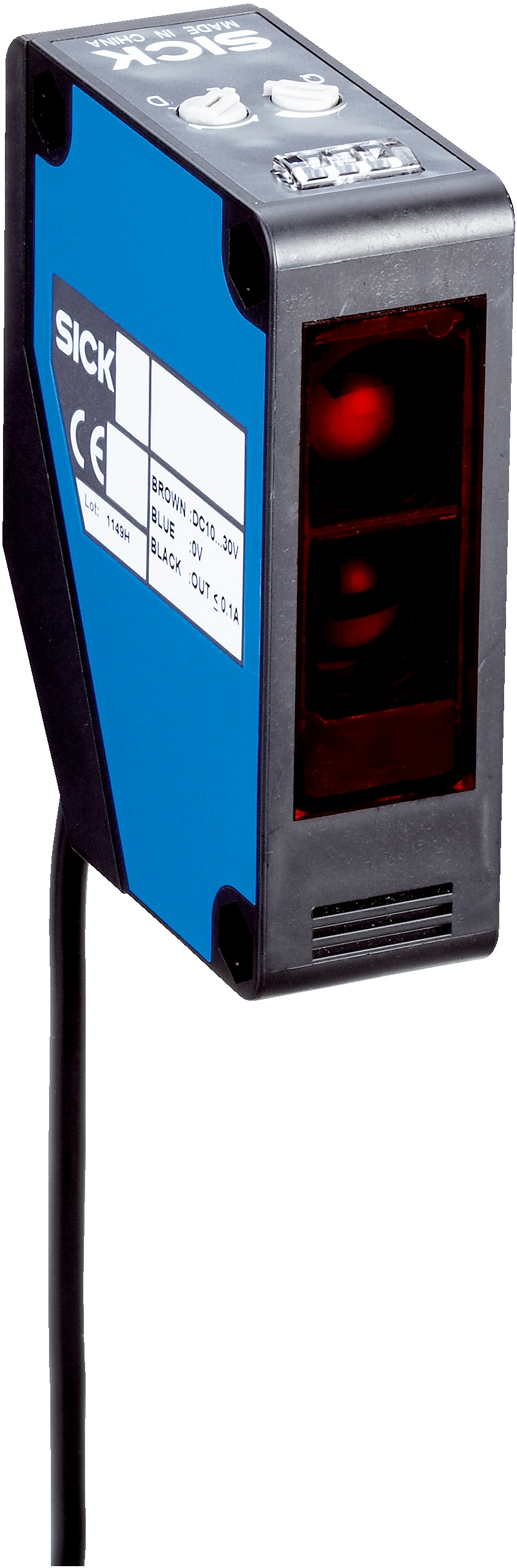

Photoelectric Proximity Sensor WTT280L-2P1536 | Background Suppression & Optical Time-of-Flight | IP67 Rated | by SICK
The WTT280L-2P1536 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 200 mm to 4000 mm and a high switching frequency of 1000 Hz, it ensures precise object detection in manufacturing lines. Its durable IP67 rated enclosure provides protection against dust and water, making it ideal for various applications in machinery safety and presence detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 76mm x 55.8mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 4000 mm
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Dual potentiometer adjustment for fine tuning
- Includes mounting bracket BEF-W280
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Supply voltage range 10 V DC to 30 V DC with low ripple
- PNP switching output with selectable light/dark switching mode
- Cable connection with 5-wire, 2 m length
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 70 mA current draw
- Durable ABS and PMMA plastic housing for long service life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT280L-2P1536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
