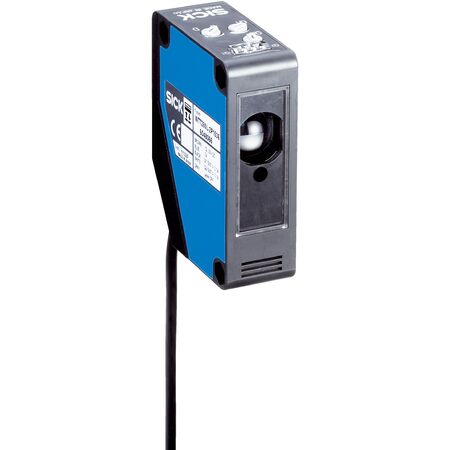

Photoelectric Proximity Sensor WLT280L-2N1536 | Background Suppression | Optical Time-of-Flight Technology | IP67 Rated | by SICK
The WLT280L-2N1536 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. Featuring background suppression and optical time-of-flight technology, it offers a sensing range from 200 mm to 18,000 mm. With a robust IP67 rated enclosure and high switching frequency of up to 1,000 Hz, this sensor is perfect for manufacturing processes and production lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: NPN, 2 outputs (Q1, Q2)
- Switching mode: Light/dark selectable via rotary switch
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: up to 1,000 Hz
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Cable: 5-wire, 2 m length, PVC insulated, diameter 3.8 mm
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 76mm x 55.8mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 18,000 mm
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Dual potentiometer adjustment for sensitivity control
- Includes mounting bracket BEF-W280 and reflector P250
- High switching frequency up to 1,000 Hz with response time ≤ 0.5 ms
- NPN switching output with selectable light/dark switching mode
- Protection class III and IP67 rated enclosure for robust industrial use
- Cable connection with 5-wire, 2 m length, PVC insulated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Background suppression sensing in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 rated housing minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLT280L-2N1536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
