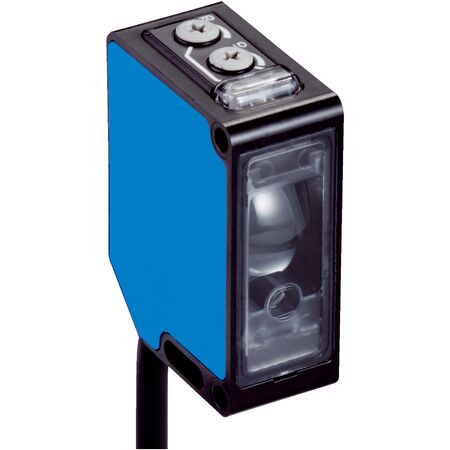

Photoelectric Proximity Sensor WTT190L-N1536 | Background Suppression | Optical Time-of-Flight | IP67 Rated | by SICK
The WTT190L-N1536 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 200 mm to 2,500 mm and a fast response time of ≤ 0.5 ms, it ensures reliable object detection in material handling and packaging systems. Its robust IP67 enclosure protects against dust and water, making it ideal for safety and monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching output: NPN, 2 outputs (Q1, Q2)
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Warm-up time: < 5 minutes
- Initialization time: < 300 ms
- Laser wavelength: 658 nm
- Light spot size at 2,500 mm: Ø 10 mm
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection: 5-wire cable, 2 m length
- Dimensions (H x L x W): 47mm x 34mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology

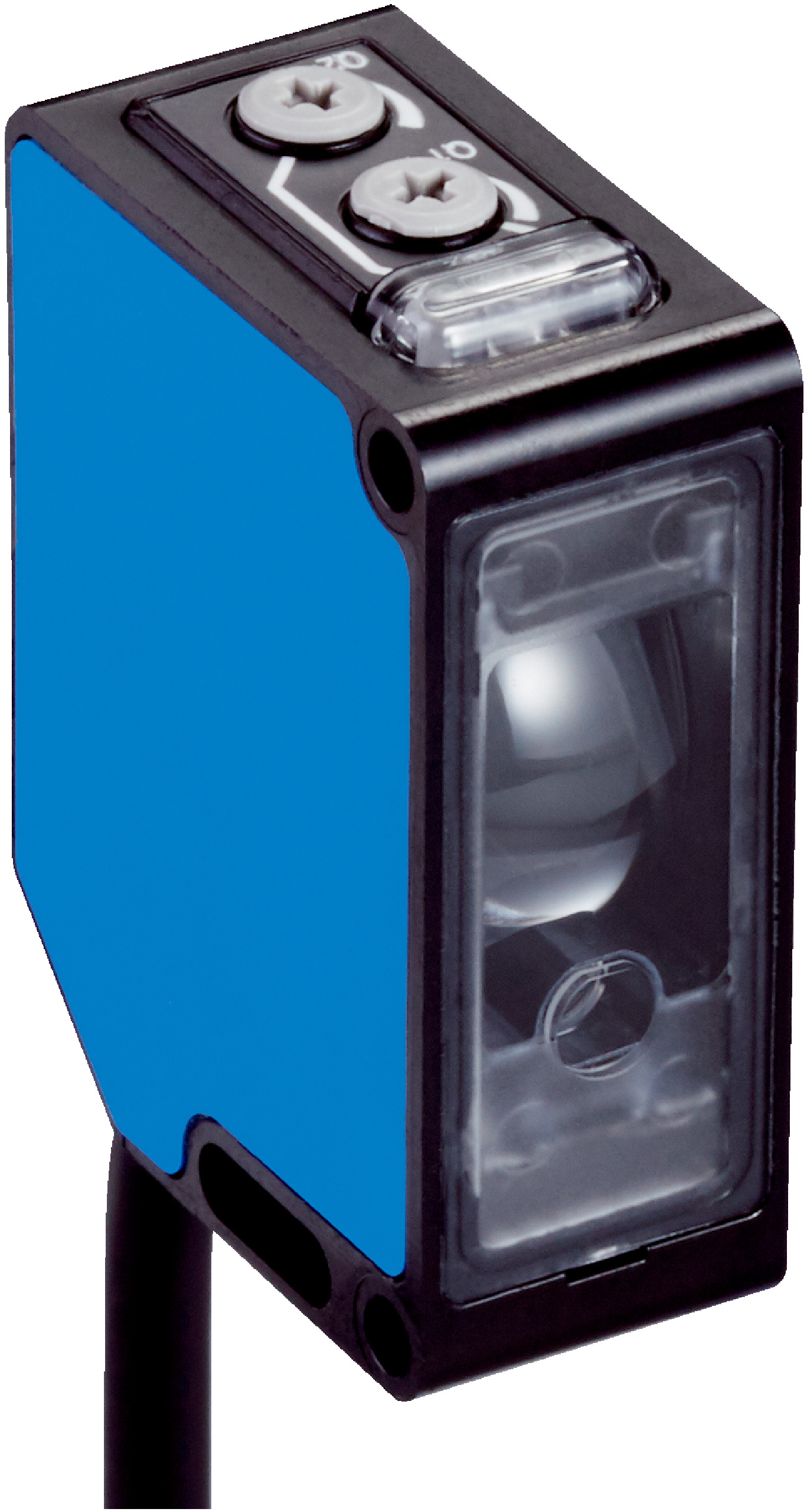

- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Dual switching outputs (NPN) with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust IP67 rated enclosure for protection against dust and water
- Supplied with BEF-W190 mounting bracket
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT190L-N1536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
