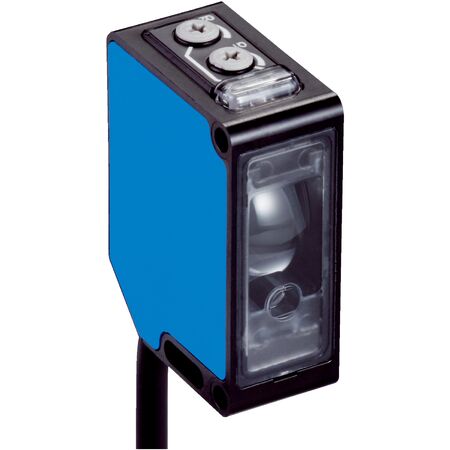

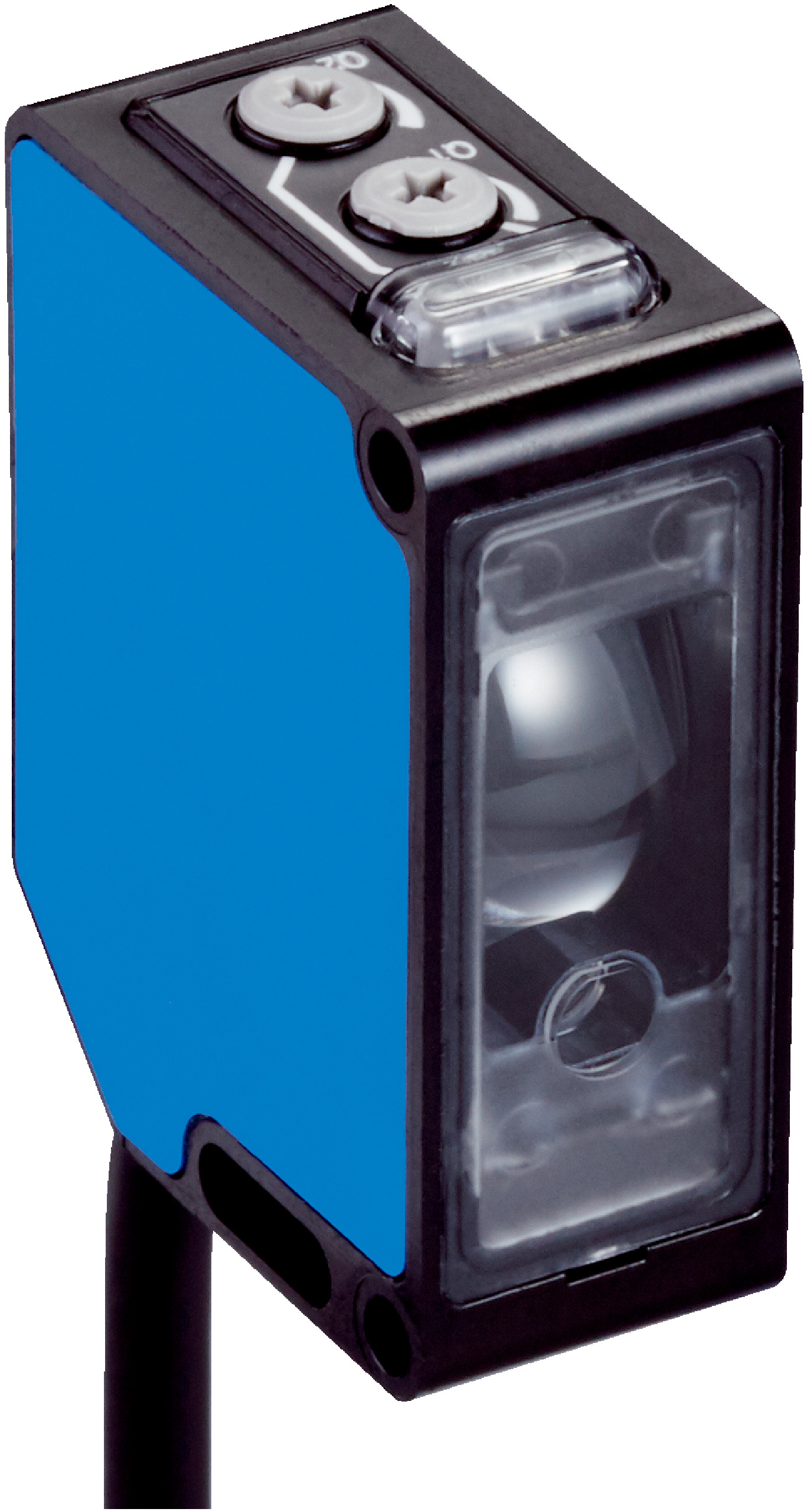

Photoelectric Proximity Sensor WTT190L-N3536 | Background Suppression | Optical Time-of-Flight Technology | IP67 Rated | by SICK
The WTT190L-N3536 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology for precise object detection. With a robust IP67 enclosure and a fast response time of ≤ 0.5 ms, it's perfect for material handling, safety control, and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching output: Dual NPN outputs
- Output current max: ≤ 100 mA
- Switching mode: Light/dark selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Warm-up time: < 5 minutes
- Initialization time: < 300 ms
- Laser wavelength: 658 nm
- Light spot size at 2,500 mm: Ø 10 mm
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection: Cable with M12 5-pin plug, 0.3 m length
- Dimensions (H x L x W): 47mm x 34mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Adjustable potentiometer with 4 turns for sensitivity tuning
- Dual NPN switching outputs with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust IP67 rated enclosure for protection against dust and water
- Operating temperature range from -10 °C to +50 °C
- Includes BEF-W190 mounting bracket
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and quality control in manufacturing
- Robotics and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT190L-N3536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
