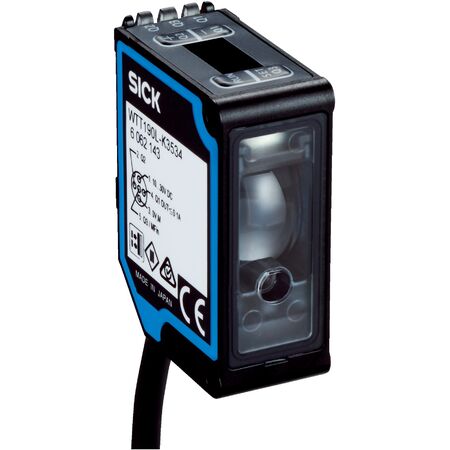

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTT190L-K3534 features advanced background suppression and optical time-of-flight technology, making it ideal for industrial automation and object detection. With a sensing range of 200 mm to 3000 mm and a visible red laser light source, this sensor ensures high accuracy and reliability in various applications, including robotics and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 200 mm to 3000 mm
- Light source: Visible red laser, wavelength 658 nm, laser class 1
- Adjustment: Single teach-in button with display
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching outputs: 3 (PNP, NPN), max output current ≤ 100 mA
- Switching modes: Light/dark switching selectable via menu
- Response time options: 0.6 ms to 51.4 ms
- Switching frequency: Up to 833 Hz
- Time functions: Off delay, switch-on delay, one shot, programmable delay 0-999 ms
- Protection class: III, Enclosure rating: IP67
- Operating temperature: -30°C to +50°C
- Warm-up time: < 5 minutes
- Weight: 45 g
- Connection: Cable with M12 5-pin plug, 0.3 m length
- Dimensions (H x L x W): 46mm x 35mm x 17mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 3000 mm with a laser class 1 safety rating
- Single teach-in button with display for easy adjustment
- Three switching outputs (PNP, NPN) with selectable switching modes
- High switching frequency up to 833 Hz and programmable delay times
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +50°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Robotics and manufacturing process control
- Safety and quality control in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT190L-K3534 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
