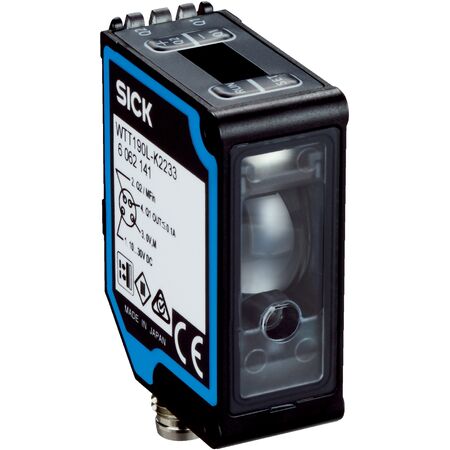

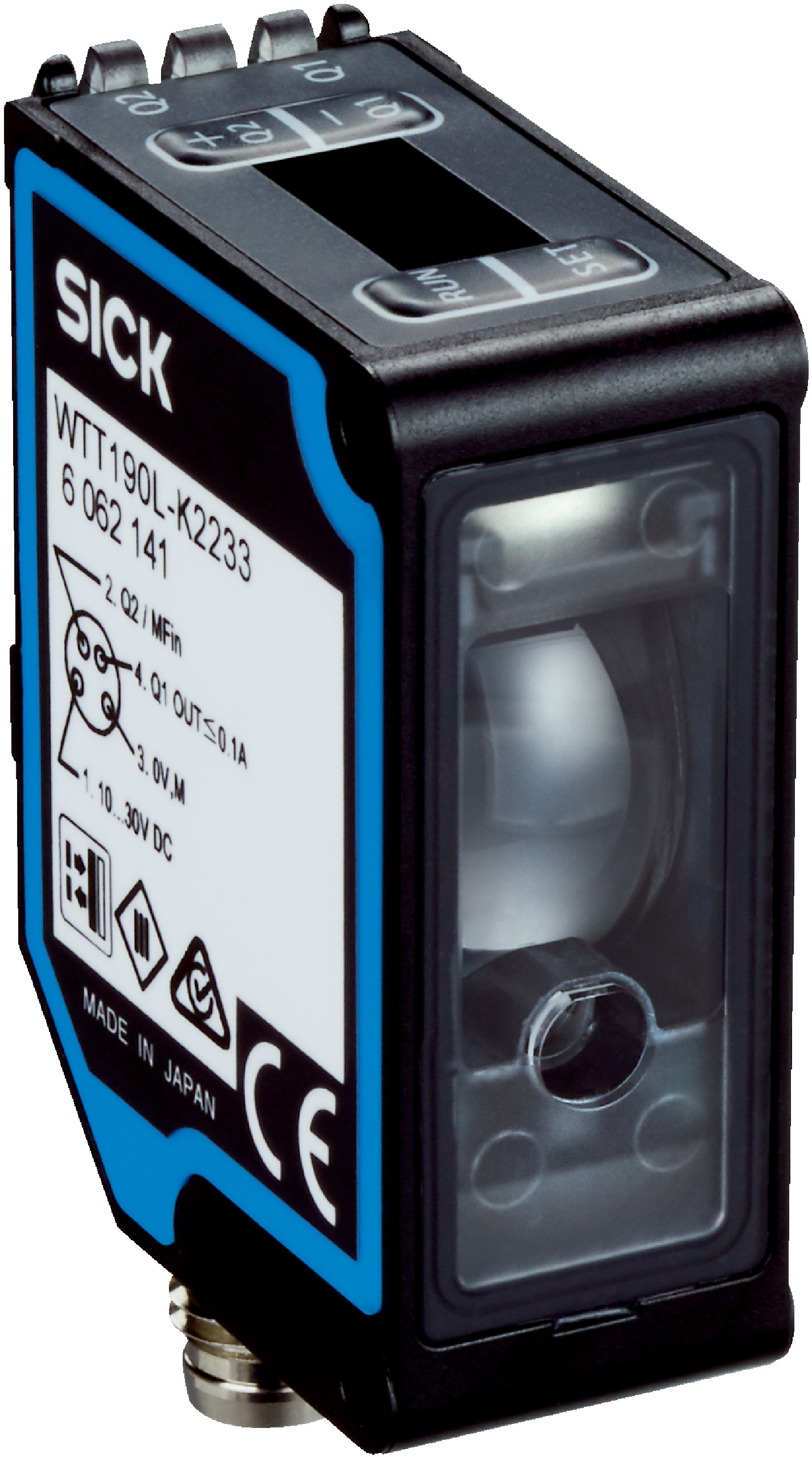

Photoelectric Proximity Sensor | Background Suppression | Optical Time-of-Flight Technology | IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTT190LC-B2233A00 features advanced background suppression using optical time-of-flight technology, making it ideal for industrial automation and safety applications. With a sensing range of 200 mm to 3000 mm and a robust IP67 enclosure, this sensor ensures reliable performance in harsh environments, perfect for material handling and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching outputs: 2 push-pull (PNP/NPN), max 100 mA output current
- Response time options: 0.6 ms to 102.6 ms
- Switching frequency: up to 833 Hz
- Communication interface: IO-Link V1.1, COM3 (230.4 kBaud)
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Laser wavelength: 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Dimensions (H x L x W): 45.6mm x 34.7mm x 17.4mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 3000 mm with a 12 mm light spot at 3000 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button and local user interface with display for easy adjustment
- Dual push-pull switching outputs (PNP/NPN) with selectable light/dark switching mode
- IO-Link V1.1 communication interface with 1 ms cycle time
- Robust IP67 rated enclosure suitable for harsh environments
- Operating temperature range from -30 °C to +50 °C
- Supplied with BEF-W190 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical sensor integration to ensure compliance and optimal performance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Robotics and process control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT190LC-B2233A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
