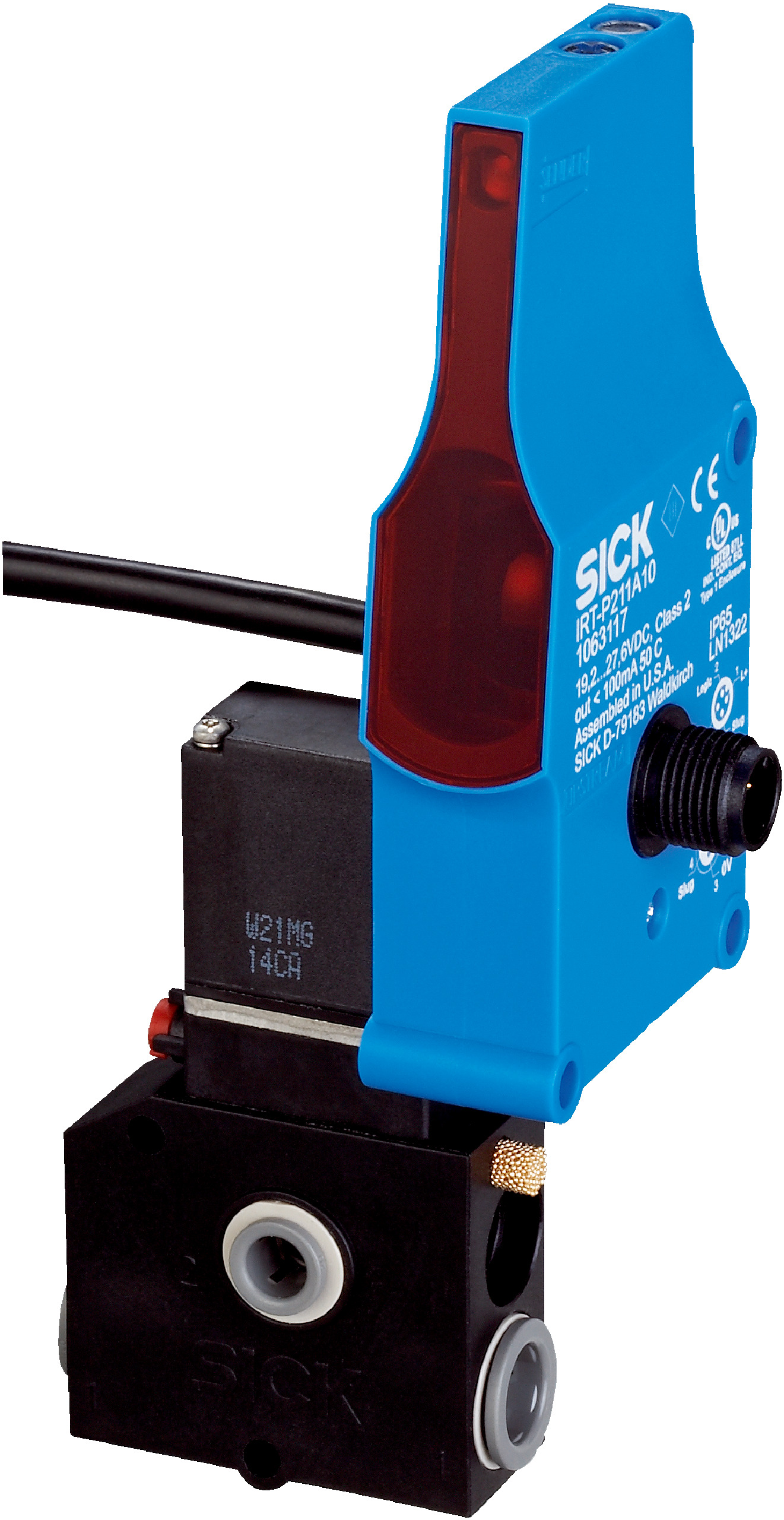

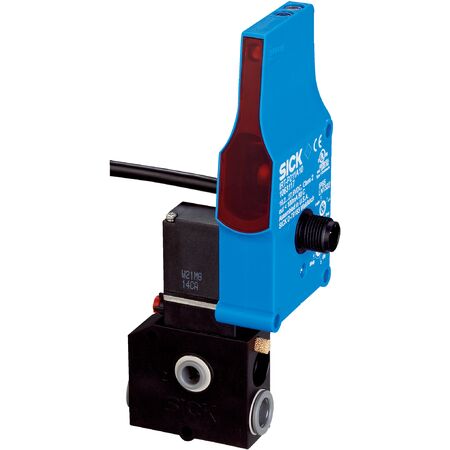

Photoelectric Proximity Sensor IRT-P211A10 | Background Suppression | Pneumatic Actuator | IP65 Rated | by SICK
The Photoelectric Proximity Sensor IRT-P211A10 features advanced background suppression technology and a pneumatic actuator with an integrated valve, making it ideal for industrial automation and pneumatic control systems. With a sensing range of 60 mm to 900 mm and an IP65 rated enclosure, this sensor ensures reliable performance in demanding environments, while its infrared LED light source provides precise detection capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Actuator: Pneumatic, valve on board
- Max. number of sensors: Approx. 30 to 50
- Logical principle: Single accumulation
- Type of release: Single release, block (slug) release
- Sensing range: 60 mm to 900 mm
- Focus angle: 7°
- Light source: Infrared LED
- Light spot size: Ø 20 mm at 500 mm
- Adjustment: Potentiometer, 9 turns
- Supply voltage: 19.2 V DC to 27.6 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP65
- Shock and vibration resistance: IEC 68
- Operating temperature: -10°C to +55°C
- Storage temperature: -40°C to +75°C
- Medium for valves: Compressed air or neutral gases filtered, non-lubricated or lubricated
- Design solenoid valve: 3/2-way valve
- Mode of operation solenoid valve: Air to Drive (NC)
- Connection type solenoid valve: Control line 1/4" diameter, compressed air 2 x 3/8" diameter
- Coil ratings: 24 V DC, 1 W
- Air flow rate: Approx. 1.4 SCFM
- Operating pressure range: 0 psi to 65 psi
- MTTFD: 1,227 years
- B10D: 20,000,000 switching cycles
- Dimensions (H x L x W): 152mm x 49mm x 60mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Pneumatic actuator with valve on board
- Sensing range from 60 mm to 900 mm with 7° focus angle
- Infrared LED light source with 20 mm light spot at 500 mm
- Potentiometer adjustment with 9 turns
- IP65 rated enclosure for dust and water resistance
- Shock and vibration resistant according to IEC 68
- Operating temperature range from -10°C to +55°C
- 3/2-way solenoid valve design with air to drive (NC) mode
- Connection via male M12 4-pin connector and daisy chain cable with female M12 connector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and pneumatic systems to ensure proper sensor integration and safety compliance.
Applications
- Industrial automation for object detection
- Pneumatic valve control systems
- Zone control applications requiring background suppression
- Compressed air or neutral gas valve actuation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient pneumatic valve control reduces compressed air consumption
- Durable design minimizes replacement frequency and waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IRT-P211A10 Photoelectric Proximity Sensor with Pneumatic Valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
