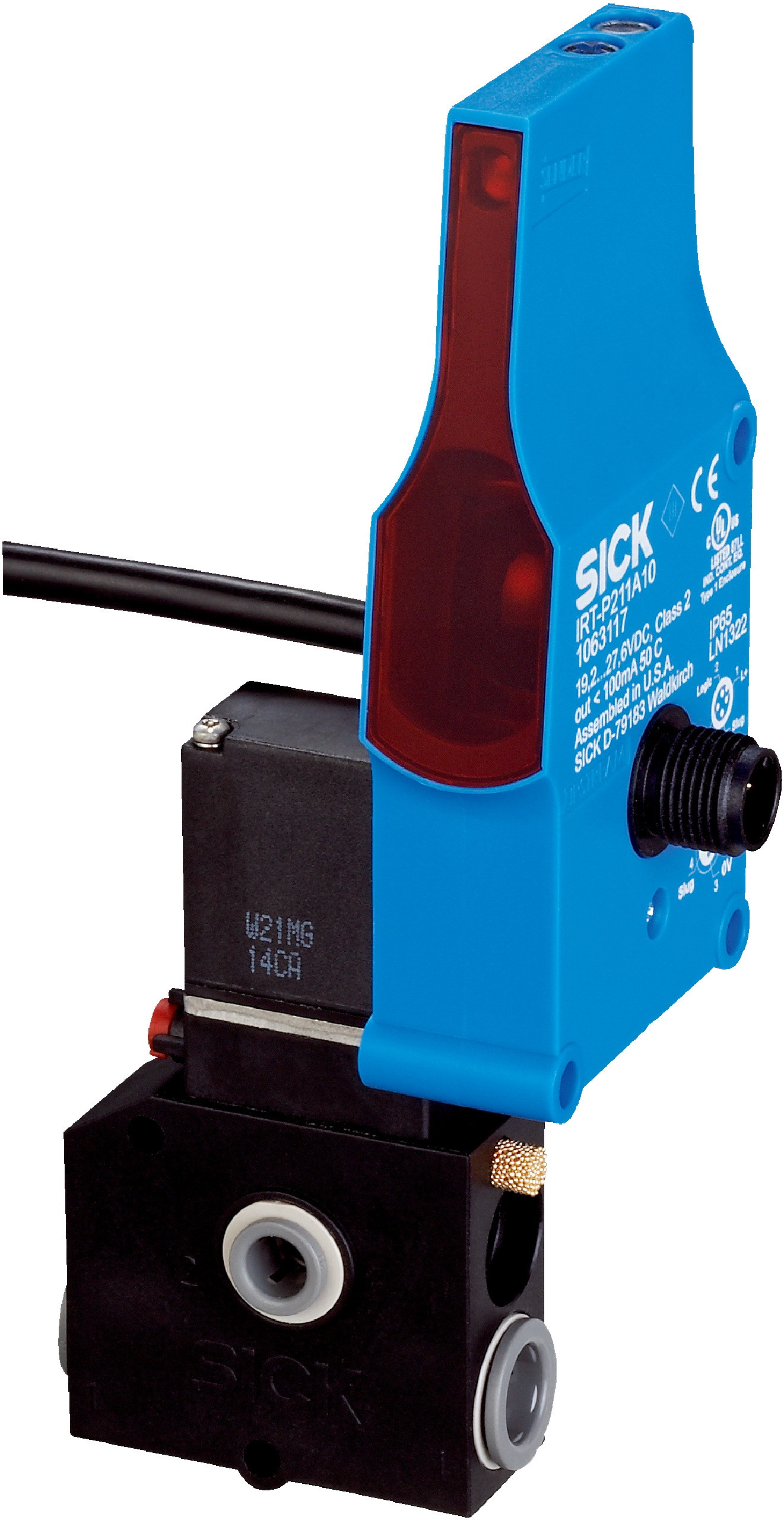

Photoelectric Proximity Sensor IRT-P211A11 | Background Suppression | Pneumatic Valve Control | IP65 Rated | by SICK
The IRT-P211A11 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a pneumatic valve for precise control. With a sensing range of 60 mm to 900 mm and an IP65 rated enclosure, it’s perfect for object detection and pneumatic control systems in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 19.2 V DC to 27.6 V DC
- Current consumption: 20 mA
- Switching output: PNP with max output current ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Light spot size: Ø 20 mm at 500 mm distance
- Coil ratings: 24 V DC, 1 W
- Air flow rate and ventilation capacity: Approx. 1.4 SCFM
- Operating pressure range: 0 psi to 65 psi
- Protection class: III
- Circuit protection types: A, C, D
- Weight: 175 g
- Housing material: Plastic, ABS
- Dimensions (H x L x W): 152mm x 49mm x 60mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Pneumatic actuator with valve on board
- Sensing range from 60 mm to 900 mm
- Infrared LED light source with 7° angle of dispersion
- Potentiometer adjustment with 9 turns
- IP65 rated enclosure for dust and water resistance
- Shock and vibration resistant according to IEC 68
- Operating temperature range from -10°C to +55°C
- 3/2-way solenoid valve design with air to brake (NO) operation
- Connection via male M12 4-pin connector and daisy chain cable
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct electrical and pneumatic connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Pneumatic valve control systems
- Background suppression sensing in manufacturing
- ZoneControl applications requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IRT-P211A11 Photoelectric Proximity Sensor with Pneumatic Valve is available for immediate purchase. Ideal for industrial automation and pneumatic control applications.
