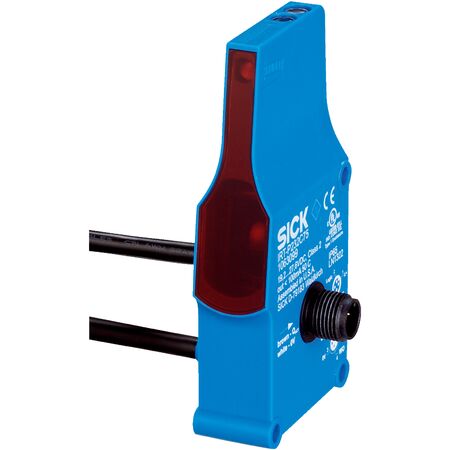

Photoelectric Proximity Sensor IRT-P212C73 | Background Suppression | Sensing Range 60-900mm | IP67 Rated | by SICK
The Photoelectric Proximity Sensor IRT-P212C73 is designed for industrial automation, featuring a sensing range from 60 mm to 900 mm and background suppression technology. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for material handling and safety control applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Actuator type: Electrical
- Max number of sensors: Approx. 30 to 50 depending on conditions
- Logical operation: Single accumulation
- Type of release: Single release, block (slug) release
- Sensing range: 60 mm to 900 mm
- Focus angle: 7°
- Light source: Infrared LED
- Light spot size at 500 mm: Ø 20 mm
- Adjustment: Potentiometer with 9 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP
- Signal voltage PNP HIGH/LOW: Approx. Vs – 0.5 V / 0 V
- Max output current: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Daisy chain connection: Cable with female M12, 4-pin connector, 2 m
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP67
- Shock and vibration resistance: According to IEC 68
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- UL File No.: NRKH.E189383 & NRKH7.E189383
- Mode of operation solenoid valve: HIGH to Drive
- Dimensions (H x L x W): 99mm x 49mm x 21mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 60 mm to 900 mm
- Infrared LED light source with 7° angle of dispersion
- Potentiometer adjustment with 9 turns for sensitivity tuning
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68
- Operating temperature range from -40 °C to +60 °C
- PNP switching output with max output current ≤ 100 mA
- Response time of 2 ms and switching frequency of 250 Hz
- Connection via male M12, 4-pin connector with daisy chain capability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and control in manufacturing processes
- ZoneControl applications requiring precise sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable ABS plastic housing reduces need for frequent replacements
- Long operational life reduces electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IRT-P212C73 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
