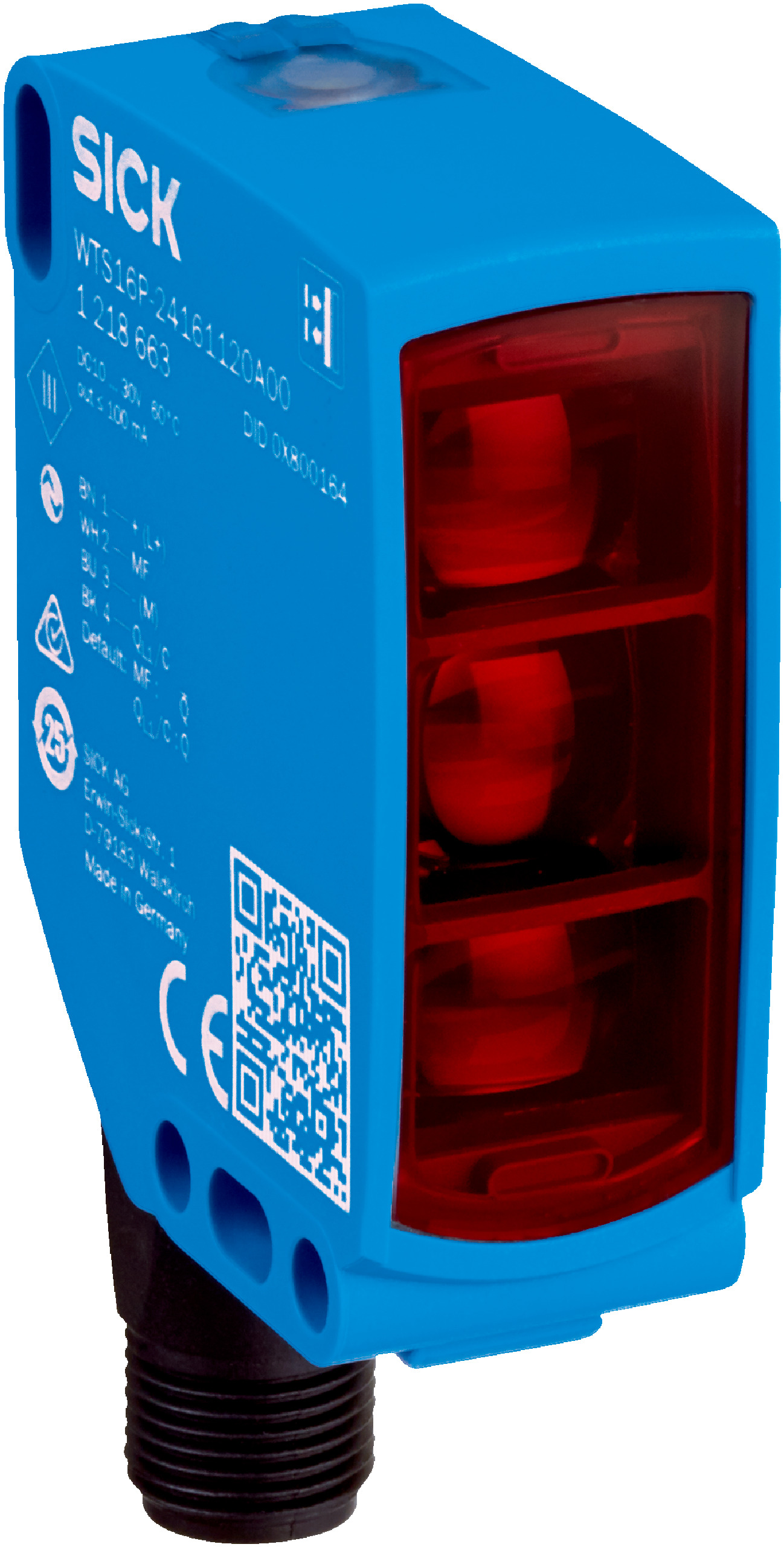

Photoelectric Proximity Sensor | Background Suppression | TwinEye Technology | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor with background suppression and TwinEye technology is perfect for industrial automation and object detection. With an adjustable sensing range from 100 mm to 750 mm and a robust IP66/IP67/IP69 rated housing, it excels in harsh environments. Designed for reliable performance, this sensor features a long-lasting PinPoint LED light source and dual complementary push-pull outputs, making it ideal for detecting shiny or uneven objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 50 mm to 750 mm adjustable; recommended 100 mm to 300 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 8 mm at 300 mm distance
- Response time: ≤ 0.1 s
- Switching frequency: 10 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), max 100 mA
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 50 g, 11 ms and 6 ms
- Vibration resistance: 10 Hz to 2000 Hz, amplitude 0.5 mm / 10 g
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Housing material: Plastic VISTAL®; Front screen: PMMA
- Connection: Male M12, 4-pin connector
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- TwinEye technology and MultiPulse for enhanced detection
- Adjustable sensing range from 100 mm to 750 mm
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Dual complementary push-pull digital outputs (PNP/NPN)
- Robust plastic VISTAL® housing with PMMA front screen
- High protection rating: IP66, IP67, IP69
- Wide ambient operating temperature range from -40°C to +60°C
- Shock and vibration resistant
- Factory setting sensing range 405 mm with dynamic blind zone 50 mm to 75 mm
- Self-monitoring MultiPulse sensor
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and secure mounting, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny objects
- Detection of objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

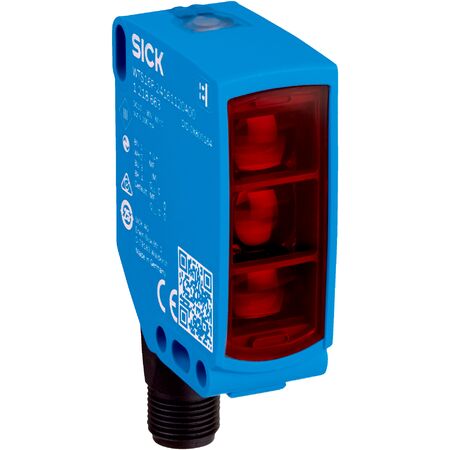

The SICK WTS16P-24161300CZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
