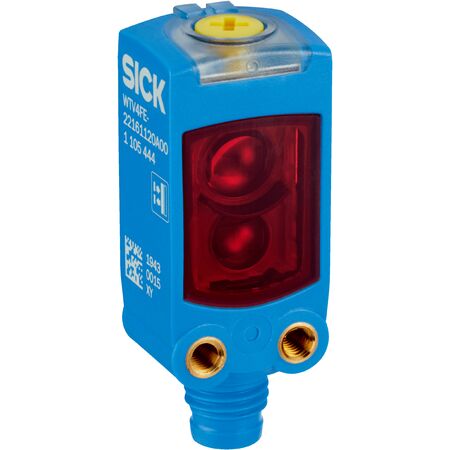

Photoelectric Proximity Sensor | Background Suppression & V-Optics | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTV4FE-22161120A00 features advanced background suppression and V-optics, making it ideal for precise object detection in industrial automation. With an adjustable sensing range from 15 mm to 50 mm and robust IP66/IP67 protection, this sensor is built for harsh environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and V-optics
- Sensing range: 2 mm to 50 mm, adjustable switching threshold 15 mm to 50 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size at 30 mm: 0.5 mm x 1.9 mm
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA at 24 V
- Protection class: III
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Connection: Male M8, 4-pin connector
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- LED indicators: BluePilot sensing range, green power/IO-Link mode, yellow object detection status
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and V-optics
- Adjustable sensing range from 15 mm to 50 mm for background suppression
- PinPoint LED visible red light with rectangular light spot
- High precision with smallest detectable object size of 0.1 mm at 30 mm distance
- BluePilot for easy sensing range adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- Dual complementary push-pull digital outputs with light/dark switching
- Robust plastic VISTAL® housing with IP66 and IP67 protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- Long LED service life of 100,000 hours at 25 °C
- Multiple LED indicators for sensing range, operation, and object detection status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Detection of transparent objects
- Use in harsh environments requiring IP66/IP67 protection
- Integration in systems requiring IO-Link communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTV4FE-22161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
