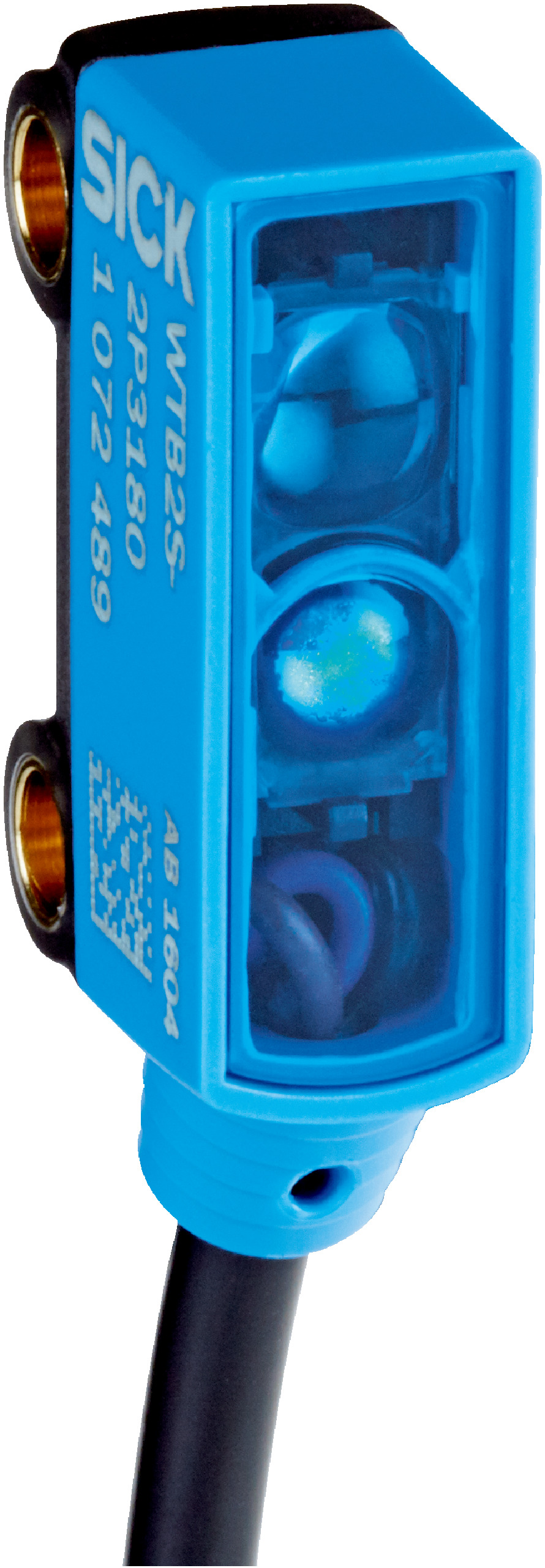

Photoelectric Proximity Sensor | Background Suppression & V-optics | IP67 Rated | by SICK
The Photoelectric Proximity Sensor with background suppression and V-optics is designed for precise object detection in industrial automation. With a sensing range of 4 mm to 30 mm and a fast response time of under 0.5 ms, it excels in detecting small, shiny, or transparent objects. Its durable IP67 rated housing ensures reliable performance in challenging environments, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression, V-optics
- Sensing range: 4 mm to 30 mm
- Light source: Visible blue LED, 445 nm wavelength
- Light spot size at 10 mm distance: 2 mm x 3 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Maximum output current: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 2 m length
- Cable material: Plastic, PVC
- Housing material: Plastic, ABS/PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +50 °C
- Storage temperature range: -40 °C to +75 °C
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and V-optics
- Visible blue light LED with wavelength of 445 nm
- Sensing range from 4 mm to 30 mm
- Preset 14 mm on black with V-optics
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Cable with M8 male connector, 4-pin, 2 m length
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper sensor setup and safety compliance.
Applications
- Detecting small objects
- Detecting uneven, shiny objects
- Detecting objects wrapped in film
- Detecting transparent objects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

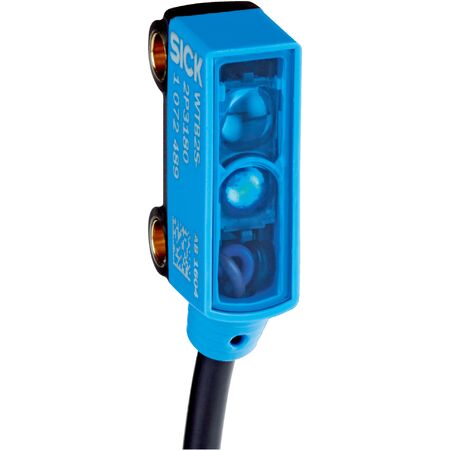

The SICK WTV2S-2P3285S45 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
