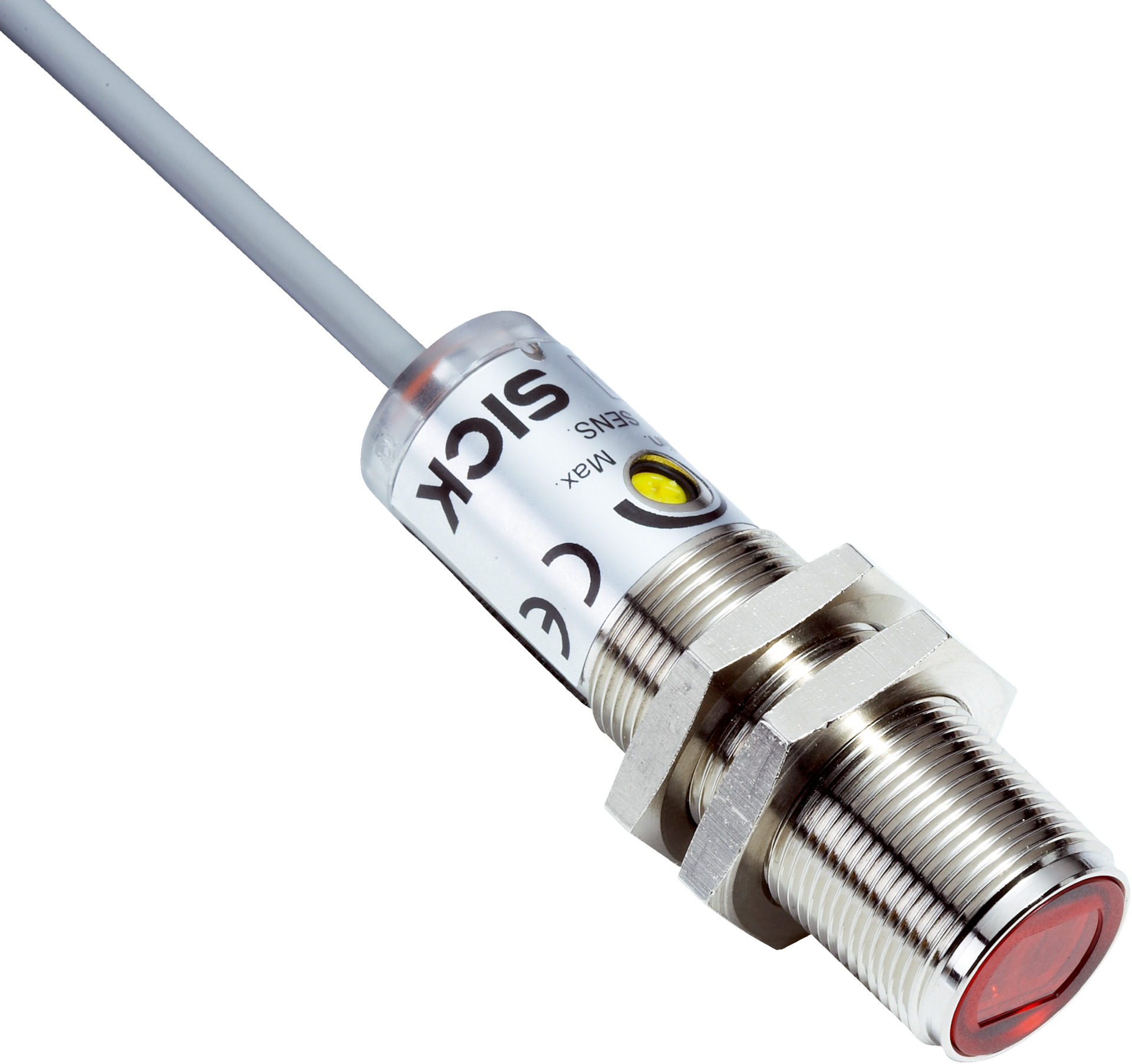

Photoelectric Proximity Sensor | Energetic Functionality | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring an energetic functional principle and a sensing range of 1 mm to 350 mm. With a visible red LED light source and an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Energetic photoelectric proximity sensor
- Sensing range: 1 mm to 350 mm (max 500 mm)
- Light source: Visible red LED, wavelength 645 nm
- Focus angle: Approx. 1.5°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via control cable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 3 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Housing material: Nickel-plated brass and PC
- Optics material: PMMA plastic
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 350 mm, max 500 mm
- Cylindrical metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Selectable light/dark switching mode via control cable
- Potentiometer adjustment with 270° range for sensing distance
- Supplied with fastening nuts for easy installation
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2N41042S01 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
