Photoelectric Proximity Sensor | FlexChain Guest Sensor | IP65 & IP67 Rated | Adjustable Sensitivity | by SICK
The Photoelectric Proximity Sensor, also known as the FlexChain Guest Sensor, is designed for industrial automation and safety light grid applications. Featuring a PinPoint LED visible red light source with a 650 nm wavelength, this sensor offers high protection ratings of IP65 and IP67, making it robust against environmental challenges. With adjustable sensitivity via a potentiometer, it ensures precise object detection and positioning in various manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Photoelectric proximity sensor with light grid system
- Light source: PinPoint LED, visible red light
- Light spot size at 100 mm distance: Ø 6 mm
- Wavelength: 650 nm
- Supply voltage: 12 V via FlexChain host
- Adjustment: Potentiometer for sensitivity
- Connection type: Male connector M8, 4-pin; cable with female connector M8, 4-pin, 0.5 m
- Housing material: Plastic (ABS)
- Enclosure rating: IP65, IP67
- Protection class: III
- Operating range: 0.25 m
- Shock resistance: Single shocks 30 g, 11 ms; continuous shocks 25 g, 6 ms
- Vibration resistance: Sinusoidal oscillation 20-2,000 Hz, 10 g
- EMC compliance: EN 61000-6-2, EN 61000-6-3
- Ambient light immunity: Direct 9,000 lx
- Operating temperature range: –25 °C to +55 °C
- Storage temperature range: –25 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with light grid system
- PinPoint LED visible red light source with 650 nm wavelength
- Compact dimensions: 12 mm x 31.5 mm x 21 mm
- High protection rating: IP65 and IP67
- Robust against shocks and vibrations
- Sensitivity adjustable via potentiometer
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with FlexChain host systems and compliance with safety standards.
Applications
- Industrial automation for object detection and positioning
- Safety light grid systems in manufacturing environments
- Integration in FlexChain host systems for precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 12 V supply via FlexChain host
- Durable ABS plastic housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

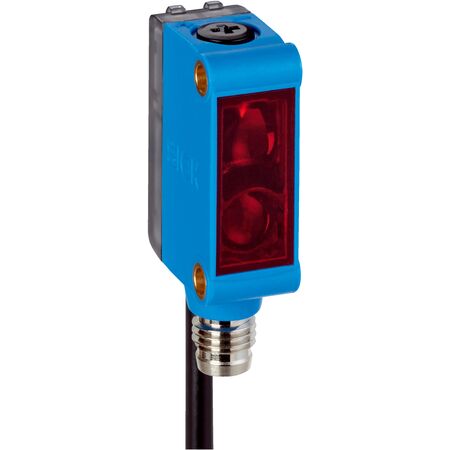

The SICK GTB6-CA011K00 FlexChain Guest Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety light grid applications.
