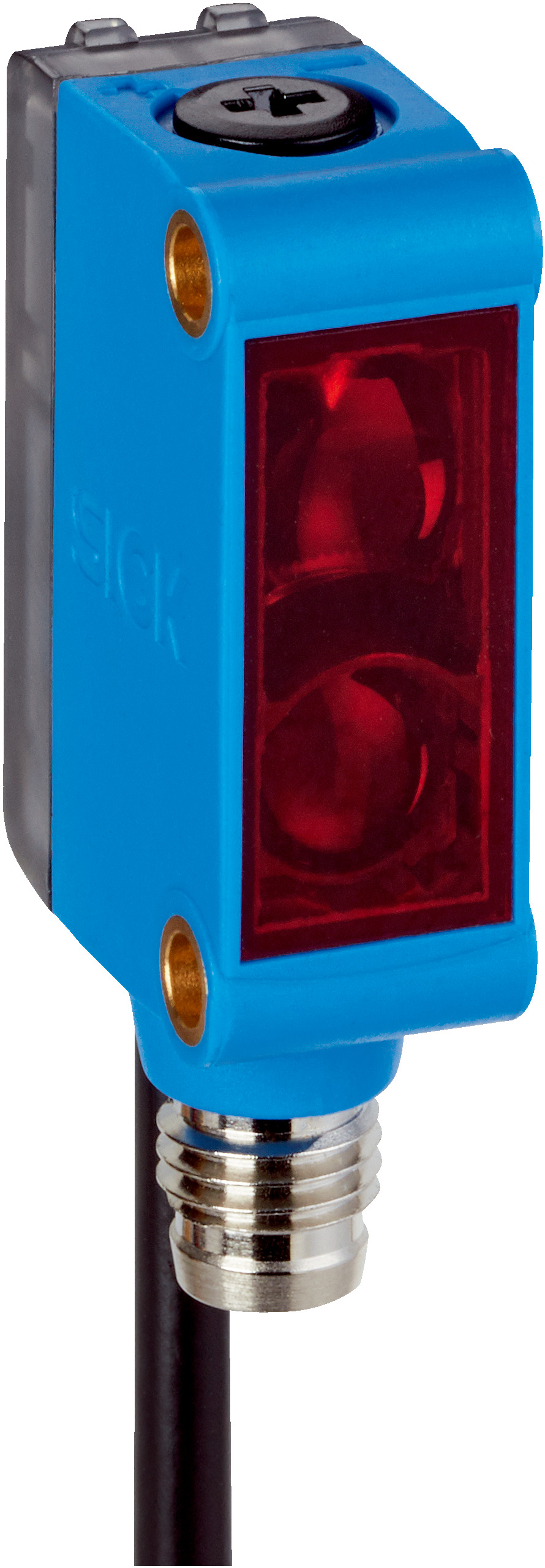

Photoelectric Proximity Sensor | FlexChain Guest | IP65 & IP67 Rated | Adjustable Sensitivity | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a FlexChain Guest system and a robust light grid for precise object detection. With an IP65 and IP67 rating, it withstands harsh environments while offering adjustable sensitivity via a potentiometer. Ideal for safety light grid applications in manufacturing, this sensor ensures reliable performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: FlexChain Guest
- Sensor principle: Photoelectric proximity sensor Light grid system
- Light source: PinPoint LED, visible red light
- Light spot size at 100 mm distance: Ø 6 mm
- Wavelength: 650 nm
- Supply voltage: 12 V via FlexChain host
- Adjustment: Potentiometer for sensitivity
- Connection type: Male connector M8, 4-pin; Cable with female connector M8, 4-pin, 1.5 m
- Housing material: Plastic (ABS)
- Enclosure rating: IP65, IP67
- Protection class: III
- Operating range: 0.25 m
- Shock resistance: Single shocks 30 g, 11 ms; continuous shocks 25 g, 6 ms
- Vibration resistance: Sinusoidal oscillation 20-2,000 Hz, 10 g
- EMC: EN 61000-6-2, EN 61000-6-3
- Ambient light immunity: Direct 9,000 lx
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with light grid system
- PinPoint LED with visible red light at 650 nm wavelength
- Compact housing made of durable ABS plastic
- High protection rating with IP65 and IP67 for harsh environments
- Adjustable sensitivity via potentiometer
- Robust against shocks and vibrations
- EMC compliant with EN 61000-6-2 and EN 61000-6-3 standards
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor systems and FlexChain integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection and presence sensing
- Safety light grid systems in manufacturing and processing plants
- Integration in FlexChain systems for flexible sensor networks
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC) standards
Environmental Benefits
- Low power consumption via 12 V supply through FlexChain host
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

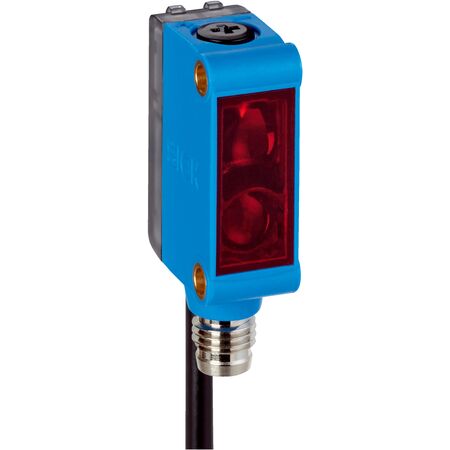

The SICK GTB6-CB011K00 FlexChain Guest Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety light grid applications.
