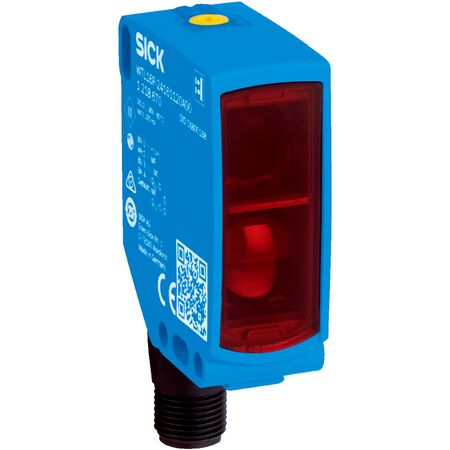

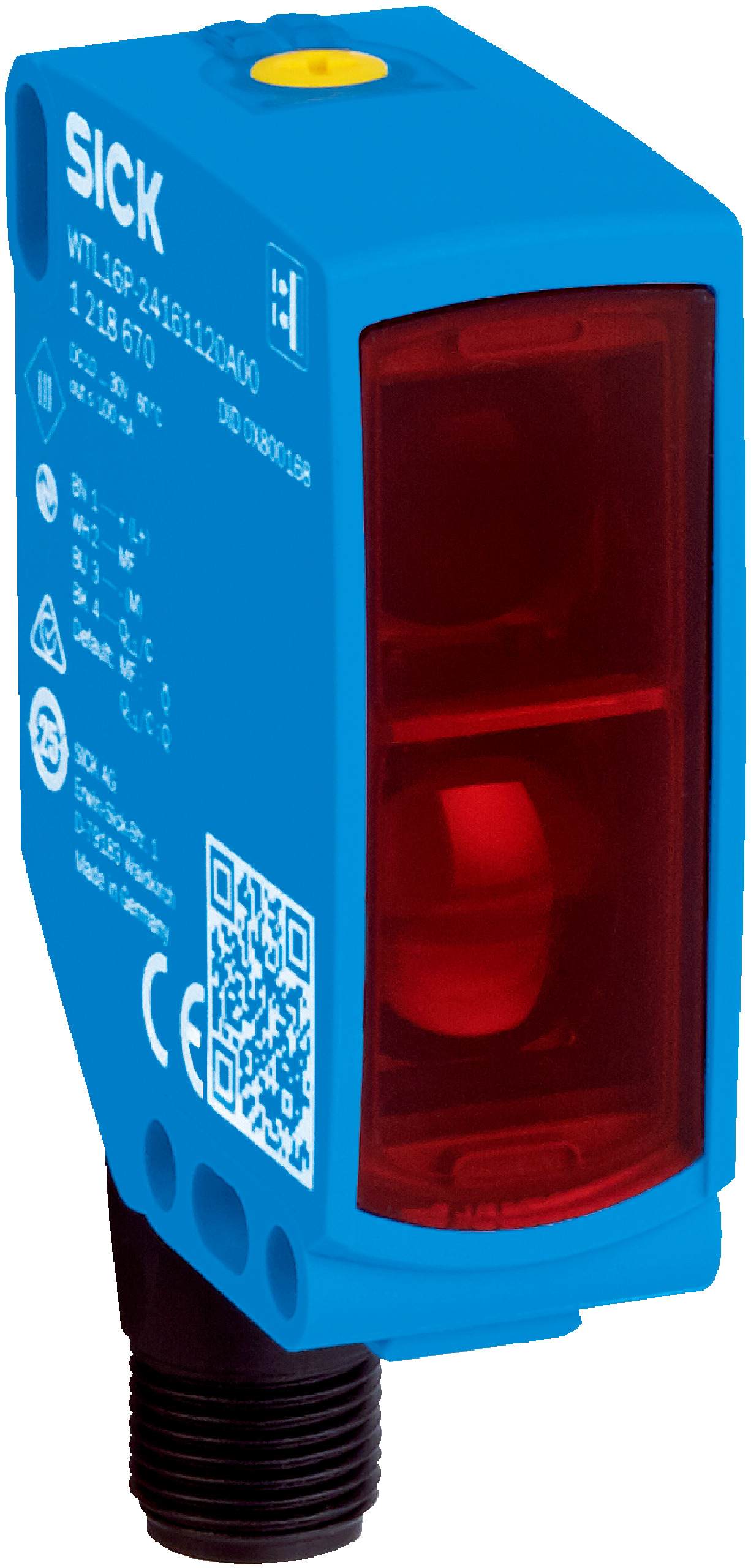

Photoelectric Proximity Sensor | Foreground Suppression | Adjustable Sensing Range | IO-Link Interface | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range adjustable from 0 mm to 250 mm and a foreground suppression capability. With a robust IP66, IP67, and IP69 rated housing, this sensor is built to withstand harsh environments, making it ideal for manufacturing processes that require reliable performance and quick response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with foreground suppression
- Sensing range: 0 mm to 250 mm, adjustable switching threshold 75 mm to 250 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Switching frequency: up to 1000 Hz
- Response time: ≤ 500 µs
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz, amplitude 0.5 mm / 10 g
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with foreground suppression
- Adjustable switching threshold for background suppression from 75 mm to 250 mm
- Sensing range from 0 mm to 250 mm, recommended 100 mm to 200 mm
- PinPoint LED light source with visible red light at 635 nm wavelength
- BluePilot for easy sensing range setting
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Dual complementary push-pull digital outputs with light/dark switching
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock and vibration resistant for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and secure mounting, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Flat object detection in manufacturing processes
- Use in environments requiring precise sensing with background suppression
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with environmental standards including China-RoHS and ECOLAB certification
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTF16P-24162620A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
