Photoelectric Proximity Sensor | Foreground Suppression | IP66/IP67/IP69 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring foreground suppression and a sensing range of 0 mm to 250 mm. With a fast response time of ≤ 500 µs and high switching frequency up to 1,000 Hz, it's perfect for detecting flat objects in manufacturing processes. Built with robust plastic VISTAL® housing and IP66/IP67/IP69 ratings, this sensor ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output type: 2 complementary PNP digital outputs
- Switching mode: Light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- LED wavelength: 635 nm
- Housing material: Plastic VISTAL®
- Connector: Male M12, 4-pin
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with foreground suppression
- Adjustable switching threshold for background suppression from 75 mm to 250 mm
- Sensing range from 0 mm to 250 mm, recommended 100 mm to 200 mm
- PinPoint LED light source with visible red light at 635 nm wavelength
- BluePilot for easy sensing range adjustment
- Dual complementary PNP digital outputs with light/dark switching
- High switching frequency up to 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock and vibration resistant for industrial environments
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor setup and electrical safety.
Applications
- Industrial automation for object detection
- Detecting flat objects in manufacturing processes
- Use in environments requiring precise foreground suppression sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces replacement frequency and waste
- Complies with China-RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

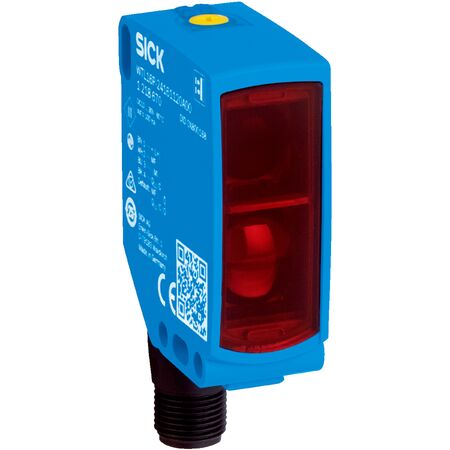

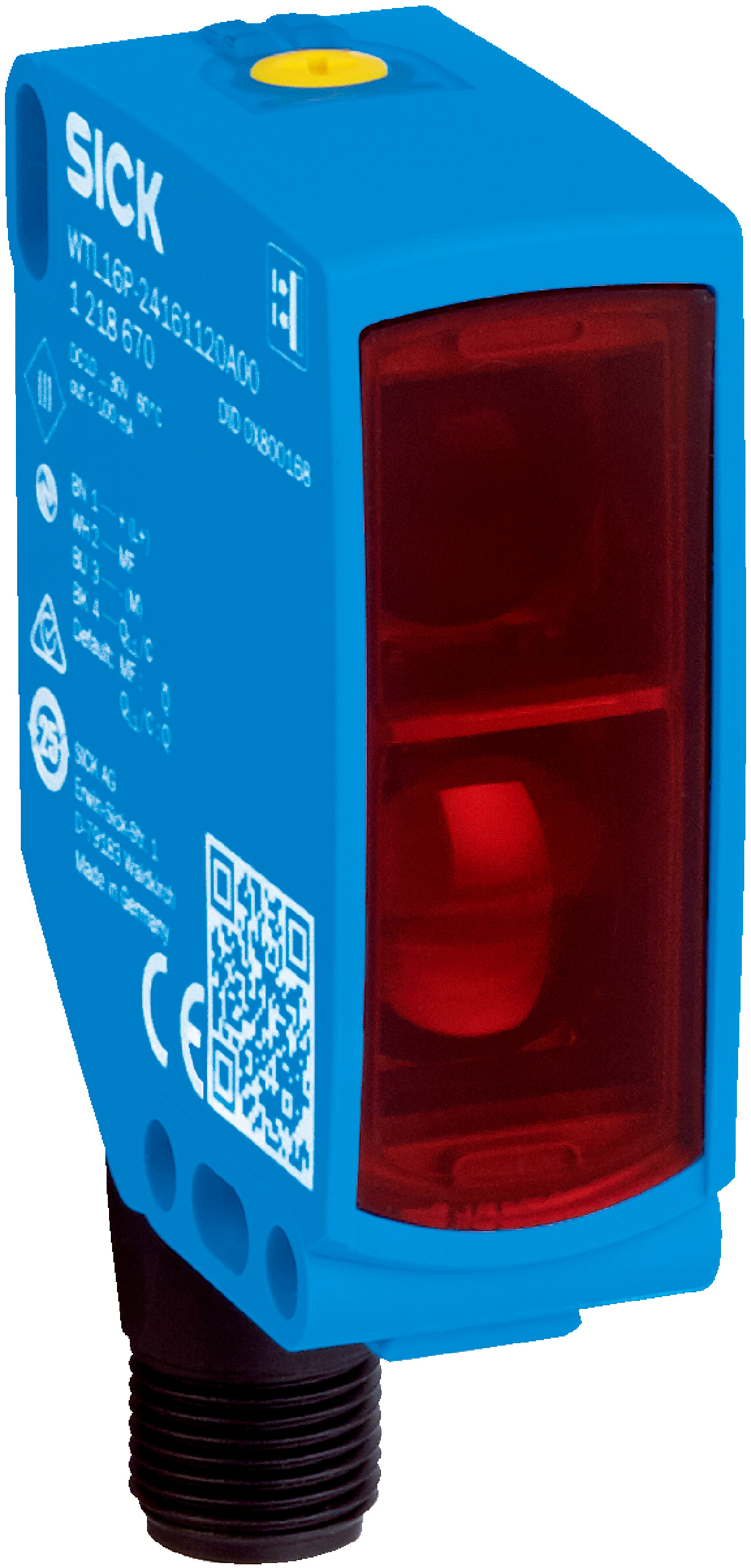

The SICK WTF16P-24812620ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
