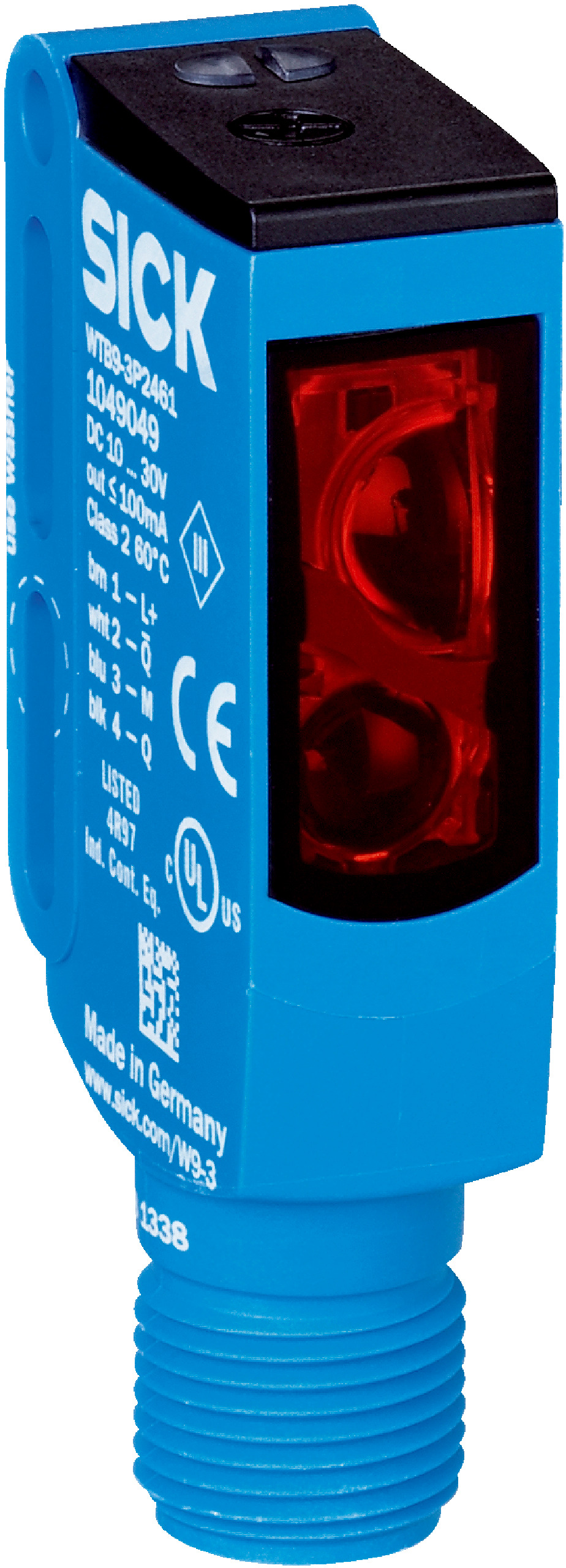

Photoelectric Proximity Sensor WTF9-3P2461 | Foreground Suppression | IP66, IP67, IP69K Rated | by SICK
The Photoelectric Proximity Sensor WTF9-3P2461 is designed for industrial automation, featuring foreground suppression and a high switching frequency of 1,500 Hz. With a robust IP66, IP67, and IP69K rating, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTF9-3P2461 | Foreground Suppression | IP66, IP67, IP69K Rated | by SICK
Brand: SICK
SKU: 1052990
Alternatively Known As: Photoelectric Proximity Sensor, Foreground Suppression Sensor, SICK Proximity Sensor, Industrial Object Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Maximum output current: ≤ 100 mA
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light wavelength: 650 nm
- Light spot size: Ø 4.5 mm at 75 mm distance
- Adjustment: Potentiometer, 5 turns
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with foreground suppression
- Visible red light with PinPoint LED light source
- Adjustable sensing range from 20 mm to 200 mm
- Compact rectangular housing with M3 mounting hole
- High switching frequency of 1,500 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Light/dark switching mode with complementary PNP output
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK WTF9-3P2461 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
