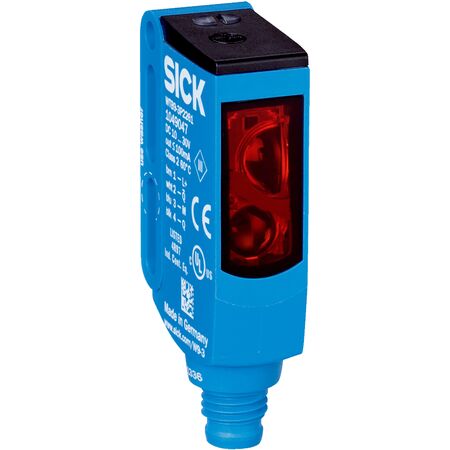

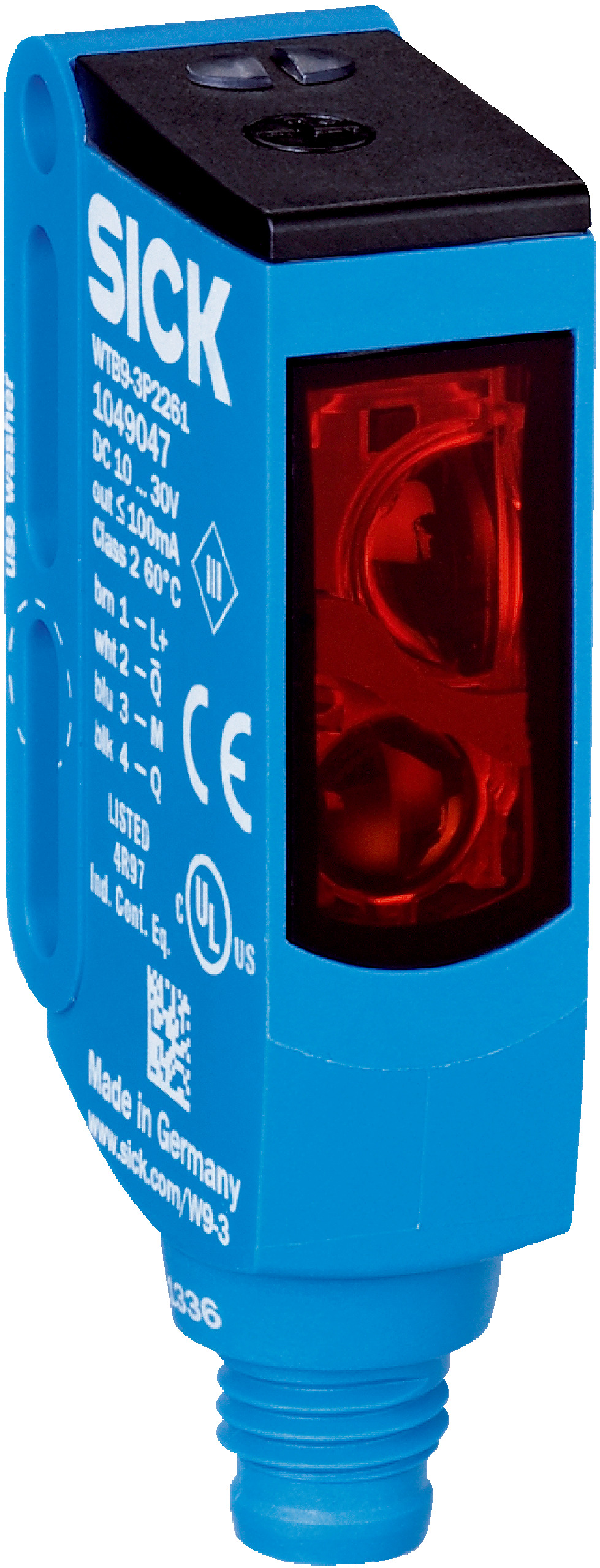

Photoelectric Proximity Sensor | Foreground Suppression | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring foreground suppression and a fast response time of under 2.5 ms. With a robust IP66/IP67/IP69K rating, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Foreground Suppression | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1053767
Alternatively Known As: Photoelectric proximity sensor, Foreground suppression sensor, SICK proximity sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- MTTFD: 1,030 years
- Mission time: 20 years
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with foreground suppression
- Rectangular housing design with visible red light emission
- Sensing range from 20 mm to 200 mm, max 350 mm
- PinPoint LED light source with 650 nm wavelength
- Potentiometer adjustment with 5 turns
- Cable DOL-0804-W02 included
- High protection rating: IP66, IP67, IP69K
- Operating temperature range from -40 °C to +60 °C
- Plastic housing made of VISTAL® and optics made of PMMA
- Fast response time under 2.5 ms and switching frequency of 200 Hz
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable design reduces waste and replacement frequency
- High protection rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTF9-3P2261P03 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
