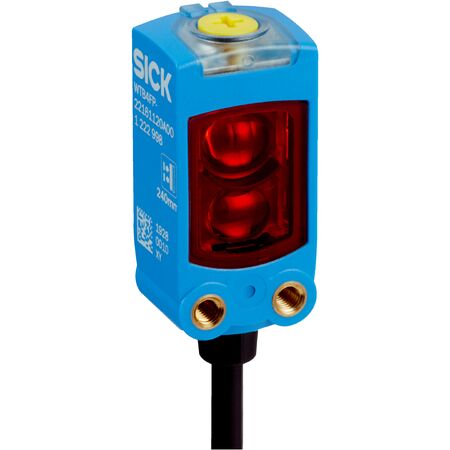

Photoelectric Proximity Sensor | Foreground Suppression | Adjustable Threshold | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 0 mm to 100 mm and adjustable switching thresholds for optimal performance. With a robust IP66/IP67 rated housing and a fast response time of ≤ 650 µs, this sensor is perfect for environments requiring reliable proximity sensing and is compliant with multiple international standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Foreground Suppression | Adjustable Threshold | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1113182
Alternatively Known As: Photoelectric proximity sensor, Foreground suppression sensor, IO-Link photoelectric sensor, SICK proximity sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with foreground suppression
- Sensing range: 0 mm to 100 mm, adjustable switching threshold 15 mm to 100 mm
- Minimum object height at 40 mm distance: 0.8 mm on black background
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: 2 mm x 2 mm at 50 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Switching frequency: up to 750 Hz
- Response time: ≤ 650 µs
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: 4-wire cable, 2 m length, PVC
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with foreground suppression
- Adjustable switching threshold for background suppression from 15 mm to 100 mm
- Sensing range from 0 mm to 100 mm, recommended 30 mm to 70 mm for best performance
- PinPoint LED light source with visible red light at 635 nm wavelength
- Rectangular light spot consisting of two parallel light spots, 2 mm x 2 mm at 50 mm distance
- BluePilot Teach-Turn adjustment for setting sensing range
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- Dual complementary push-pull digital outputs (PNP/NPN) with light/dark switching
- High switching frequency up to 750 Hz and fast response time ≤ 650 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Resistance to cleaning agents certified by ECOLAB
- Certified with multiple international standards including cULus and IO-Link
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Flat object detection in manufacturing processes
- Use in environments requiring precise proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 25 mA)
- Durable IP66/IP67 rated housing reduces environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTF4FD-1H162220A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
