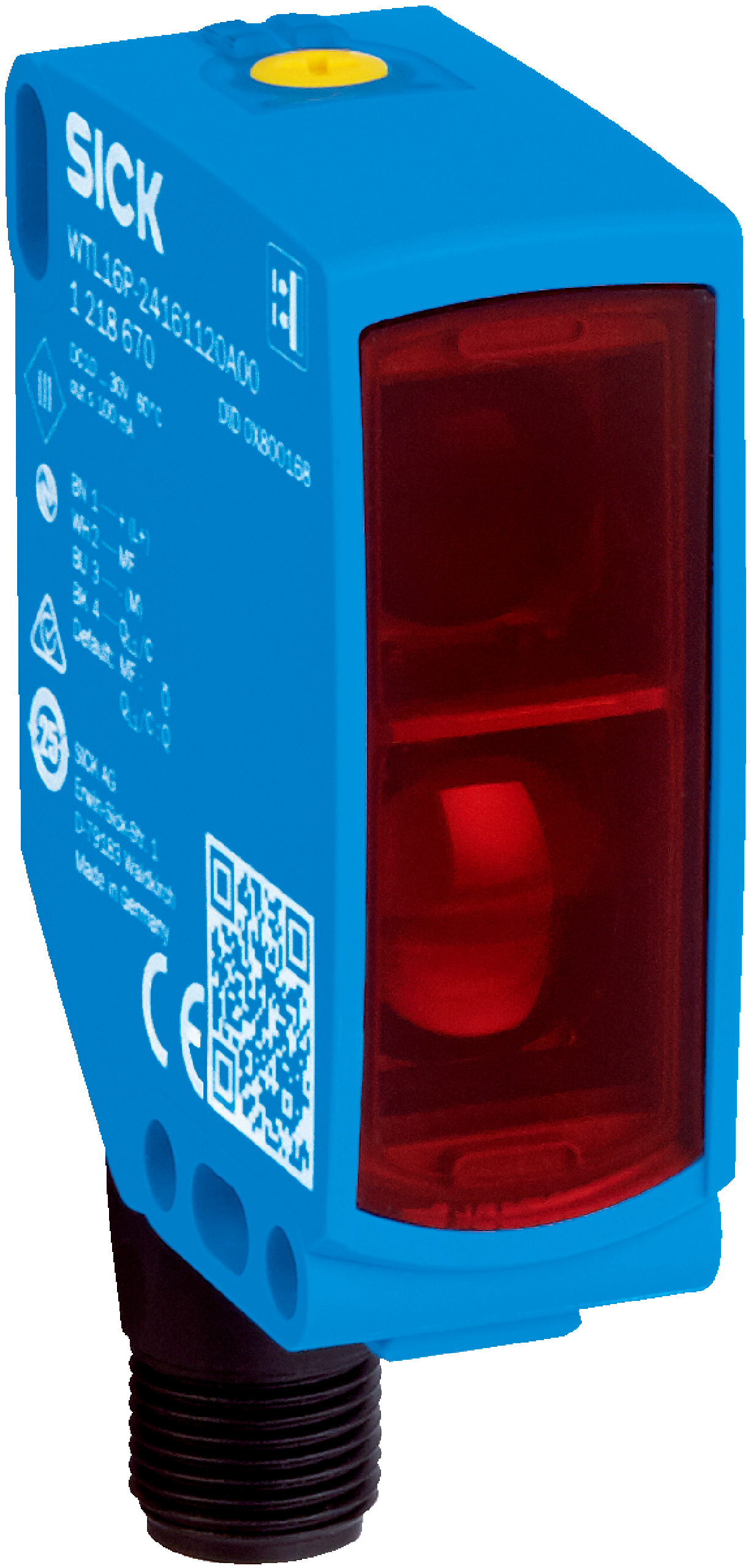

Photoelectric Proximity Sensor | Foreground Suppression & NarrowBeam Technology | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring foreground suppression and NarrowBeam technology. With an adjustable switching threshold and a PinPoint LED light source, it ensures reliable performance in various applications, including conveyor systems and manufacturing processes. Built to withstand harsh environments, this sensor operates within a wide temperature range and offers high shock and vibration resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 mm to 400 mm, recommended 100 mm to 300 mm
- Adjustable switching threshold for background suppression: 100 mm to 400 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 3 mm at 200 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with foreground suppression and NarrowBeam technology
- Adjustable switching threshold for background suppression from 100 mm to 400 mm
- PinPoint LED light source with visible red light at 635 nm wavelength
- High precision with point-shaped light spot of Ø 3 mm at 200 mm distance
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- Dual complementary push-pull digital outputs with light/dark switching
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link configuration.
Applications
- Industrial automation for object detection
- Flat object detection in manufacturing processes
- Background suppression sensing in conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

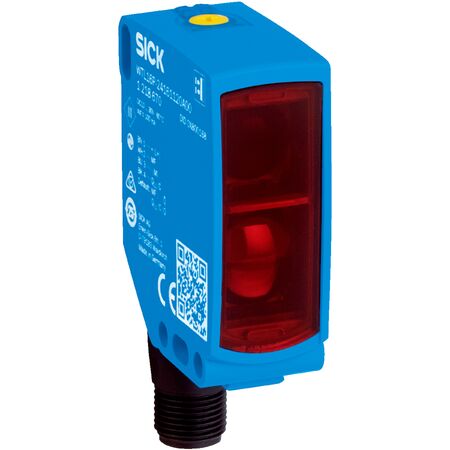

The SICK WTF16P-24161220A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
