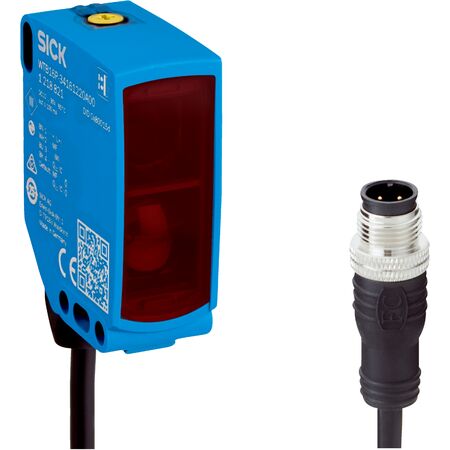

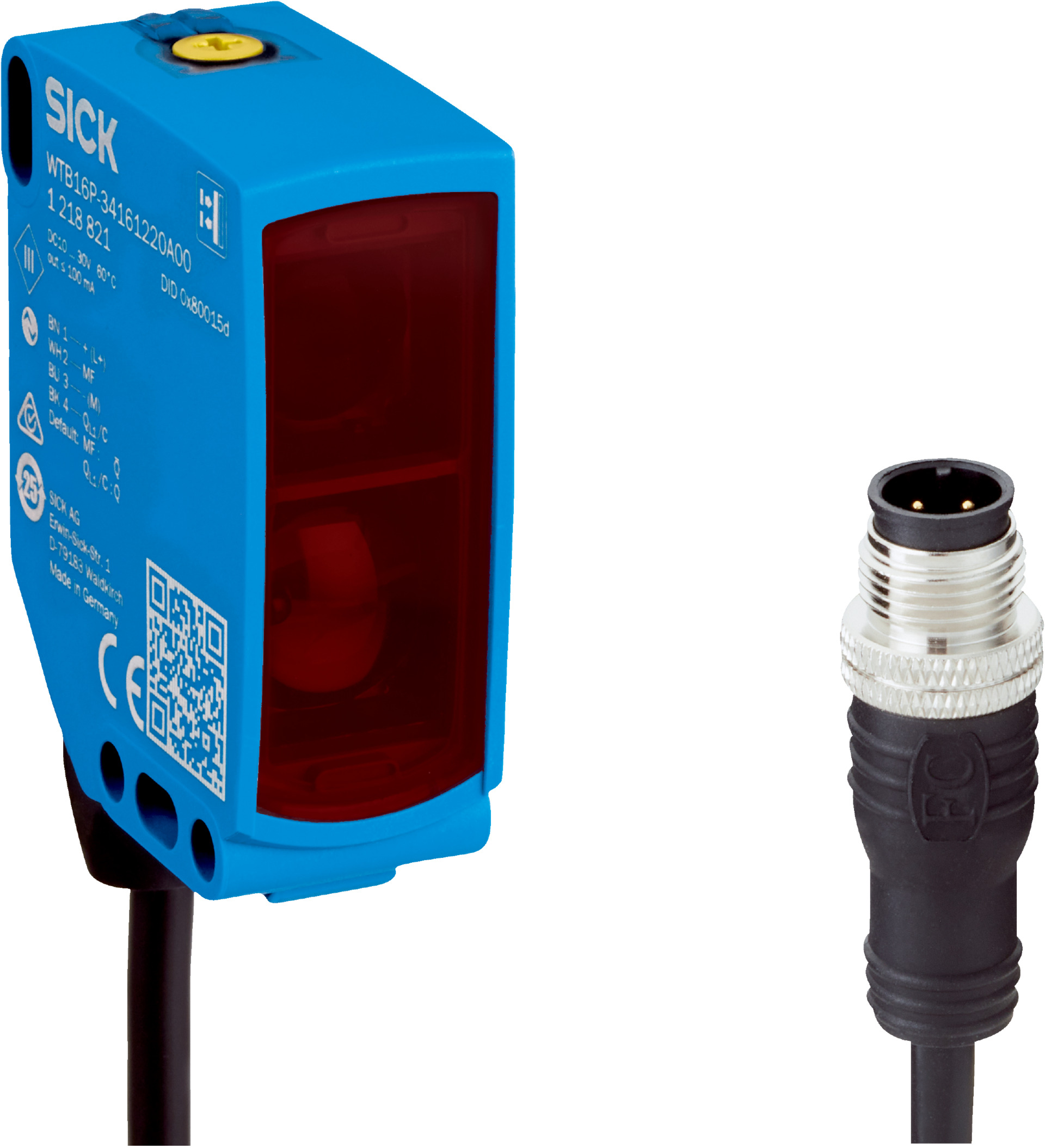

Photoelectric Proximity Sensor | Foreground Suppression & NarrowBeam Technology | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor with foreground suppression and NarrowBeam technology is perfect for industrial automation and precise object detection. With an adjustable sensing range of 0 mm to 400 mm and a PinPoint LED light source, it ensures reliable performance in challenging environments. Built for durability, it features IP66, IP67, and IP69 ratings, making it ideal for applications requiring robust sensing solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with foreground suppression
- Sensing range: 0 mm to 400 mm, adjustable switching threshold 100 mm to 400 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 3 mm at 200 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Cable material: PVC
- Male connector material: Plastic VISTAL®
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with foreground suppression and NarrowBeam technology
- Adjustable sensing range from 0 mm to 400 mm with best performance between 100 mm and 300 mm
- PinPoint LED light source with visible red light and point-shaped light spot
- High LED service life of 100,000 hours at 25°C
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Dual complementary push-pull digital outputs with light/dark switching
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40°C to +60°C
- High shock and vibration resistance
- Certified with multiple conformity declarations including cULus and ECOLAB
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup for optimal performance.
Applications
- Industrial automation for object detection
- Detecting flat objects in manufacturing processes
- Use in environments requiring precise background suppression sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTF16P-34161220A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
