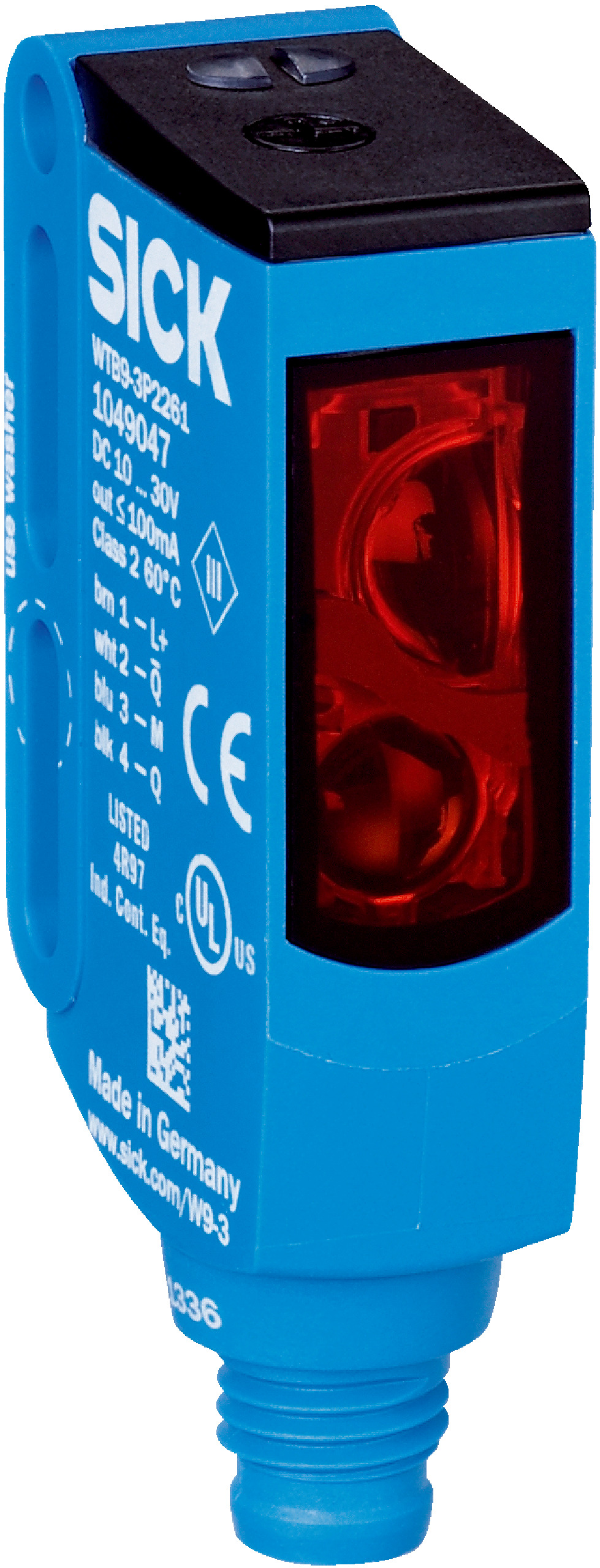

Photoelectric Proximity Sensor | Foreground Suppression | PNP Output | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring foreground suppression and a fast response time of under 2.5 ms. With a robust IP66/IP67/IP69K rating, it's perfect for object detection in manufacturing and safety monitoring applications, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Foreground Suppression | PNP Output | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1053880
Alternatively Known As: Photoelectric proximity sensor, Foreground suppression sensor, PNP output proximity sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Male M8, 4-pin connector
- Circuit protection: Types A, B, C
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light spot size: Ø 4.5 mm at 75 mm distance
- Sensing range max on aluminum: 500 mm
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with foreground suppression
- Rectangular housing design with visible red light
- Sensing range from 20 mm to 200 mm, max 350 mm
- PinPoint LED light source with 650 nm wavelength
- Potentiometer adjustment with 5 turns
- High protection rating: IP66, IP67, IP69K
- Operating temperature range from -40 °C to +60 °C
- Plastic VISTAL® housing and PMMA optics material
- Fast response time under 2.5 ms and switching frequency of 200 Hz
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper wiring and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing ensures long product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

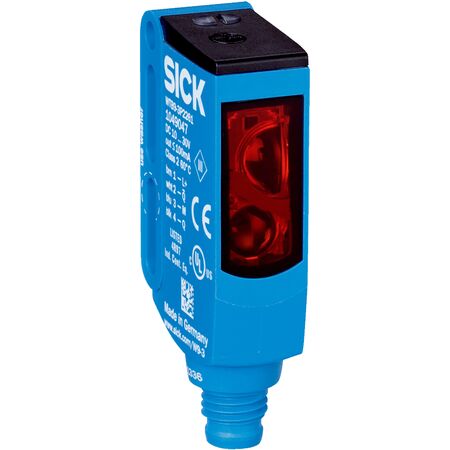

The SICK WTF9-3P2261S01 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
