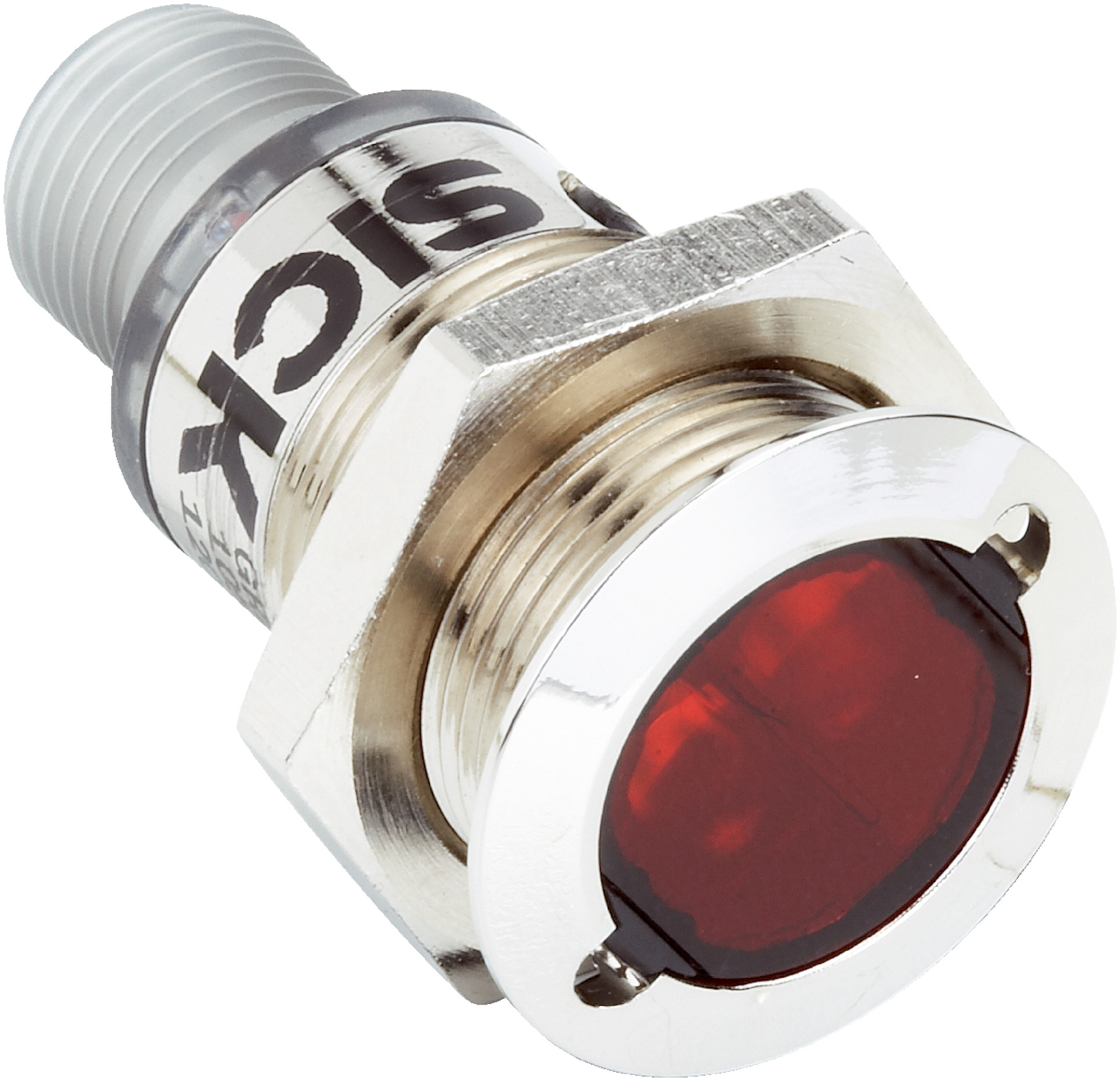

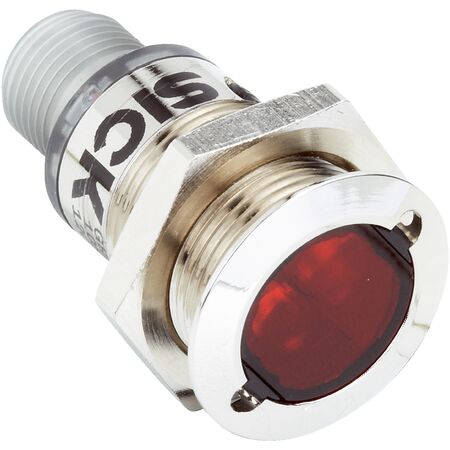

Photoelectric Proximity Sensor GRTB18S-N241Z | IP67 Rated | Fast Response Time | Background Suppression | by SICK
The Photoelectric Proximity Sensor GRTB18S-N241Z is designed for industrial automation, featuring a sensing range of 20 mm to 150 mm and a fast response time of under 500 µs. With its robust IP67 rated enclosure and background suppression capabilities, this sensor is perfect for manufacturing process control and packaging systems, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GRTB18S-N241Z | IP67 Rated | Fast Response Time | Background Suppression | by SICK
Brand: SICK
SKU: 1076109
Alternatively Known As: Photoelectric sensor, Proximity sensor, Background suppression sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, D
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Axial, fully flush optical axis
- Sensing range from 20 mm to 150 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection
- Robust metal housing with nickel-plated brass and ABS
- IP67 rated enclosure for dust and water protection
- Fast switching frequency of 1000 Hz and response time under 500 µs
- Male M12 4-pin connector for easy installation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
- Complies with electromagnetic compatibility standards to reduce interference
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRTB18S-N241Z Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
