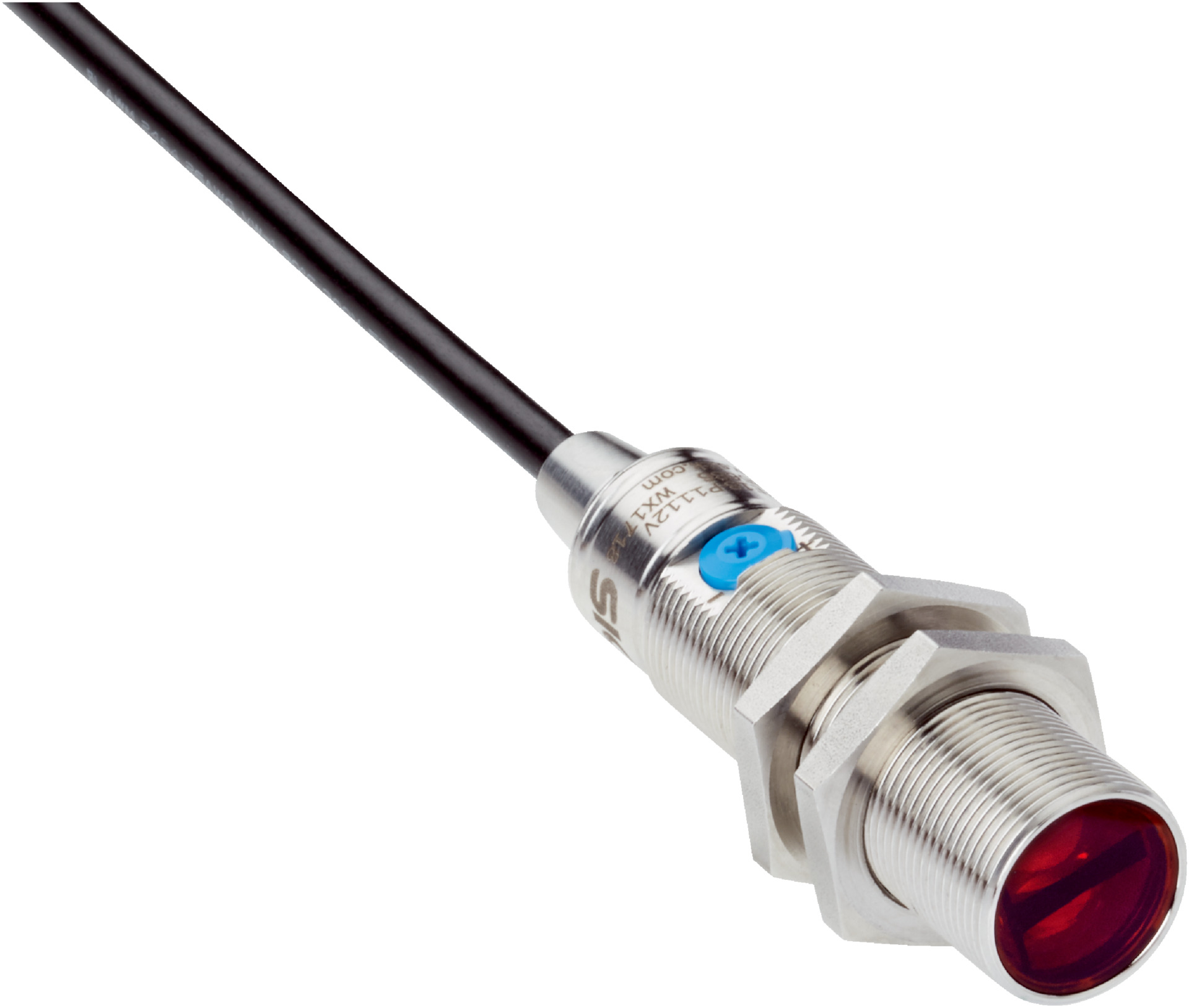

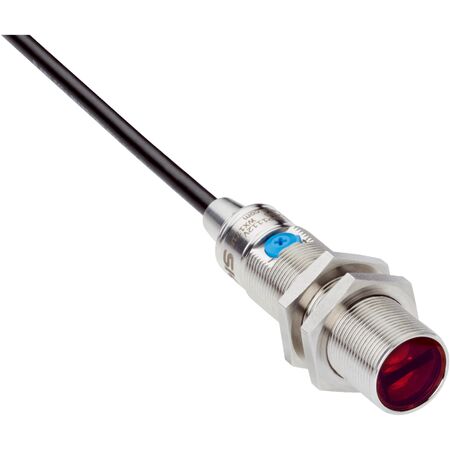

Photoelectric Proximity Sensor GRTE18-N1112V | IP67/IP68/IP69K Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GRTE18-N1112V is designed for industrial automation, featuring a robust stainless steel housing and high protection ratings of IP67, IP68, and IP69K. With a fast response time of under 1,000 µs and a sensing range of 5 mm to 100 mm, it's perfect for hygienic applications and machine safety. This sensor ensures reliable object detection in demanding environments, making it an essential tool for process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GRTE18-N1112V | IP67/IP68/IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1085864
Alternatively Known As: Photoelectric proximity sensor, M18 photoelectric sensor, Red light proximity sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic PMMA
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 73.5mm x 18mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range from 5 mm to 100 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object presence
- Stainless steel V4A housing for durability and hygienic applications
- High protection rating: IP67, IP68, IP69K
- Fast response time under 1,000 µs and switching frequency of 500 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with efficient LED light source
- High ingress protection minimizes environmental contamination and sensor failure
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRTE18-N1112V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
