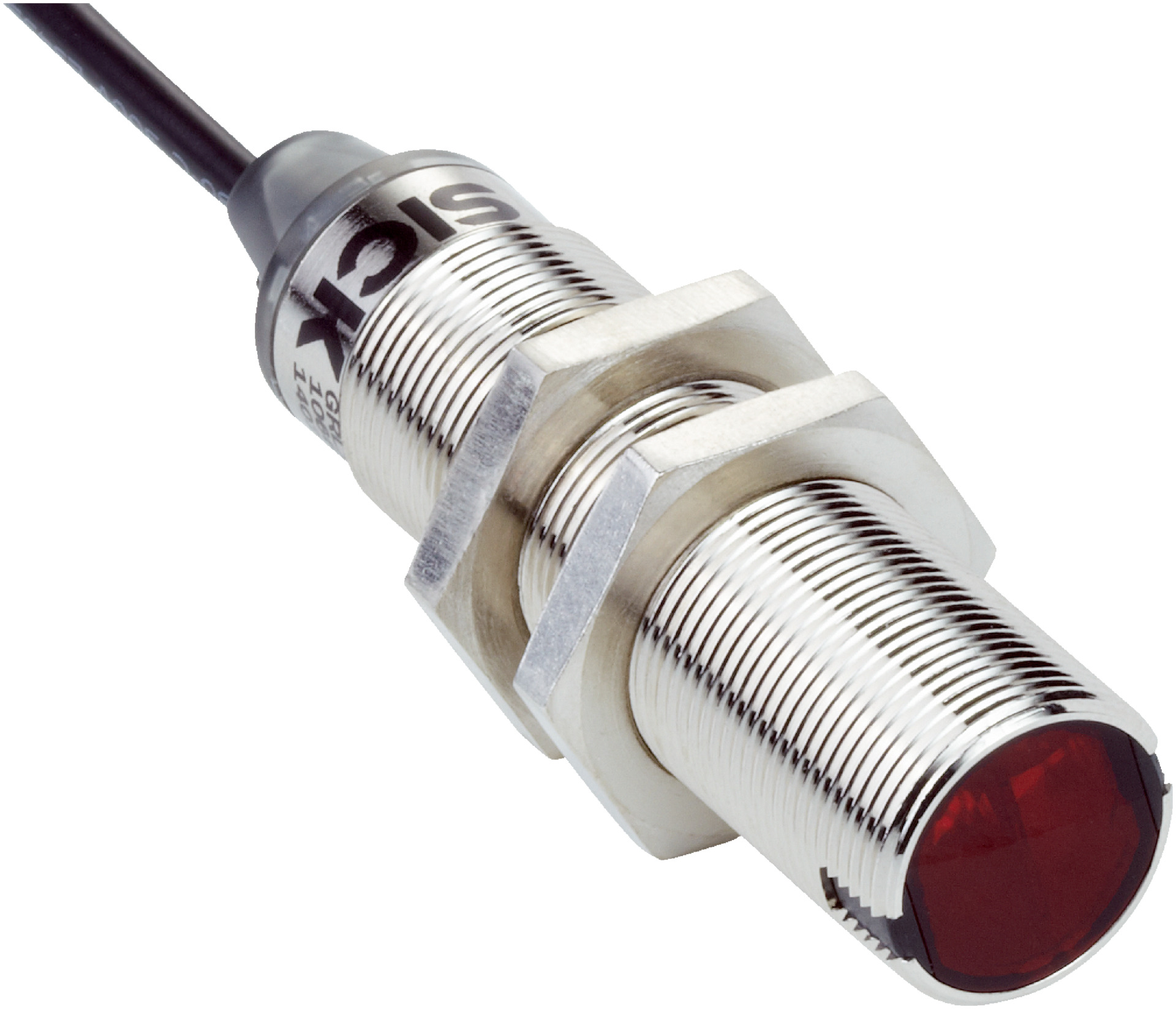

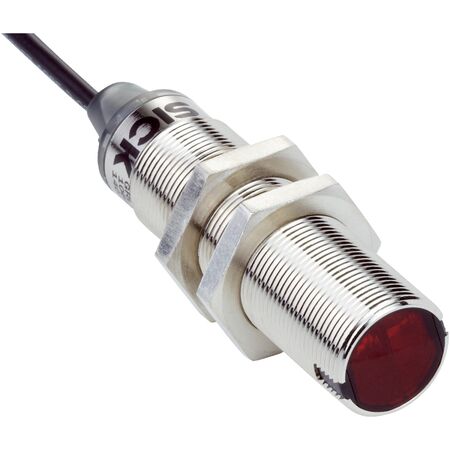

Photoelectric Proximity Sensor GRTE18-N1132 | Infrared LED | IP67 Rated | High Switching Frequency | by SICK
The Photoelectric Proximity Sensor GRTE18-N1132 is designed for precise object detection in industrial automation, featuring a sensing range of 3 mm to 350 mm and an infrared LED light source with an 850 nm wavelength. With a robust IP67-rated housing and a high switching frequency of 500 Hz, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GRTE18-N1132 | Infrared LED | IP67 Rated | High Switching Frequency | by SICK
Brand: SICK
SKU: 1094756
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range max.: 3 mm to 350 mm
- Type of light: Infrared light
- Light source: LED
- Light spot size at 250 mm: Ø 150 mm
- Wave length: 850 nm
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Connection type: Cable, 4-wire, 2 m
- Cable material: Plastic, PVC
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Metal, nickel-plated brass and ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 72mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Cylindrical housing design with M18 x 1 thread diameter
- Sensing range from 3 mm to 350 mm
- Infrared LED light source with 850 nm wavelength
- Potentiometer adjustment for sensitivity
- Dual LED indicators: green for power, yellow for object detection
- NPN complementary output with light/dark switching mode
- High switching frequency of 500 Hz and response time under 1 ms
- Robust metal housing with nickel-plated brass and ABS
- IP67 rated for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GRTE18-N1132 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
