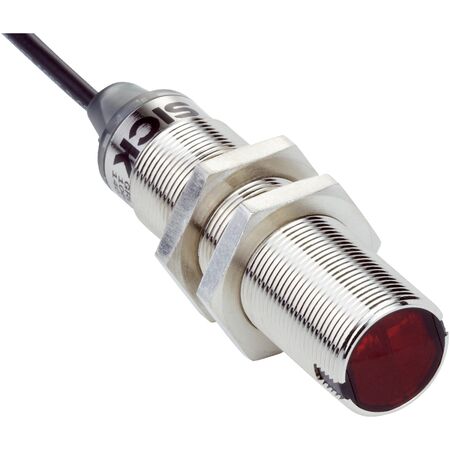

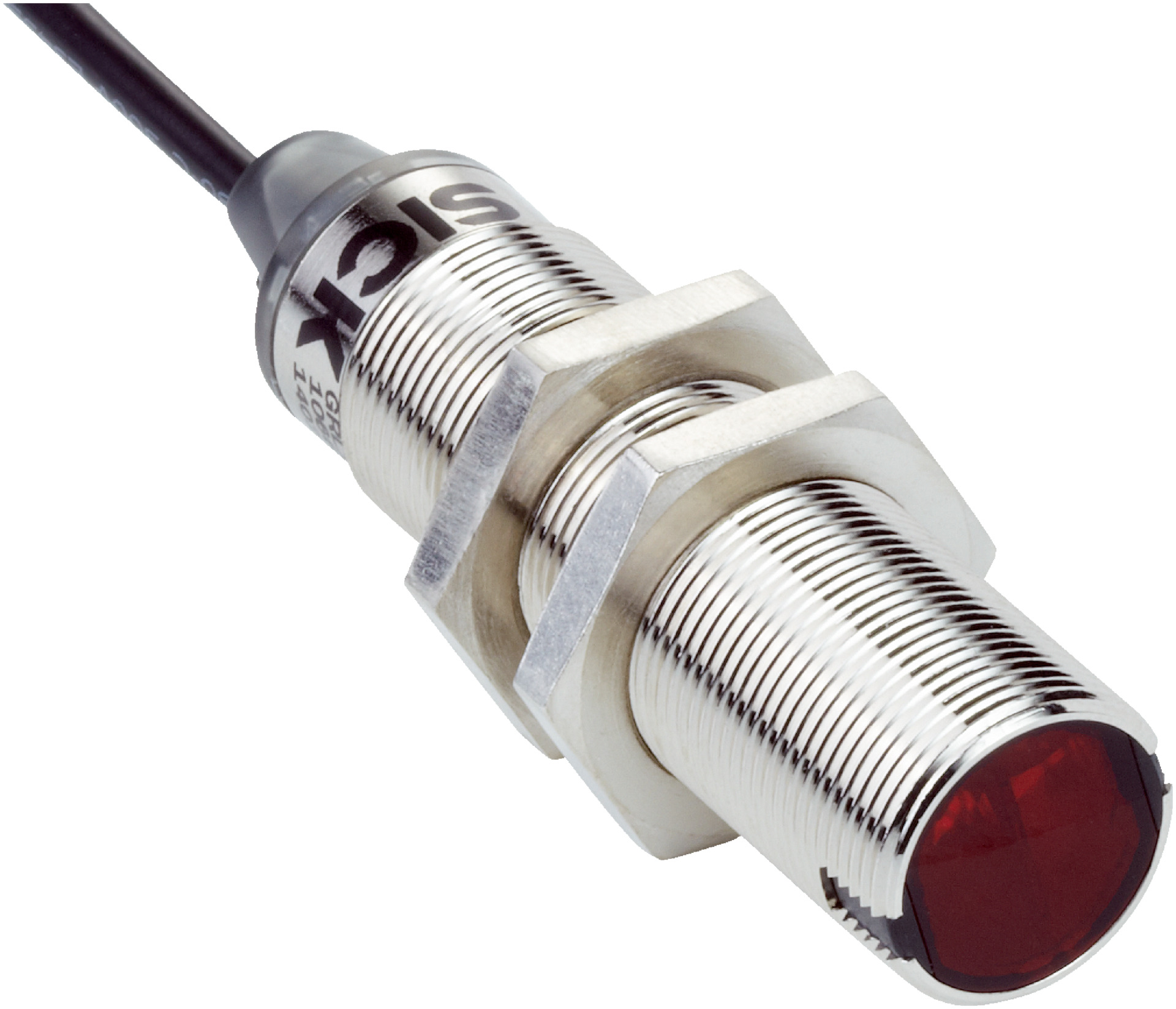

Photoelectric Proximity Sensor GRTE18-P1112 | IP67 Rated | Fast Response Time | Robust Metal Housing | by SICK
The Photoelectric Proximity Sensor GRTE18-P1112 is designed for industrial automation, featuring a fast response time of under 1 ms and an IP67 rated enclosure for dust and water protection. With a sensing range from 5 mm to 100 mm and robust metal housing, it's perfect for object detection in manufacturing and packaging applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GRTE18-P1112 | IP67 Rated | Fast Response Time | Robust Metal Housing | by SICK
Brand: SICK
SKU: 1066542
Alternatively Known As: Photoelectric sensor, Proximity sensor, Optical sensor, Industrial sensor, SICK sensor GRTE18-P1112
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 72mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Axial optical axis with sensing range from 5 mm to 100 mm
- Potentiometer adjustment for sensitivity
- LED indicators for power and object detection status
- Robust metal housing with nickel-plated brass and ABS
- IP67 rated enclosure for dust and water protection
- Fast switching frequency of 500 Hz and response time under 1 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and monitoring in machinery
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GRTE18-P1112 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
