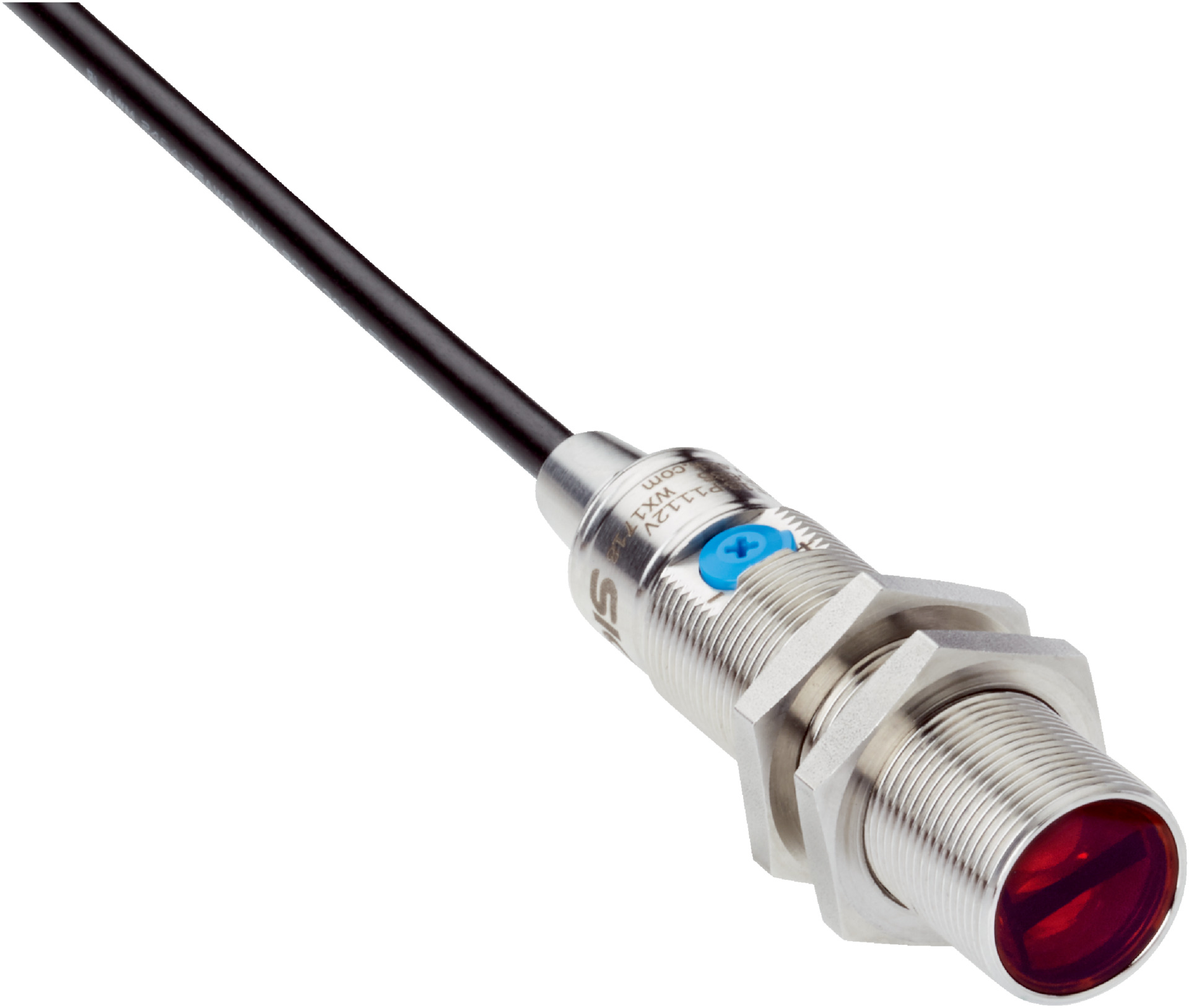

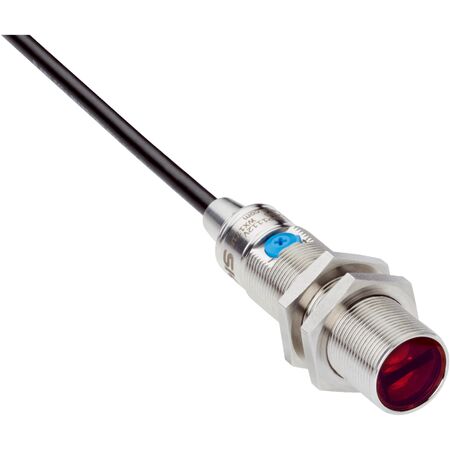

Photoelectric Proximity Sensor GRTE18-P1142V | IP67, IP68, IP69K | Stainless Steel Housing | by SICK
The Photoelectric Proximity Sensor GRTE18-P1142V is designed for industrial automation, featuring a robust stainless steel housing and high protection ratings of IP67, IP68, and IP69K. With a sensing range from 10 mm to 400 mm and a fast response time of less than 1,000 µs, it's perfect for object detection in hygienic and washdown zones, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GRTE18-P1142V | IP67, IP68, IP69K | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1085689
Alternatively Known As: Photoelectric sensor, Proximity sensor M18, Red light sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Response time: less than 1,000 µs
- Switching frequency: 500 Hz
- Cable: 4-wire, 2 m length, PVC material, 0.14 mm² conductor cross section
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic PMMA
- Thread diameter: M18 x 1
- Light wavelength: 650 nm
- Light spot size at 400 mm: Ø 9 mm
- Dimensions (H x L x W): 18mm x 73.5mm x 18mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range from 10 mm to 400 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection status
- Robust stainless steel V4A housing (1.4404, 316L)
- High protection rating: IP67, IP68, IP69K
- Cable connection with 4-wire, 2 m PVC cable
- Fastening nuts included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Certified with China RoHS and ECOLAB for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRTE18-P1142V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
