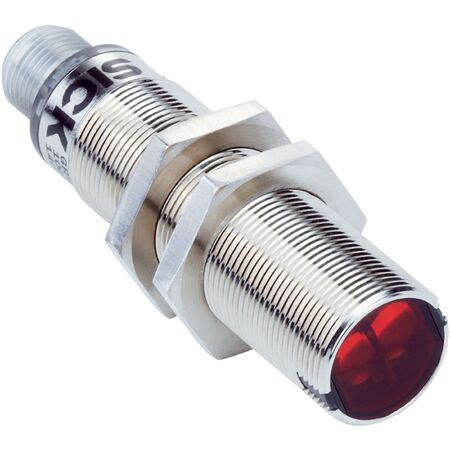

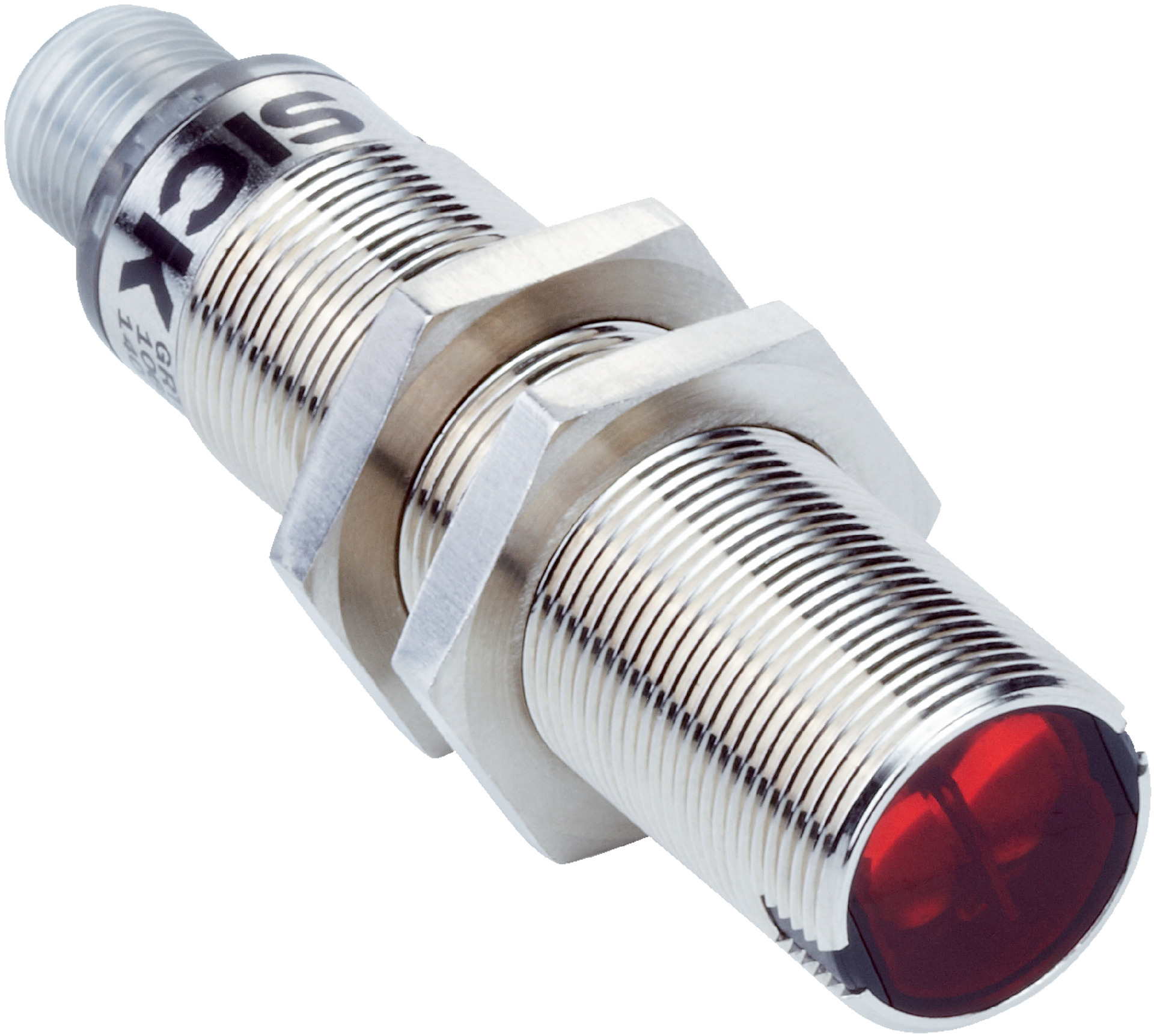

Photoelectric Proximity Sensor GRTE18-P2432 | IP67 Rated | 500 Hz Switching Frequency | Infrared LED | by SICK
The Photoelectric Proximity Sensor GRTE18-P2432 is designed for industrial automation, featuring a robust IP67 rated enclosure and a high switching frequency of 500 Hz. With a sensing range from 3 mm to 350 mm and an infrared LED light source, it ensures reliable object detection in manufacturing and material handling applications. Built for durability and efficiency, this sensor is perfect for enhancing safety and monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GRTE18-P2432 | IP67 Rated | 500 Hz Switching Frequency | Infrared LED | by SICK
Brand: SICK
SKU: 1094776
Alternatively Known As: Photoelectric sensor, Proximity sensor M18, Infrared proximity sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Response time: less than 1,000 µs
- Switching frequency: 500 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Metal, nickel-plated brass and ABS
- Optics material: Plastic, PMMA
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, D
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 74mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Cylindrical housing design with M18 x 1 thread diameter
- Sensing range from 3 mm to 350 mm
- Infrared LED light source with 850 nm wavelength
- Potentiometer adjustment for sensitivity
- LED indicators for power and object detection status
- High switching frequency of 500 Hz
- IP67 rated enclosure for dust and water protection
- Robust metal housing with nickel-plated brass and ABS
- Male M12 4-pin connector for easy installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper connection and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GRTE18-P2432 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
