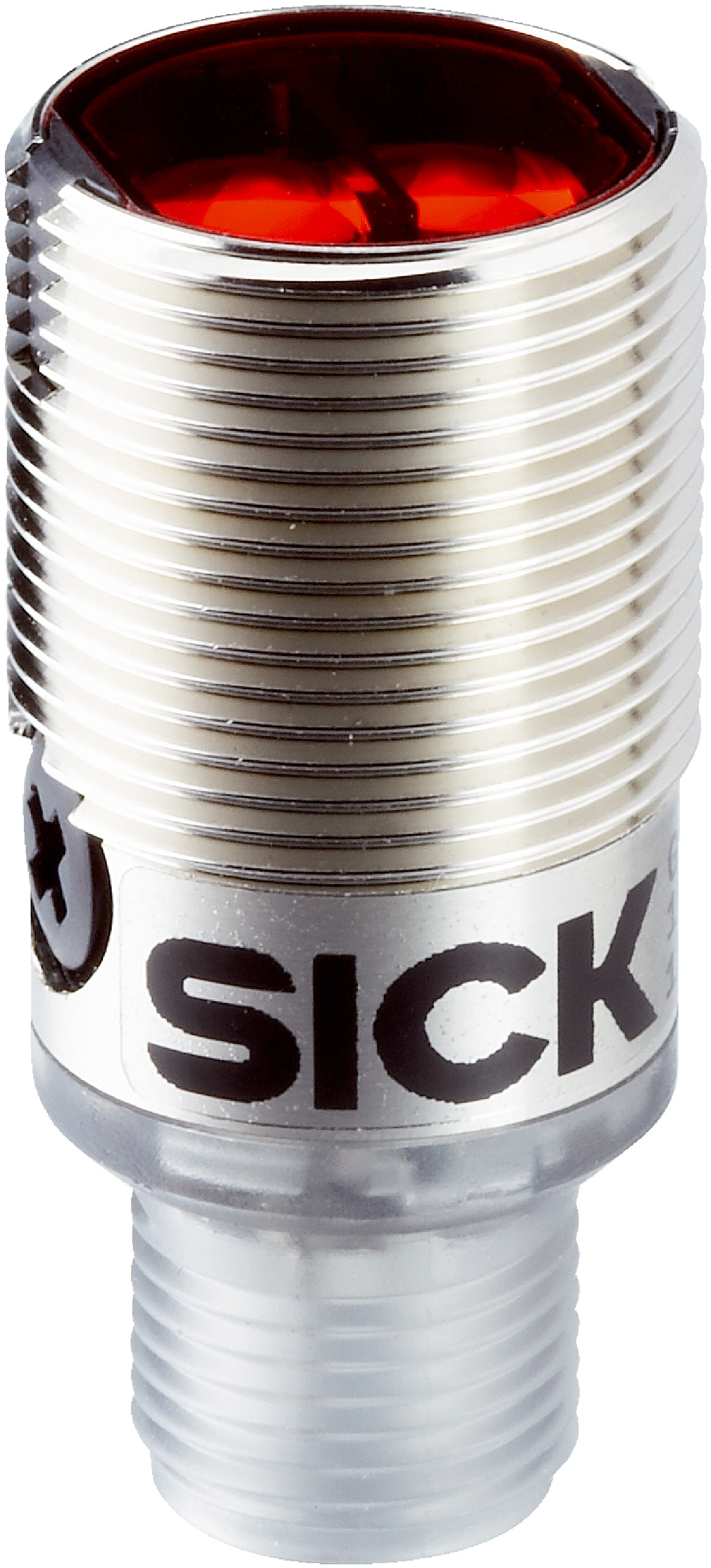

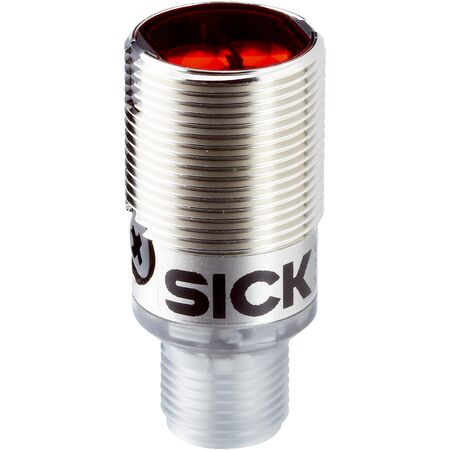

Photoelectric Proximity Sensor GRTE18S-N1112 | IP67 Rated | Fast Response Time | NPN Output | by SICK
The Photoelectric Proximity Sensor GRTE18S-N1112 is designed for industrial automation, featuring a robust IP67 rated enclosure and a fast response time of under 1,000 µs. With a sensing range of 5 mm to 100 mm and a complementary NPN output, this sensor is perfect for object detection in manufacturing and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GRTE18S-N1112 | IP67 Rated | Fast Response Time | NPN Output | by SICK
Brand: SICK
SKU: 1069584
Alternatively Known As: Photoelectric proximity sensor, SICK photo sensor, GRTE18S sensor, industrial photo sensor, NPN photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary function
- Output current max: ≤ 100 mA
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Protection class: III
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Cable: 4-wire, 2 m PVC
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range from 5 mm to 100 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection status
- Robust metal housing with nickel-plated brass and ABS
- IP67 rated enclosure for dust and water protection
- Fast response time under 1,000 µs and switching frequency of 500 Hz
- Cable connection with 2 m PVC cable included
- Complementary NPN switching output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GRTE18S-N1112 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
