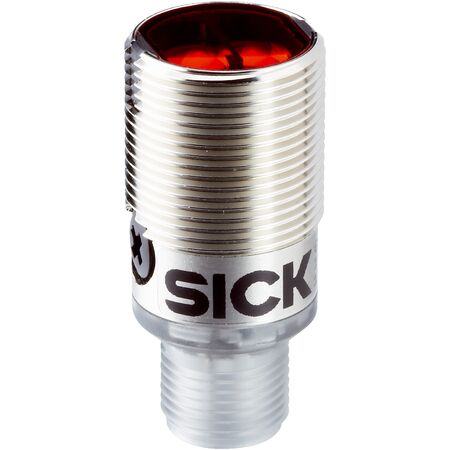

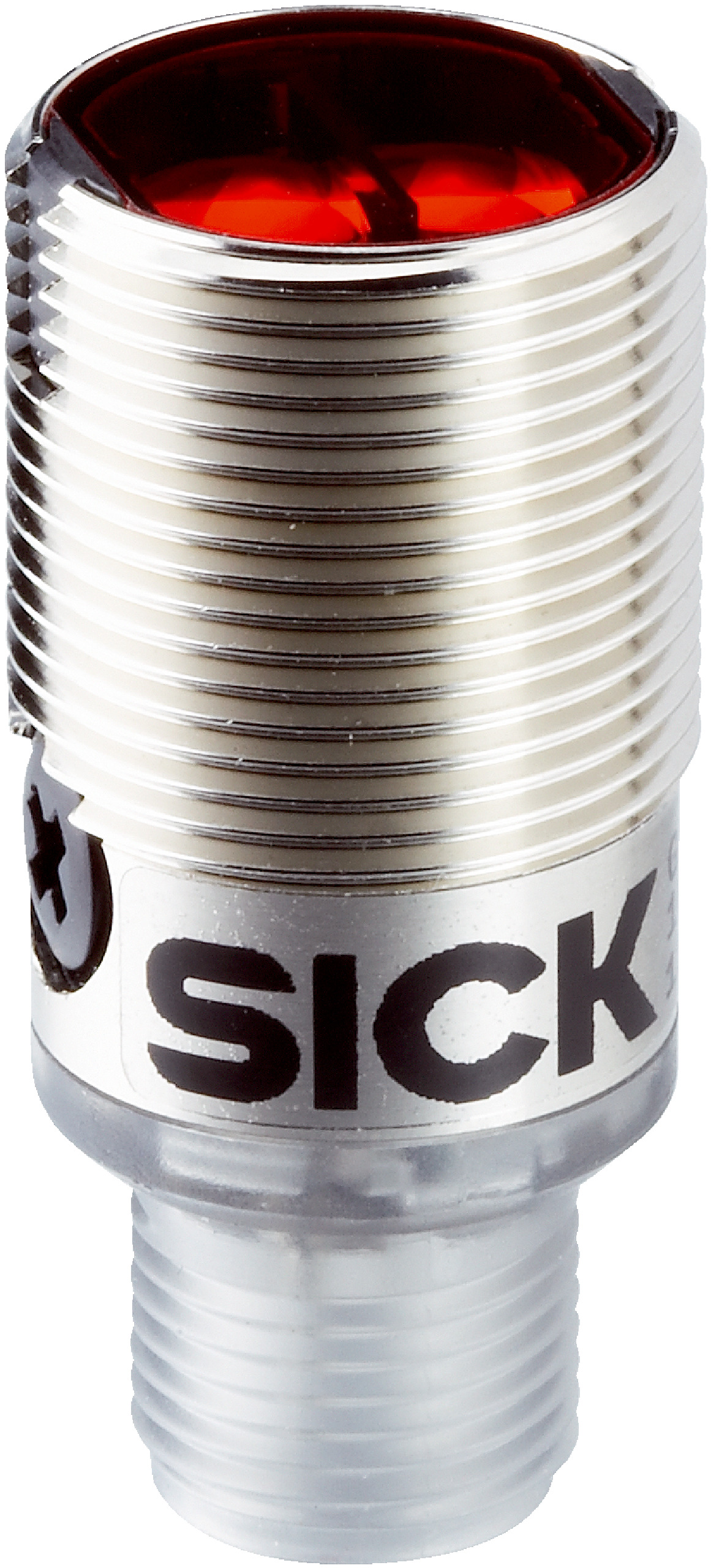

Photoelectric Proximity Sensor GRTE18S-N1442 | IP67 Rated | Fast Response Time | Robust Metal Housing | by SICK
The GRTE18S-N1442 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 10 mm to 400 mm and a fast response time of under 1 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GRTE18S-N1442 | IP67 Rated | Fast Response Time | Robust Metal Housing | by SICK
Brand: SICK
SKU: 1094936
Alternatively Known As: Photoelectric proximity sensor, SICK photo sensor, GRTE18S sensor, industrial photo sensor, red light proximity sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, light switching mode
- Output current max: ≤ 100 mA
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Cable: 3-wire, 5 m, PVC
- Protection class: III
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 38.1mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range from 10 mm to 400 mm, max 550 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object presence
- Robust metal housing with nickel-plated brass and ABS
- IP67 rated enclosure for dust and water protection
- Cable connection with 3-wire, 5 m PVC cable
- High switching frequency of 500 Hz and fast response time under 1 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GRTE18S-N1442 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
