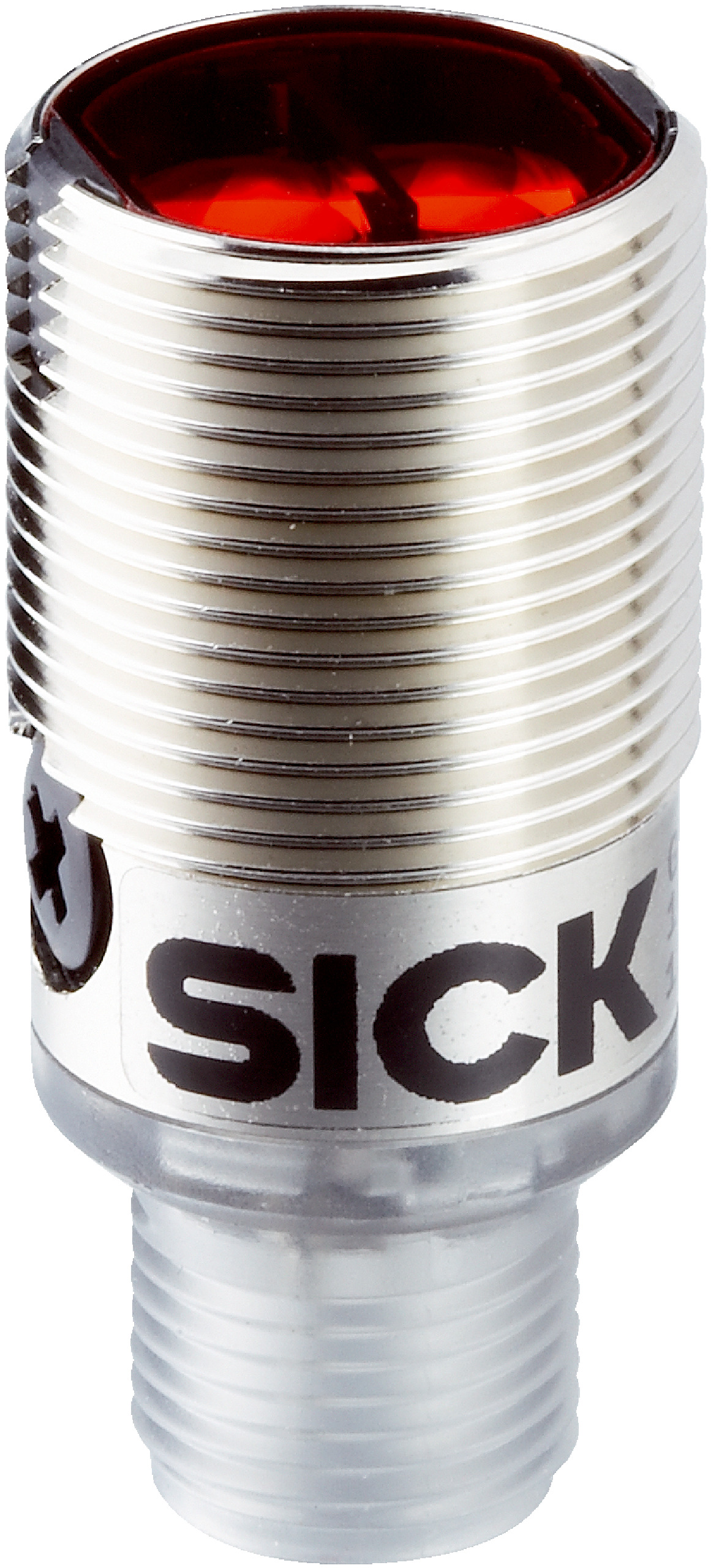

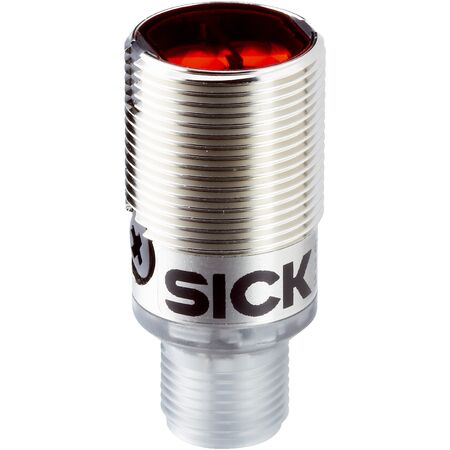

Photoelectric Proximity Sensor GRTE18S-P2412 | IP67 Rated | Fast Switching Frequency | Robust Metal Housing | by SICK
The Photoelectric Proximity Sensor GRTE18S-P2412 is designed for industrial automation, featuring a sensing range of 5 mm to 100 mm and a fast switching frequency of 500 Hz. With its IP67 rated enclosure, this sensor ensures reliable performance in harsh environments, making it ideal for manufacturing process control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GRTE18S-P2412 | IP67 Rated | Fast Switching Frequency | Robust Metal Housing | by SICK
Brand: SICK
SKU: 1069583
Alternatively Known As: Photoelectric sensor, Proximity sensor, Optical sensor, SICK GRTE18S sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Maximum output current: ≤ 100 mA
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Protection class: III
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Connection type: Male M12, 4-pin connector
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range from 5 mm to 100 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object presence
- Robust metal housing with nickel-plated brass and ABS
- IP67 rated enclosure for dust and water protection
- Fast switching frequency of 500 Hz and response time under 1 ms
- Male M12 4-pin connector for easy installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and assembly lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GRTE18S-P2412 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
