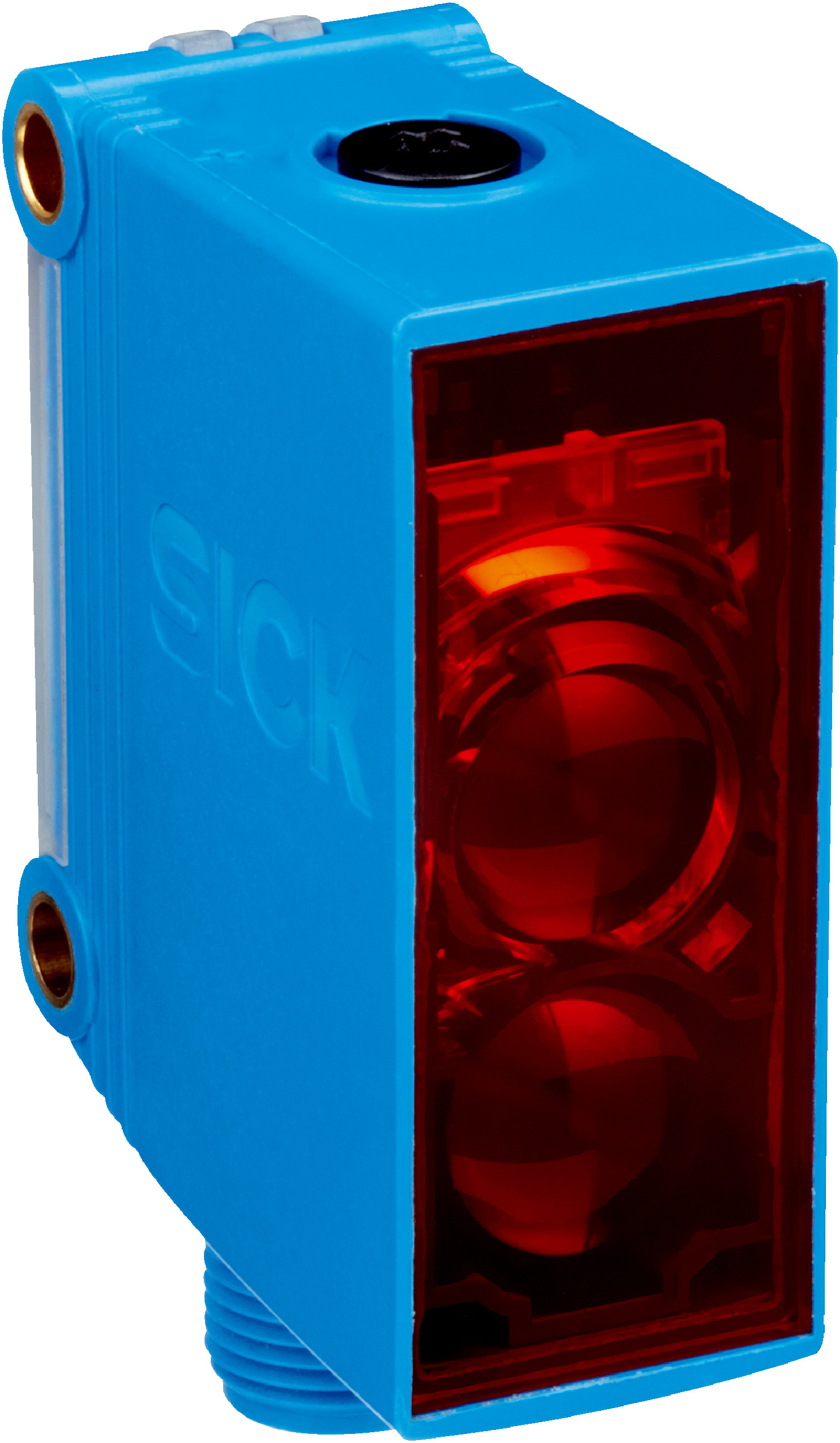

Photoelectric Proximity Sensor GTB10-F4431S12 | Background Suppression | IP67 Rated | 20 mm to 1600 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor GTB10-F4431S12 is designed for industrial automation, featuring a sensing range from 20 mm to 1600 mm and background suppression technology. With a robust IP67 enclosure and a high switching frequency of 200 Hz, this sensor ensures reliable object detection and safety monitoring in various applications, including manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 1600 mm
- Type of light: Visible red light, wavelength 625 nm
- Light spot size: Ø 8 mm at 700 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, complementary output function
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 2,500 µs
- Switching frequency: 200 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Ambient operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 20 mm to 1600 mm
- Rectangular plastic housing with IP67 enclosure rating
- Adjustable potentiometer with 5 turns
- Light/dark switching mode with complementary PNP output
- High switching frequency of 200 Hz and response time ≤ 2,500 µs
- Male connector M12, 4-pin connection
- Circuit protection and electromagnetic compatibility compliant with EN 60947-5-2
- Wide ambient operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB10-F4431S12 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
