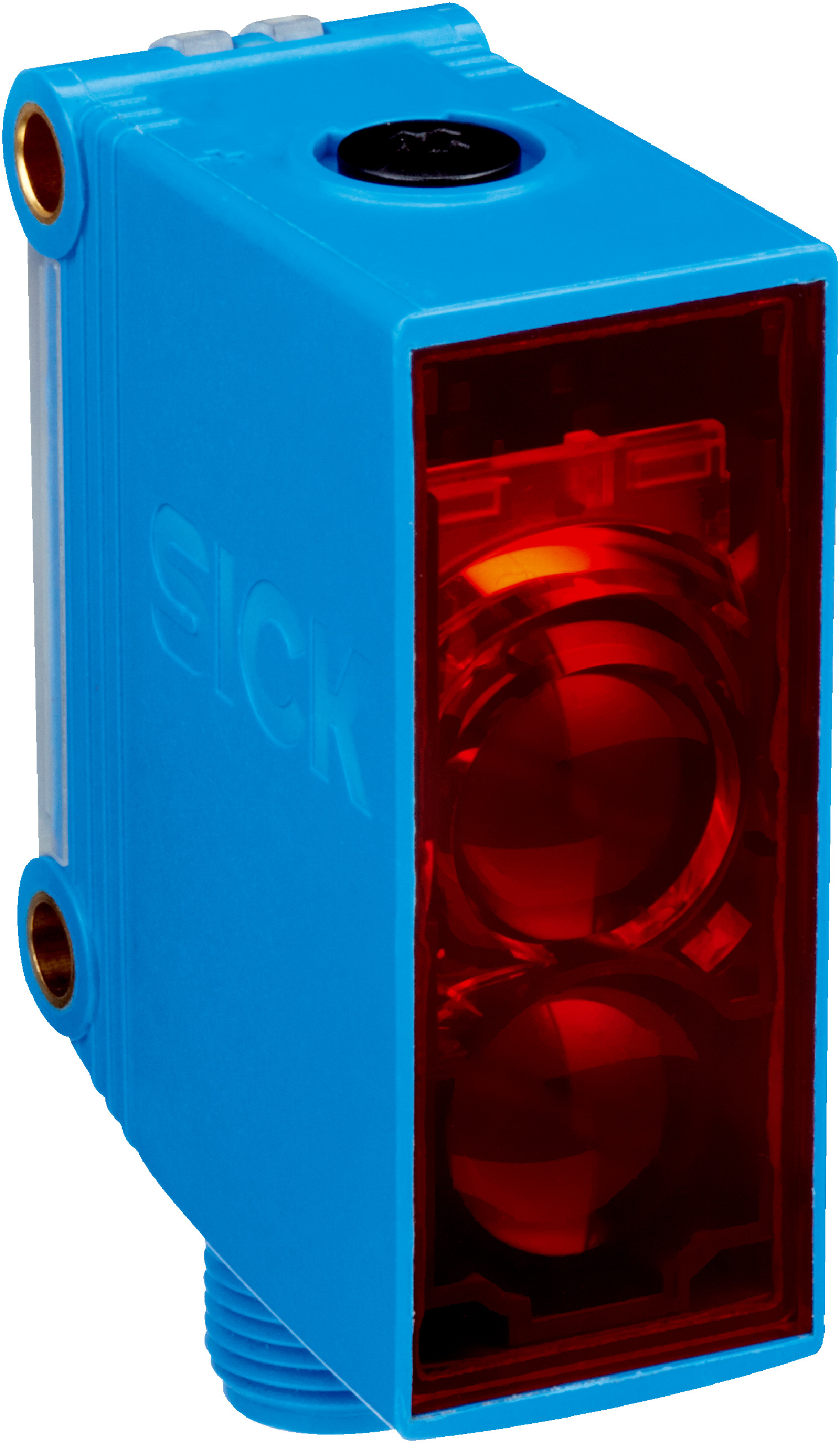

Photoelectric Proximity Sensor GTB10-F4412 | Background Suppression | IP67 Rated | 20 mm to 950 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor GTB10-F4412 is designed for industrial automation, featuring background suppression and a sensing range from 20 mm to 950 mm. With a visible red light and high switching frequency of 1,000 Hz, this sensor is perfect for manufacturing process control and robotics applications. Its durable IP67 rated enclosure ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 950 mm
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size: Ø 8 mm at 700 mm distance
- Wavelength: 625 nm
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range from 20 mm to 950 mm
- PinPoint LED light source with 625 nm wavelength
- Adjustable potentiometer with 5 turns
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Male connector M12, 4-pin connection
- Complementary PNP switching output
- Operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB10-F4412 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications.
