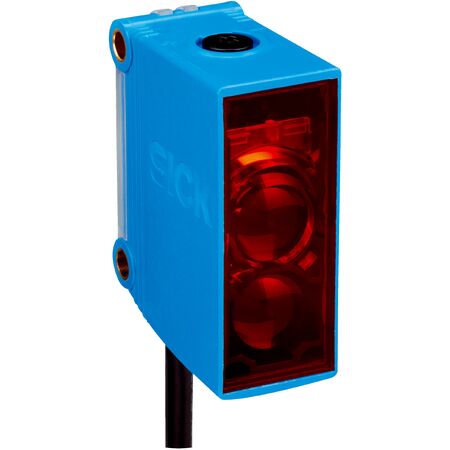

Photoelectric Proximity Sensor GTB10-F7431S14 | Background Suppression | IP67 Rated | 200 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor GTB10-F7431S14 is designed for industrial automation, featuring background suppression and a high switching frequency of 200 Hz. With an IP67 rating for dust and water protection, it operates effectively in challenging environments, making it ideal for manufacturing process control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, complementary function
- Output current max: ≤ 100 mA
- Response time: ≤ 2,500 µs
- Switching frequency: 200 Hz
- Connection type: Cable with M12 male connector, 4-pin, 300 mm
- Cable material: Plastic, PVC
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Light spot size at 700 mm: Ø 8 mm
- Wave length: 625 nm
- Adjustment: Potentiometer, 5 turns
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 20 mm to 1600 mm
- PinPoint LED light source with 625 nm wavelength
- Adjustable potentiometer with 5 turns
- High switching frequency of 200 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Cable with M12 male connector, 4-pin, 300 mm length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB10-F7431S14 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
