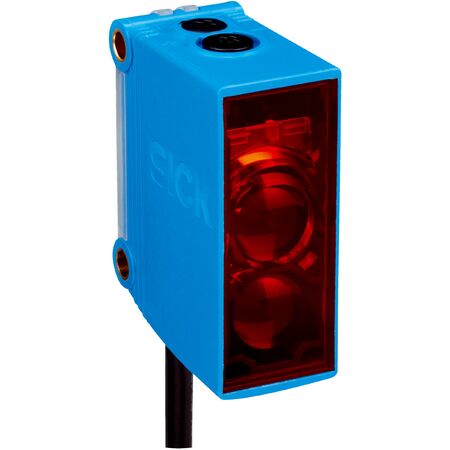

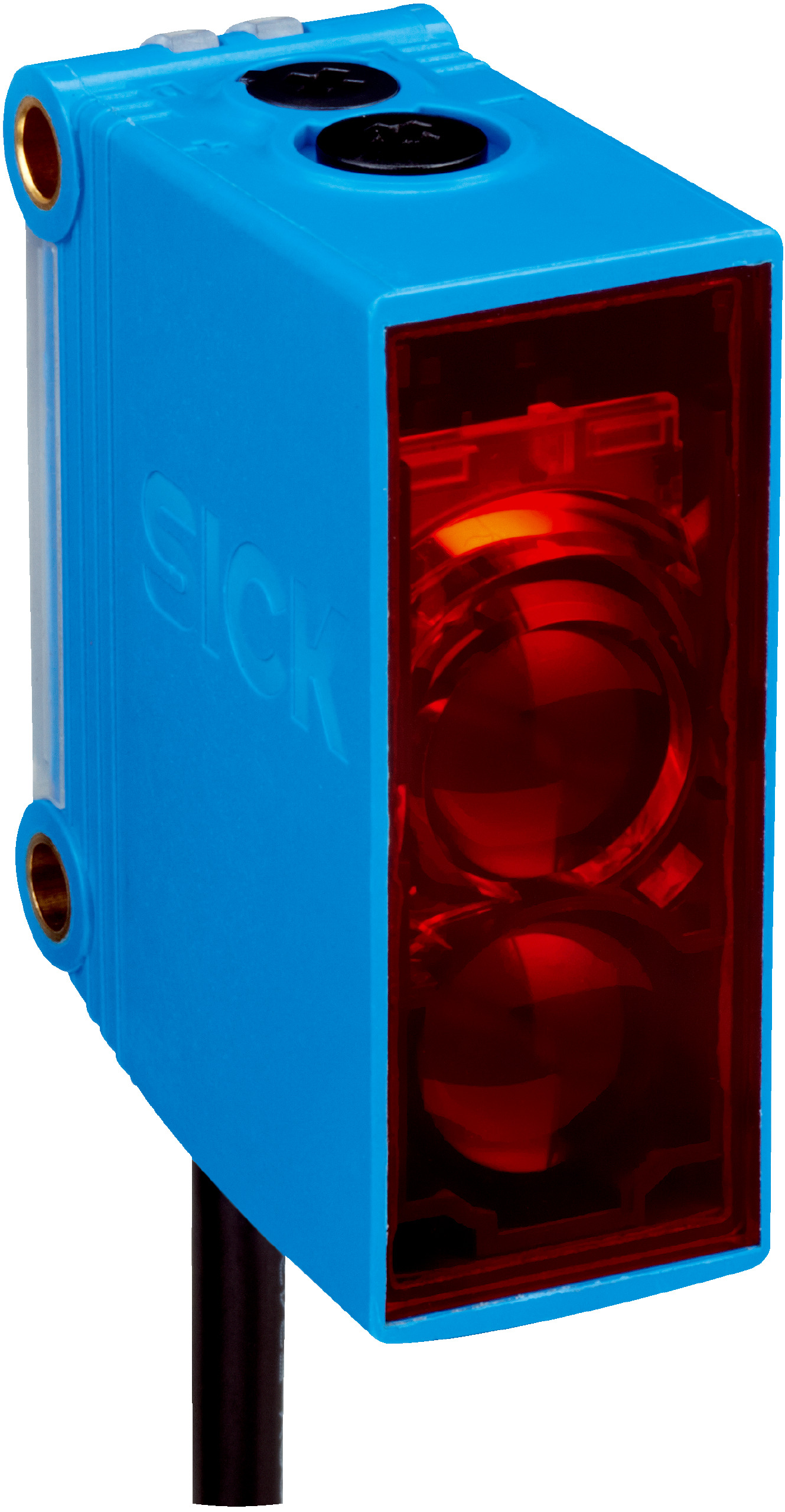

Photoelectric Proximity Sensor GTB10-N1212 | IP67 Rated | NPN Output & Adjustable Sensitivity | by SICK
The GTB10-N1212 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 20 mm to 950 mm and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 1,000 Hz and a response time of ≤ 500 µs, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable object detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -30°C to +60°C
- Ambient storage temperature: -40°C to +70°C
- Electromagnetic compatibility: EN 60947-5-2
- Light source: PinPoint LED, 625 nm wavelength
- Light spot size: Ø 8 mm at 700 mm distance
- Adjustment: Potentiometer, 5 turns
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 20 mm to 950 mm
- PinPoint LED light source with 625 nm wavelength
- Adjustable potentiometer with 5 turns for sensitivity
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB10-N1212 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
