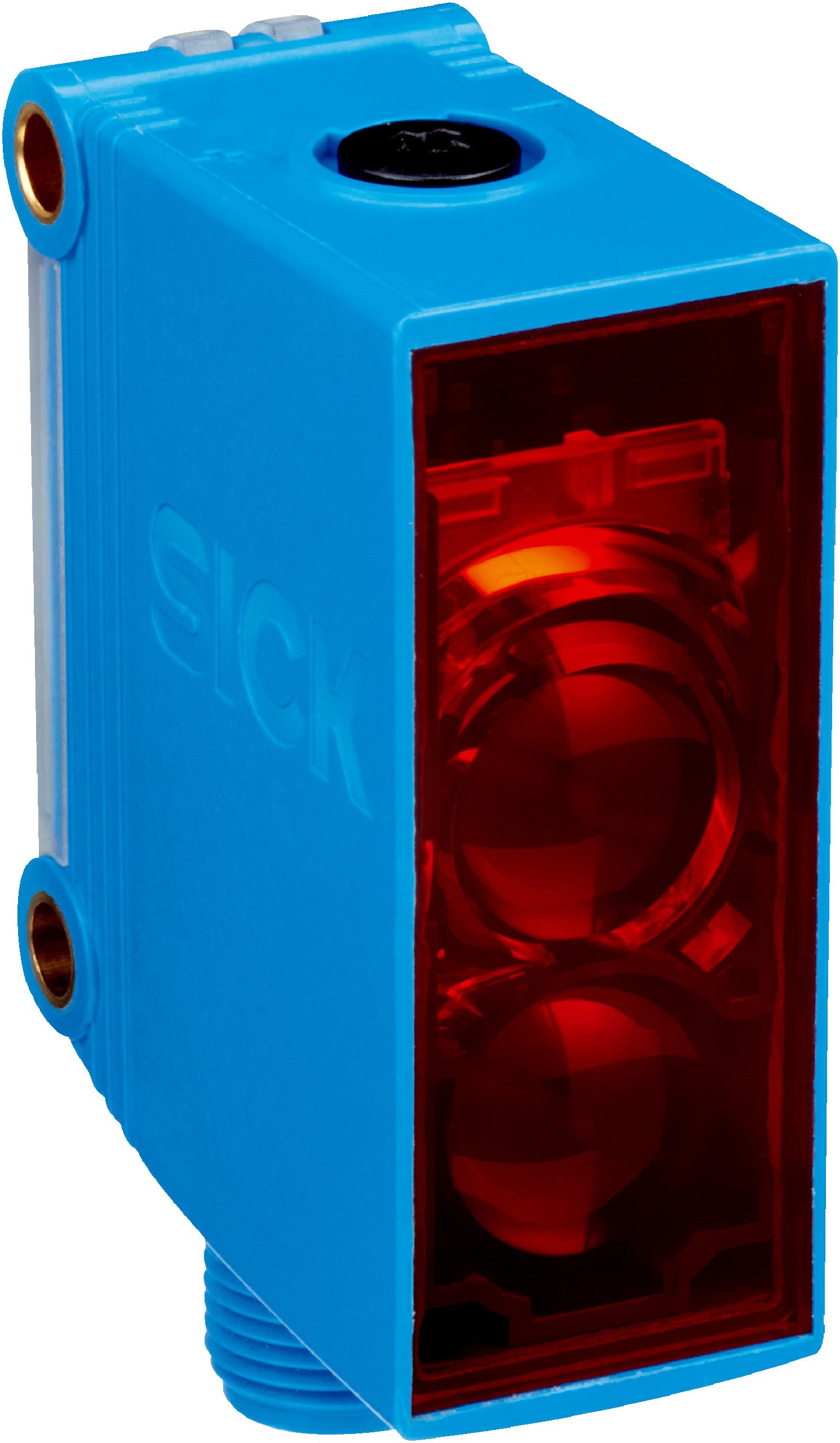

Photoelectric Proximity Sensor GTB10-P4001S23 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The Photoelectric Proximity Sensor GTB10-P4001S23 is designed for industrial automation, featuring a sensing range from 20 mm to 950 mm and a fast response time of ≤ 1 ms. With its IP67 rated housing and background suppression capabilities, this sensor is perfect for precise object detection in packaging machinery and quality control systems, ensuring high functional reliability even on foil-wrapped objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Light wavelength: 625 nm
- Light spot size: Ø 4.5 mm at 300 mm distance
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 20 mm to 950 mm
- High functional reliability on foil-wrapped objects
- Sensing range preset to 400 mm for white (90% remission)
- Potentiometer adjustment with glue for fine tuning
- Rectangular plastic housing with IP67 enclosure rating
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
- Dark switching mode with PNP output
- Male connector M12, 4-pin connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Packaging machinery for foil-wrapped objects
- Material handling systems requiring precise sensing
- Quality control systems in manufacturing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB10-P4001S23 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
