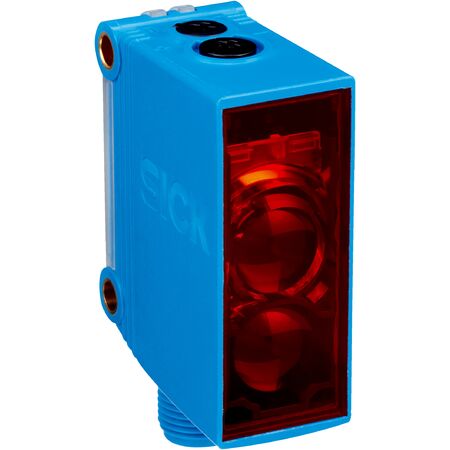

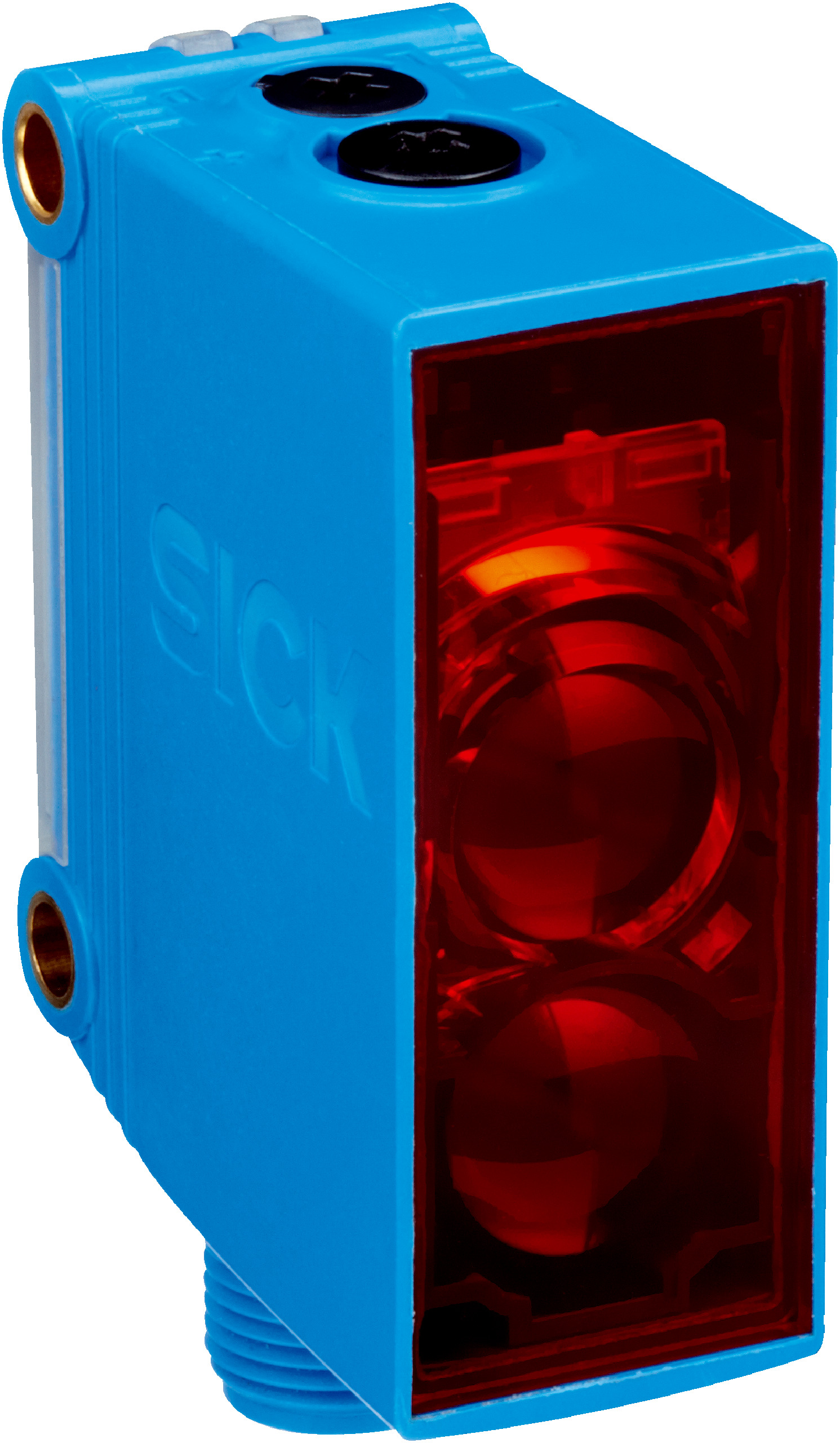

Photoelectric Proximity Sensor GTB10-P4201S22 | IP67 Rated | Infrared LED | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GTB10-P4201S22 is designed for industrial automation, featuring an extended sensing range from 20 mm to 1700 mm and a fast response time of ≤ 500 µs. With an IP67 rated housing and selectable light/dark switching mode, this sensor is perfect for object detection and safety monitoring in manufacturing processes and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Light spot size: Ø 22 mm at 700 mm distance
- Wave length: 850 nm
- Adjustment: Potentiometer, 5 turns
- Housing material: Plastic ABS/PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Connector: Male M12, 4-pin
- EMC standard: EN 60947-5-2
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Extended sensing range from 20 mm to 1700 mm
- Infrared LED light source with 850 nm wavelength
- Rectangular plastic housing with IP67 enclosure rating
- Selectable light/dark switching mode via potentiometer
- Fast response time of ≤ 500 µs and switching frequency of 1000 Hz
- Male connector M12, 4-pin for easy connection
- Circuit protection and electromagnetic compatibility compliant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB10-P4201S22 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
