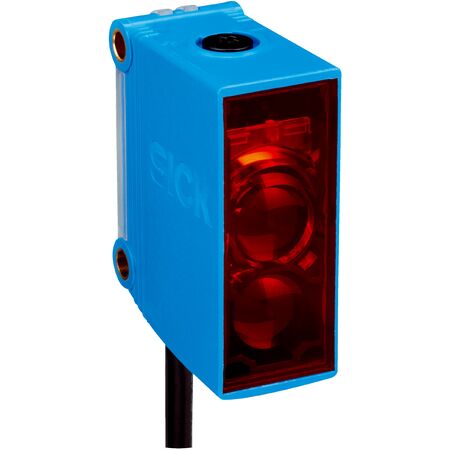

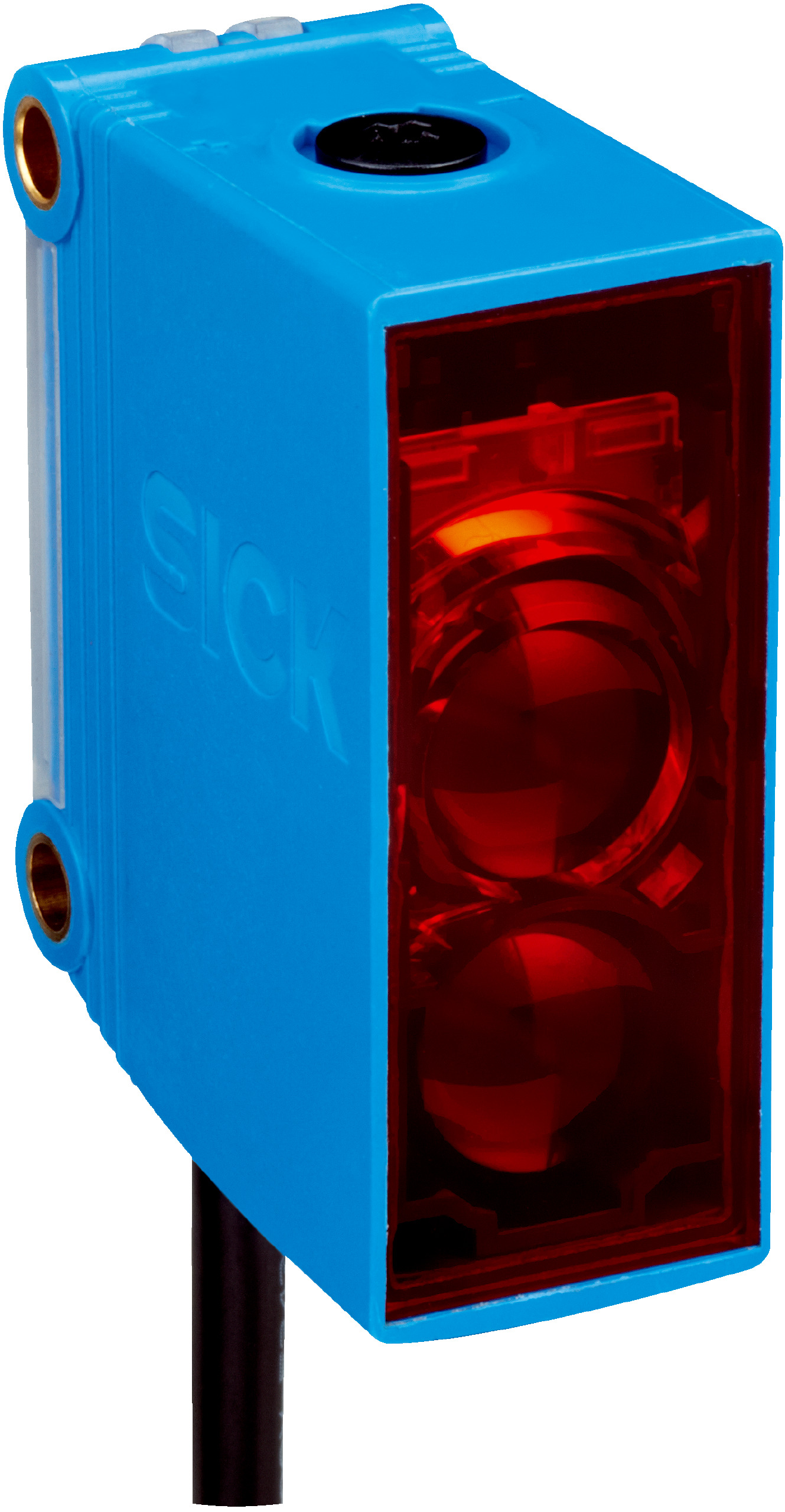

Photoelectric Proximity Sensor GTB10-P7211P11 | IP67 Rated | 1000 Hz Switching Frequency | Adjustable Sensitivity | by SICK
The Photoelectric Proximity Sensor GTB10-P7211P11 is designed for industrial automation, featuring a high switching frequency of 1000 Hz and an IP67 rated enclosure for dust and water protection. With a visible red light emission and adjustable sensitivity, it's perfect for applications in manufacturing process control, material handling systems, and robotics, ensuring reliable object detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 300 mm
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –30 °C to +60 °C
- Ambient storage temperature: –40 °C to +70 °C
- Light spot size: Ø 8 mm at 700 mm distance
- Wave length: 625 nm
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- PinPoint LED light source with 625 nm wavelength
- Adjustable potentiometer with 5 turns for sensitivity tuning
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Cable with M12 male connector, 4-pin, 300 mm length
- Selectable light/dark switching mode with PNP output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling systems
- Packaging machinery
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB10-P7211P11 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
