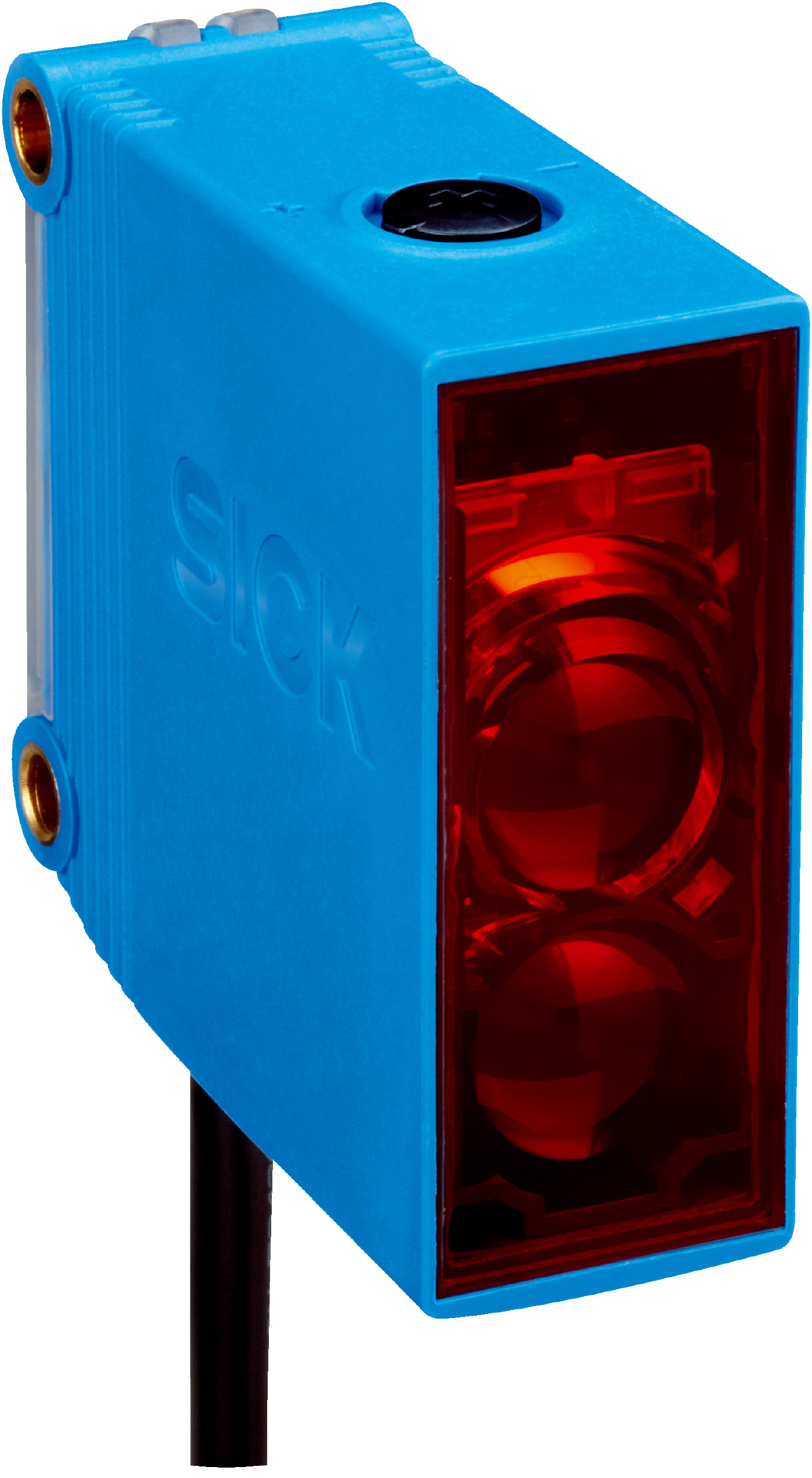

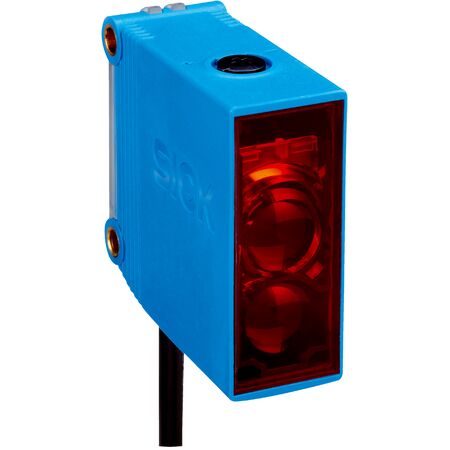

Photoelectric Proximity Sensor GTB10-R3811 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GTB10-R3811 is designed for industrial automation, featuring background suppression and a sensing range of 20 mm to 950 mm. With a robust IP67 rating, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 950 mm
- Light source: PinPoint LED, 625 nm wavelength
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: 5-wire cable, 2 m, PVC
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PMMA
- Relay switching cycles min: 100,000 cycles (3 A)
- EMC standards: EN 60947-5-2, EN 61000-6-3
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range from 20 mm to 950 mm
- PinPoint LED light source with 625 nm wavelength
- Potentiometer adjustment with 5 turns
- Relay SPDT electrically isolated switching output
- Light/dark switching mode
- High protection rating IP67 for harsh environments
- Wide supply voltage range from 24 V AC/DC to 240 V AC/DC
- Fast response time ≤ 10 ms and switching frequency 20 Hz
- Robust plastic ABS/PMMA housing
- Electromagnetic compatibility compliant with EN standards
- Operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 2.5 VA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Compliant with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB10-R3811 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
