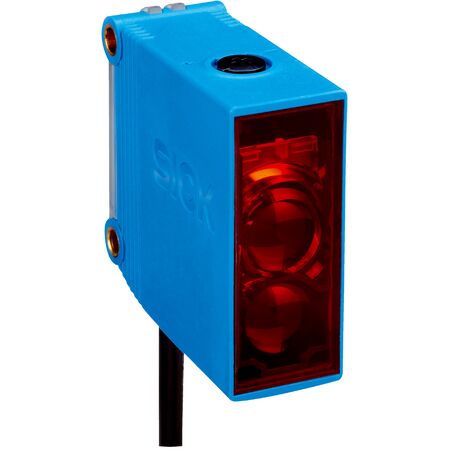

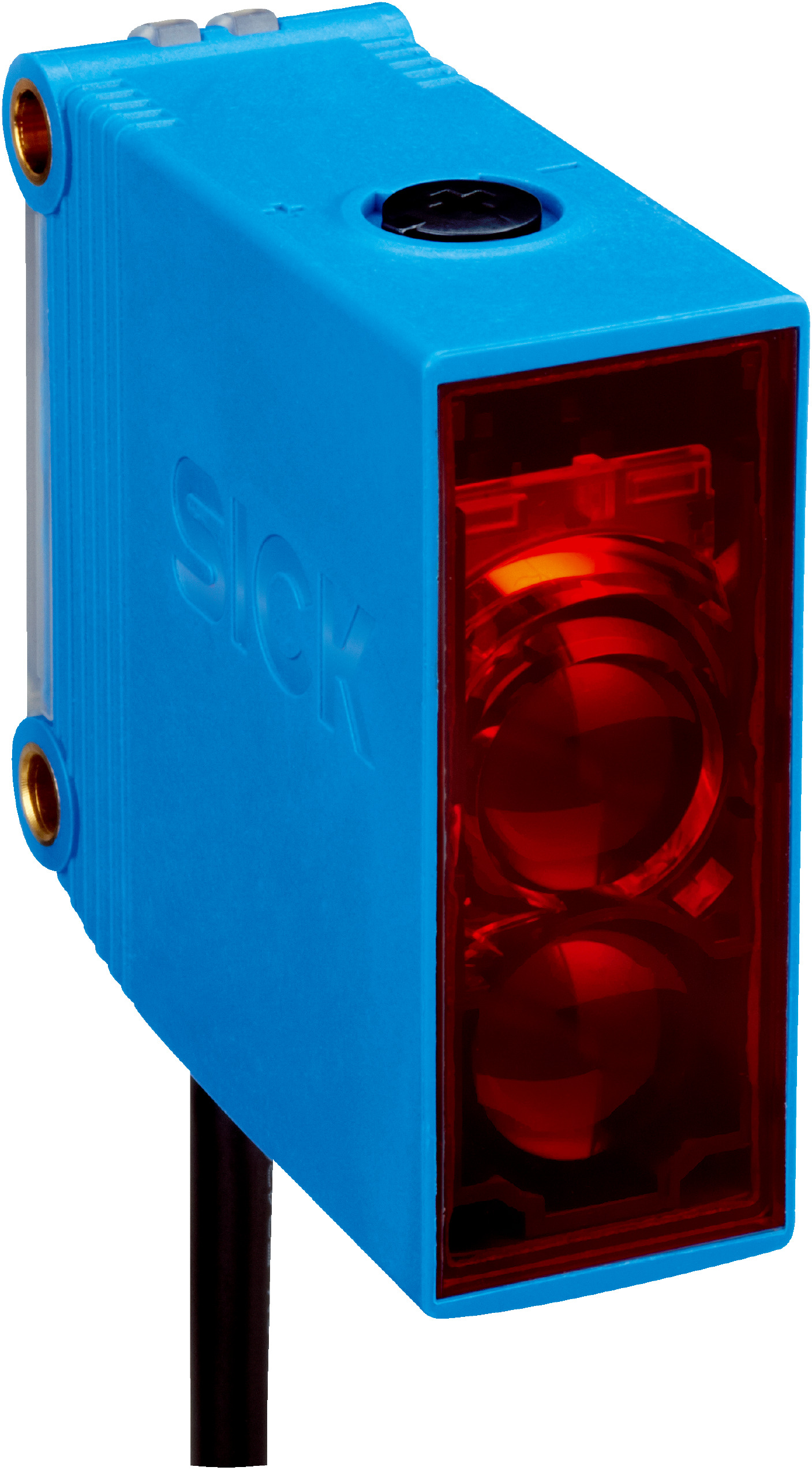

Photoelectric Proximity Sensor GTB10-R9822 | 20mm to 1200mm Sensing Range | IP67 Rated | by SICK
The GTB10-R9822 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 20 mm to 1200 mm and a robust IP67 rating for harsh environments. With a fast response time of ≤ 10 ms and a relay output for reliable switching, this sensor is perfect for object detection in manufacturing processes, material handling, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 1200 mm
- Type of light: Infrared light, wavelength 850 nm
- Light source: LED
- Light spot size: Ø 22 mm at 700 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max.: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: 5-wire cable, 5 m length, PVC insulation
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PMMA
- Relay switching cycles min.: 100,000 cycles at 3 A
- EMC standards: EN 60947-5-2, EN 61000-6-3
- Certifications: EU, UK, ACMA, Moroccan declarations of conformity, China-RoHS, CCC, cULus, Photobiological safety DIN EN 62471
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared LED light source
- Sensing range from 20 mm to 1200 mm
- Potentiometer adjustment with 5 turns
- Relay output with SPDT electrically isolated switching
- High protection rating of IP67 for harsh environments
- Wide supply voltage range from 24 V AC/DC to 240 V AC/DC
- Fast response time of ≤ 10 ms and switching frequency of 20 Hz
- Mounting bracket included for easy installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB10-R9822 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
