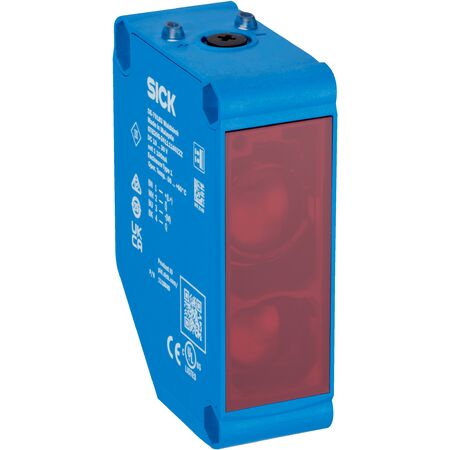

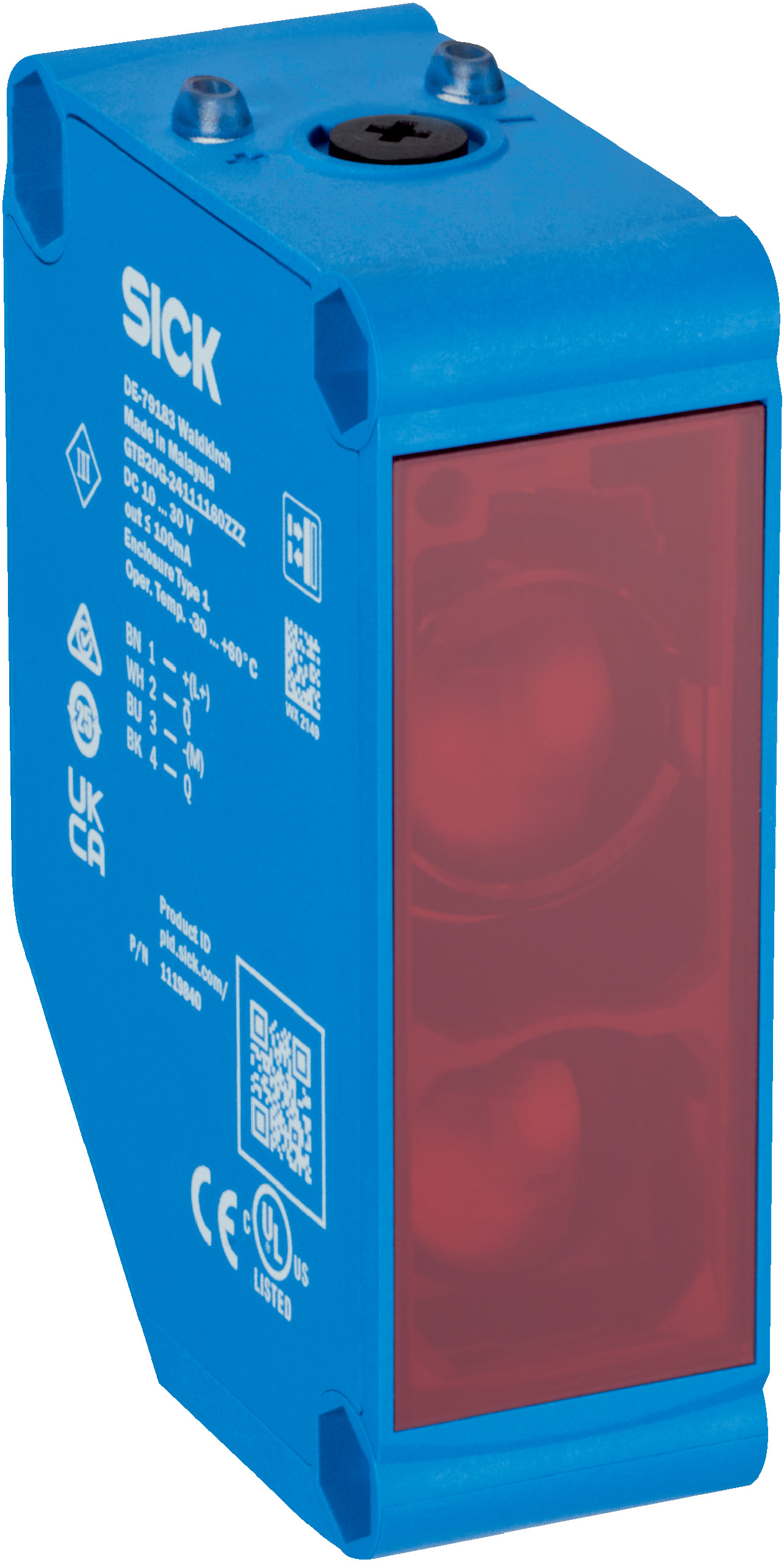

Photoelectric Proximity Sensor GTB20G-24111160ZZZ | Adjustable Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB20G-24111160ZZZ is designed for industrial automation, featuring an adjustable sensing range from 0.1 m to 3 m and a robust IP67 rated housing for dust and water protection. With a fast response time of ≤ 1.67 ms and high immunity to ambient light, this sensor is perfect for object detection in material handling and packaging systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0.005 m to 3 m
- Adjustable switching threshold for background suppression: 0.1 m to 3 m
- Light source: Visible red LED, wavelength 630 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Response time: ≤ 1.67 ms
- Switching frequency: 300 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output type: 2 complementary push-pull outputs (PNP/NPN)
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Housing material: Plastic ABS, front screen PMMA
- Connection: Male M12, 4-pin connector
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.1 m to 3 m
- Visible red LED light source with rectangular light spot
- High immunity to ambient light up to 20,000 lx
- IP67 rated housing for dust and water protection
- Short response time of ≤ 1.67 ms and switching frequency of 300 Hz
- Dual complementary push-pull outputs (PNP/NPN)
- Robust plastic ABS housing with PMMA front screen
- Operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB20G-24111160ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
