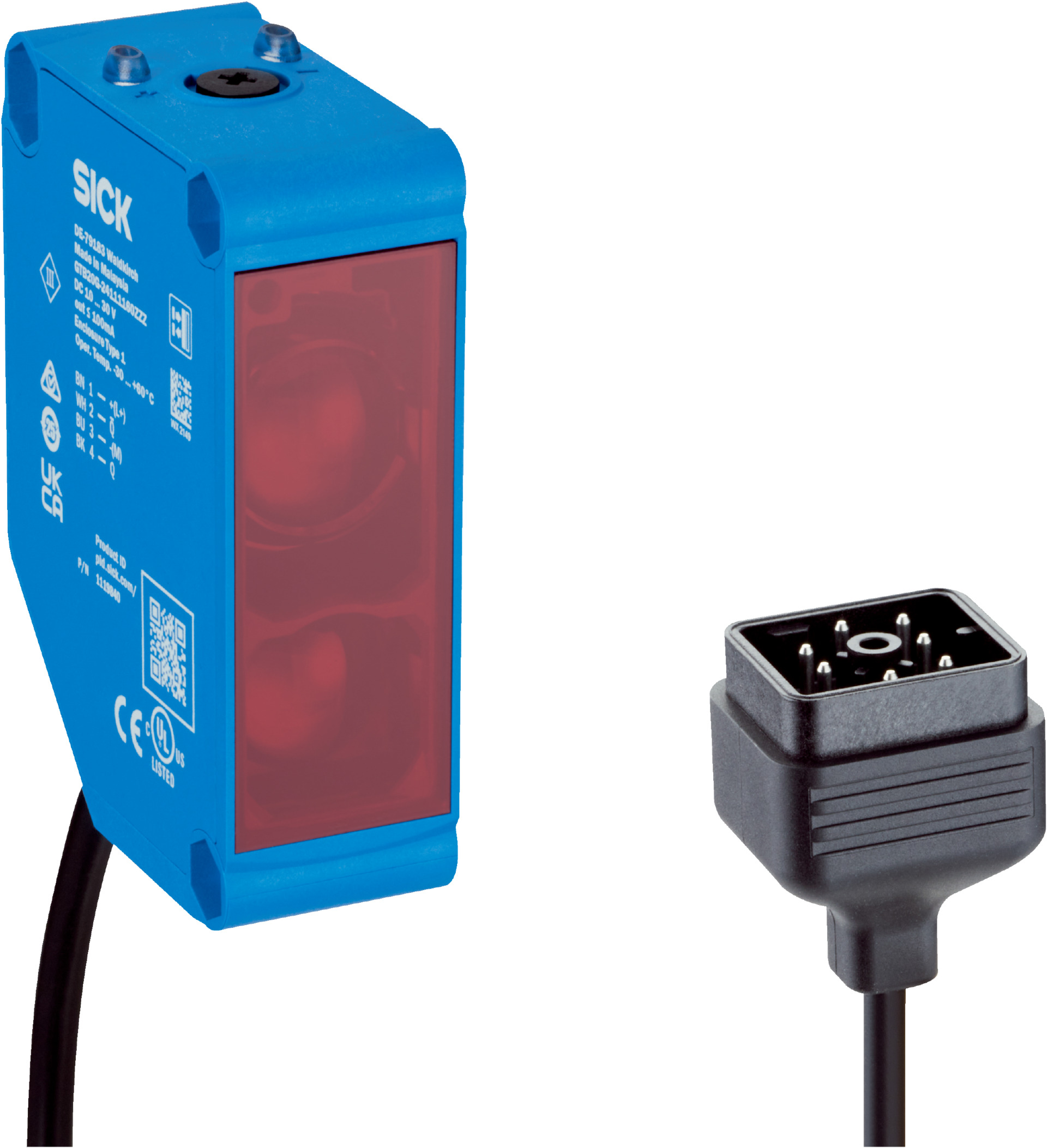

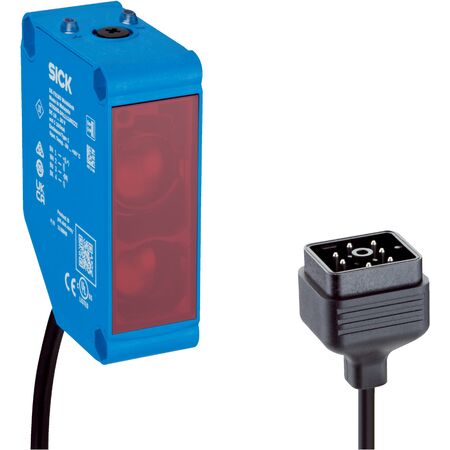

Photoelectric Proximity Sensor GTB20G-3CSD1160ZZZ | Adjustable Sensing Range | IP65 Rated | by SICK
The GTB20G-3CSD1160ZZZ photoelectric proximity sensor is designed for industrial automation, featuring an adjustable sensing range from 0.1 m to 3 m and a visible red LED light source. With an IP65 rating, it’s perfect for harsh environments, ensuring reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 0.005 m minimum, 3 m maximum
- Adjustable switching threshold: 0.1 m to 3 m
- Light source: Visible red LED, wavelength 630 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Output: 2 complementary relay outputs (SPDT), electrically isolated
- Output current max: 4 A at 250 V AC, 4 A at 24 V DC
- Protection class: II
- Enclosure rating: IP65
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.155 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.1 m to 3 m
- Visible red LED light source with 630 nm wavelength
- Rectangular light spot with Ø 28 mm at 500 mm distance
- Two complementary relay outputs (SPDT) with light/dark switching
- High protection rating IP65 suitable for harsh environments
- Operating temperature range from -30 °C to +60 °C
- LED indicators for power and object detection status
- Robust plastic ABS housing with PMMA front screen
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB20G-3CSD1160ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
