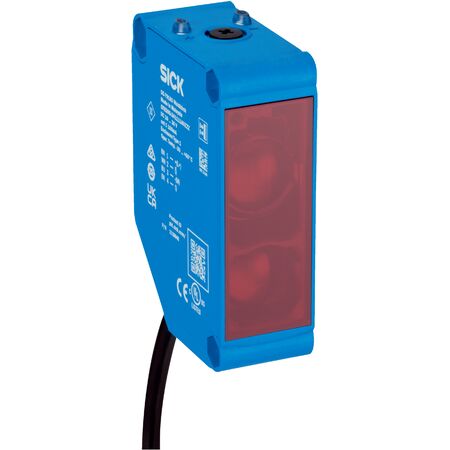

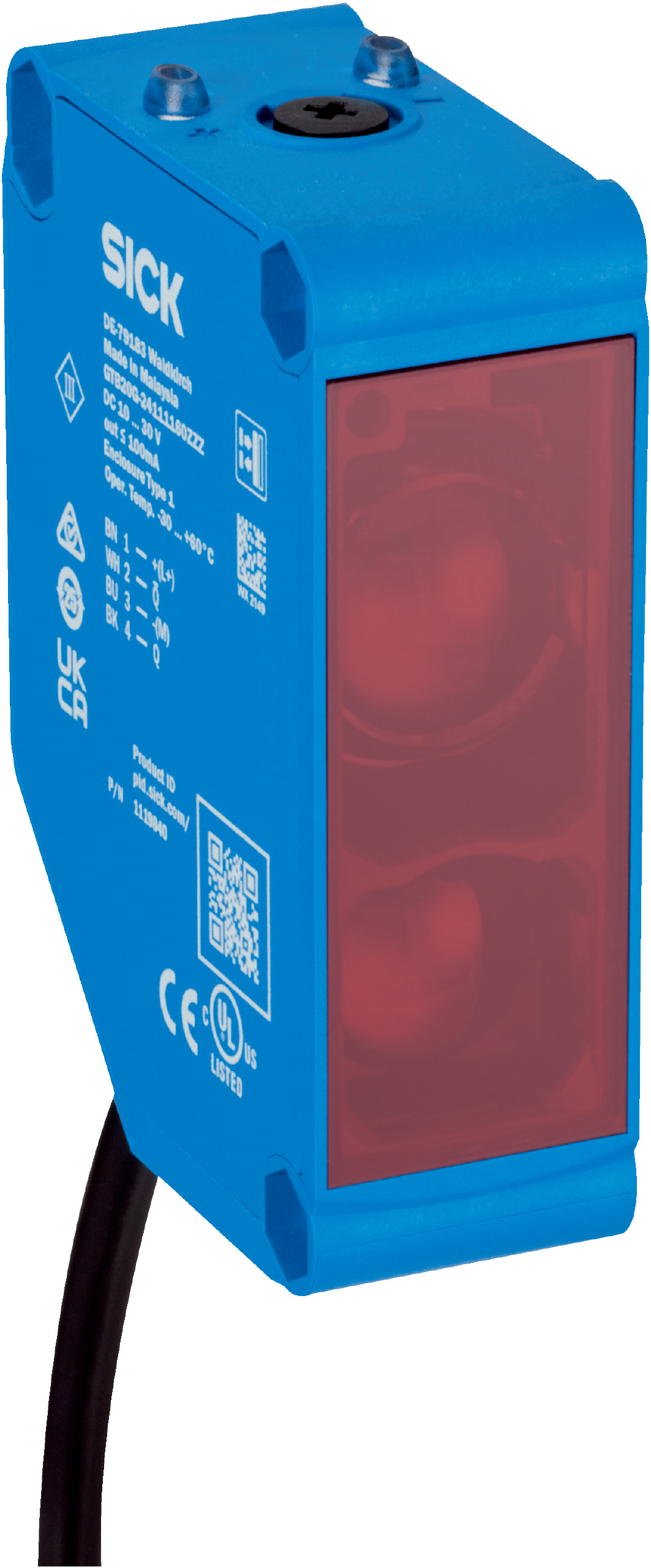

Photoelectric Proximity Sensor GTB20M-1IM11160ZZZ | Adjustable Sensing Range | IP67 Rated | by SICK
The GTB20M-1IM11160ZZZ photoelectric proximity sensor is designed for industrial automation, featuring an adjustable sensing range from 0.005 m to 3 m and an infrared LED light source. With an IP67 rating, it withstands harsh environments, making it ideal for object detection in manufacturing lines and material handling systems. Its robust design ensures high accuracy and reliability, perfect for safety and presence detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 0.005 m to 3 m adjustable
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Response time: ≤ 1.67 ms
- Switching frequency: 300 Hz
- Output type: 2 complementary solid state relay outputs
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 50 mA at 24 V
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.1 m to 3 m
- Infrared LED light source with rectangular light spot
- High accuracy with minimum distance of 200 mm from background
- LED indicators for power and object detection status
- Robust plastic ABS housing with IP67 rating for harsh environments
- Wide operating temperature range from -30 °C to +60 °C
- High shock and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and presence detection in manufacturing lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB20M-1IM11160ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
